Tree grates are metal or plastic frames that are placed around the base of trees in paved areas, such as sidewalks or plazas. They serve a number of purposes, including protecting the tree roots and trunk from damage, providing a clear boundary around the tree to protect it from foot traffic, and providing a surface for pedestrians to walk on. Tree grates can also be decorative, and are often used to complement the design of the surrounding pavement.

The most common type of tree grate is made from steel, aluminum, or cast iron. These materials are durable and able to withstand heavy foot traffic. They also offer a wide range of design options, from simple, functional designs to more ornate and decorative styles.

Tree grates are typically installed around the base of the tree, but they can also be installed around trees that are planted in raised planters. They are usually secured to the ground with anchor bolts, which keep the grate in place and prevent it from shifting.

When designing tree grates, it is important to consider the size of the tree and the surrounding pavement. Tree grates should be large enough to accommodate the tree’s root ball, but they should not be so large that they impede the flow of foot traffic. Additionally, the design of the tree grate should complement the surrounding pavement and blend in with the overall aesthetic of the area.

Tree grates are generally used in urban areas where the tree roots are at risk of damage from heavy foot traffic and machinery, they also help to keep tree well-irrigated, protected, and maintain a good aesthetic. Also tree grates provides a way for a person with disability to access tree and still preserving the tree root.

Image of tree gratings in paved areas detail and downloadable (in DWG) link below

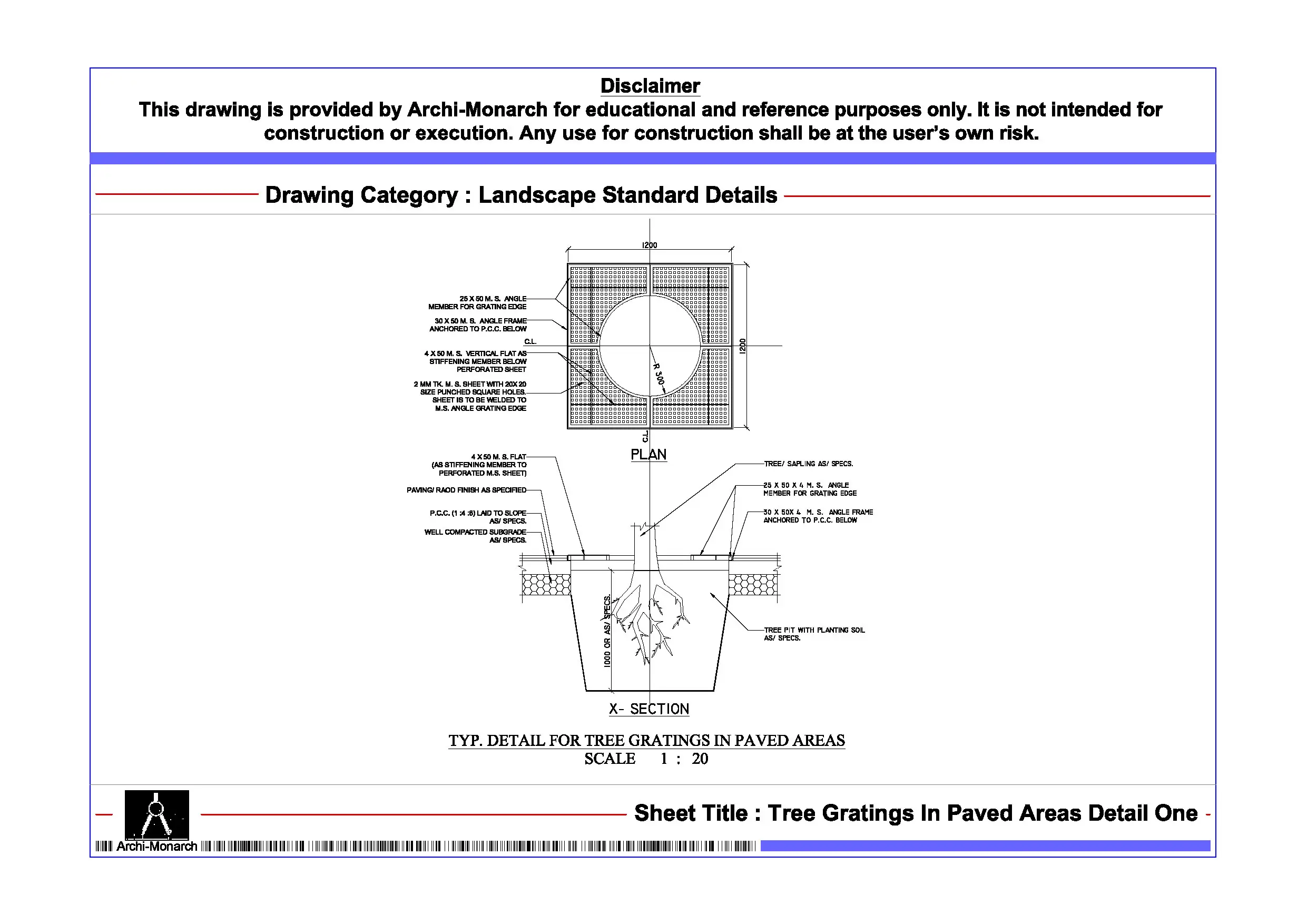

Tree gratings in paved areas detail drawing – 1

A detail drawing for tree grates in paved areas would typically include the following information:

  1. Dimensions: The drawing should show the overall dimensions of the tree grate, including the width, length, and height. It should also show the dimensions of the individual grate sections, if the grate is composed of multiple pieces.
  2. Materials: The drawing should specify the type of material used for the tree grate, such as steel, aluminum, or cast iron. It should also specify the finish of the grate, such as galvanized, painted, or powder-coated.
  3. Anchoring: The drawing should show how the tree grate is anchored to the ground, including the type of anchor bolts or other fasteners used, and their locations.
  4. Drainage: The drawing should show how water is drained from the tree grate, such as through openings in the grate or through a drainage channel around the perimeter of the grate.
  5. Installation: The drawing should show how the tree grate is installed, including the installation sequence, any necessary equipment or tools, and any special requirements for the installation, such as leveling or compacting of the surrounding surface.
  6. Tree well: The drawing should show the tree well dimension, It’s shape, tree protection system like root barrier, drainage system.
  7. Tree size and location: The drawing should show the location of the tree, the diameter of the tree trunk, and the approximate size of the root ball to ensure the grate is the right size and shape.
  8. Accessibility: the drawing should show how the grate design can make a provision for easy access to the tree by person with disabilities

It’s important to note that the detail drawings for tree grates would vary depending on the specific project and design requirements. A professional architect or landscape architect would be able to provide more accurate and detailed drawings based on the project’s specific needs.

Our tips to help you improve your architectural tree gratings in paved areas detailing.
