In architecture, water body waterproofing refers to the specialized techniques and materials used to prevent water leakage and seepage in structures that are designed to hold or be in contact with water, such as swimming pools, fountains, artificial lakes, water tanks, and ponds.
Effective waterproofing in these applications is crucial to maintain the structural integrity and longevity of the water body. It involves the use of waterproof membranes, sealants, concrete additives, and protective coatings to ensure that water does not penetrate through the walls or base of the structure.
Proper detailing, joint treatment, and surface preparation are essential steps in the process. Without adequate waterproofing, water bodies are prone to leakage, which can lead to structural damage, increased maintenance costs, and water wastage. Therefore, water body waterproofing is a critical aspect of sustainable and durable architectural design.
If you want to know about the working drawing or boundary wall detail or gate detail, please click the link.
Image of Water body waterproofing detail and downloadable (in DWG) link below

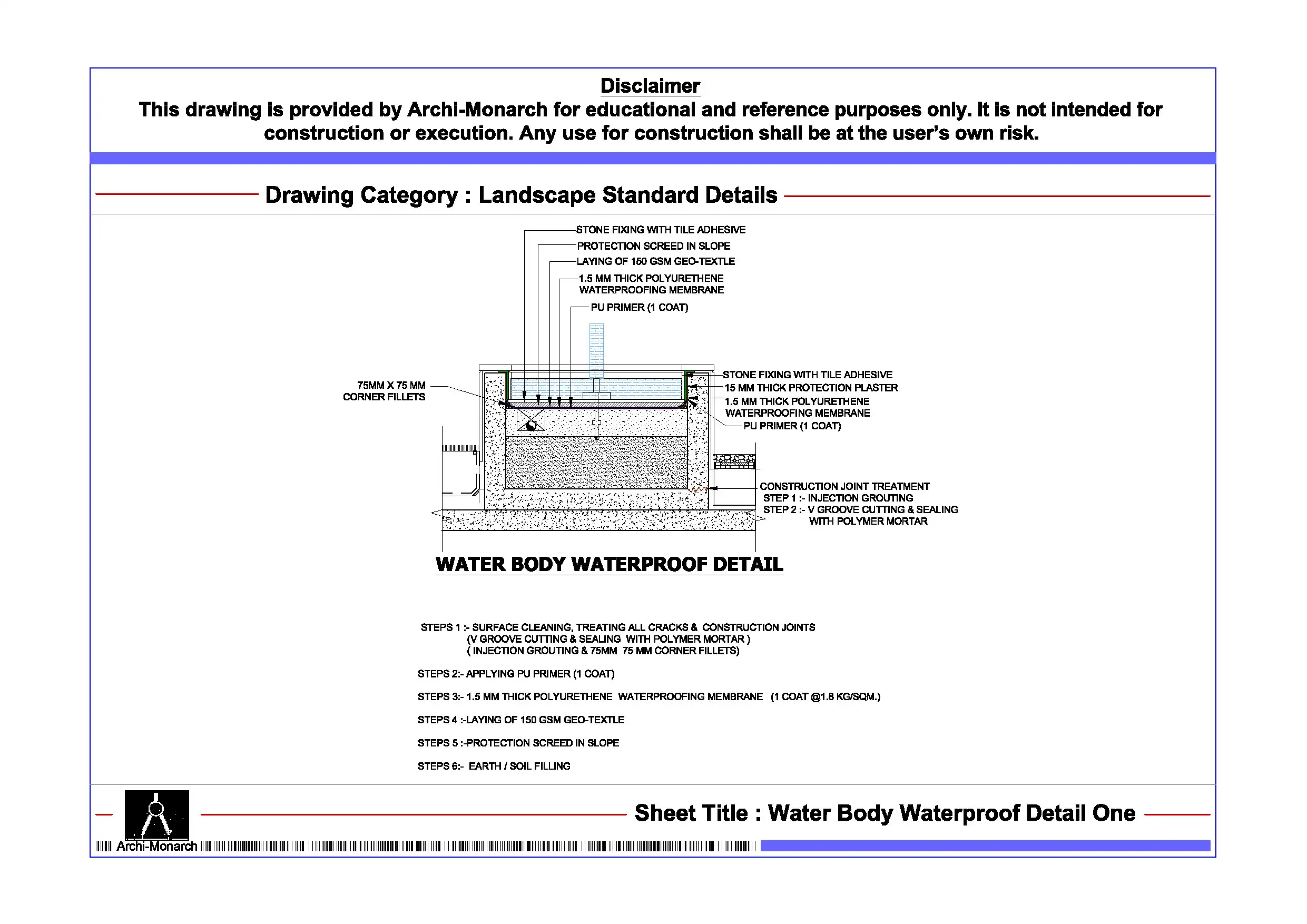

Water body waterproofing detail drawing – 1
In construction, a water body waterproofing detail drawing is a technical representation that outlines the specific layers, materials, and junction treatments used to waterproof structures that retain water—such as swimming pools, artificial ponds, water features, or tanks. These drawings are crucial for ensuring proper execution on-site and for preventing water leakage or seepage over time.
Key Elements in a Waterproofing Detail Drawing for Water Bodies:
Structural Base:
- Typically reinforced concrete with a smooth finish.
- Sloped slightly for drainage where applicable.
Surface Preparation:
- Cleaning, removing dust and laitance, and applying a primer or bonding agent if needed.
Waterproofing Layer(s):
- Membrane Waterproofing: Often shown as liquid-applied membranes (e.g., PU, acrylic) or sheet membranes (e.g., PVC, HDPE).
- Cementitious Waterproofing: Rigid or flexible types depending on movement and exposure.
Protective Screed or Plaster:
- Sometimes added over waterproofing to protect the membrane from damage during backfilling or tiling.
Expansion Joints and Construction Joints:
- Shown with water stops (PVC or bentonite-based) and sealant details.
- Critical in large or segmented water bodies.
Pipe Penetrations and Fixtures:
- Detailed with collar waterproofing or puddle flanges to prevent leakage at entry/exit points.
- Tile or Finish Layer (if applicable):
- Ceramic, stone, or mosaic tile fixed with waterproof adhesive and grouted properly.
Drainage Layer and Weep Holes (if needed):
- Especially for structures like planter boxes or elevated water features.
Purpose of the Drawing:
- To communicate the correct sequence of layers and material specifications.
- To ensure all joints, corners, and penetrations are properly detailed.
- To help contractors execute waterproofing systems in line with architectural and structural intent.
