The Wall Planter Detail provides a professionally prepared architectural standard drawing set in DWG format for educational and reference purposes. Wall planters are widely used in residential, commercial, and landscape-integrated interiors to introduce greenery while optimizing space. Designers must plan wall planters carefully to ensure structural support, proper drainage, and long-term durability. Therefore, architecture students and drafting professionals must understand wall planter detailing to design sustainable and visually appealing built environments.

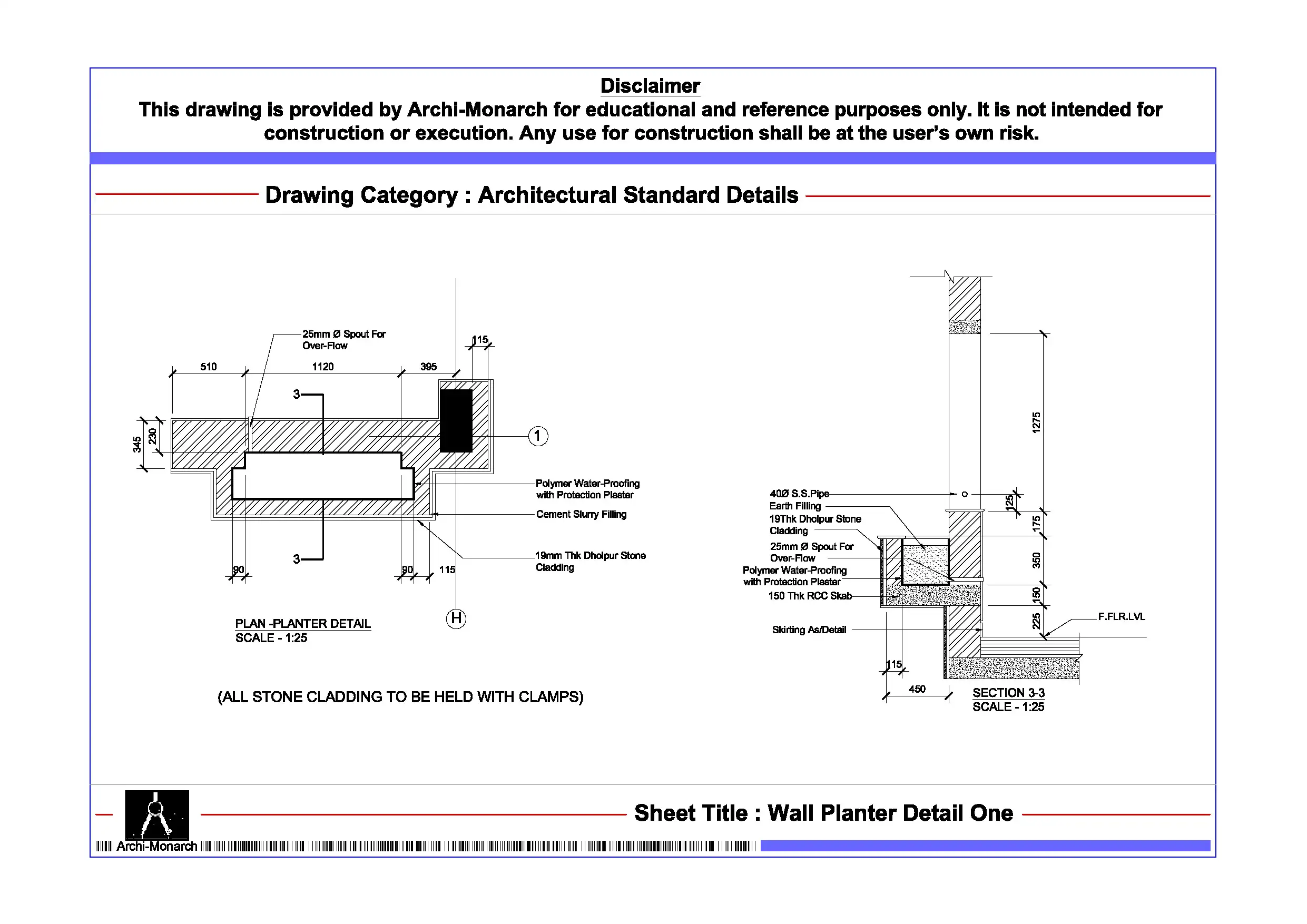

This architectural CAD package clearly presents wall planter design through detailed drawings. It includes sectional details, elevations, and construction-specific information in a structured and coordinated format. The drawing set explains planter dimensions, depth, and positioning on walls or façades. It also highlights key components such as planter boxes, support brackets or framing, waterproofing layers, drainage outlets, and soil retention systems. In addition, it covers material finishes, protective coatings, and installation techniques that prevent water leakage and structural damage. As a result, users gain practical insight into designing wall planters that enhance aesthetics, support plant health, and maintain building integrity.
Moreover, the drawings follow professional architectural and drafting standards. They use accurate dimensions, clear line hierarchy, and well-organized annotations. Consequently, students can easily interpret the drawings and apply similar detailing techniques in academic projects and CAD exercises. Users can edit the files freely to modify planter sizes, adjust fixing methods, or refine detailing to explore different design solutions.
The DWG format ensures seamless compatibility with AutoCAD and other commonly used CAD software. Therefore, users can directly integrate these drawings into project workflows, presentations, and documentation sets without additional conversion. In addition, the drawing set supports coordination between architectural elements, landscape features, and waterproofing systems, which improves drafting clarity and technical accuracy.
Key Highlights:
- Wall planter detail drawing in DWG format
- Intended strictly for educational and reference use
- Includes sectional and construction details
- Shows planter dimensions, wall fixing, and support systems
- Covers waterproofing, drainage, materials, and finishing techniques
- Prepared using professional architectural and drafting standards
- Fully editable and AutoCAD-compatible CAD files
- Suitable for architecture students and drafting learners
This drawing set does not serve as a construction-ready document. Always consult qualified architects and consultants before applying any detail in real projects.
