WALL CLADDING DETAIL ONE

If you want to know about the interior detail or gate detail or landscape detail, please click the link.


Wall cladding is the application of one material over another to provide a skin or layer. In architecture, cladding is used to provide a degree of thermal insulation and weather resistance, and to improve the appearance of buildings.

Cladding can be made from a variety of materials including wood, metal, brick, vinyl, and composite materials that can include aluminium, wood, blends of cement and recycled polystyrene, bamboo, and straw.

The type of cladding used in a building project will depend on the specific design and performance requirements, as well as the budget.

Image of wall cladding detail and downloadable (in DWG) link below

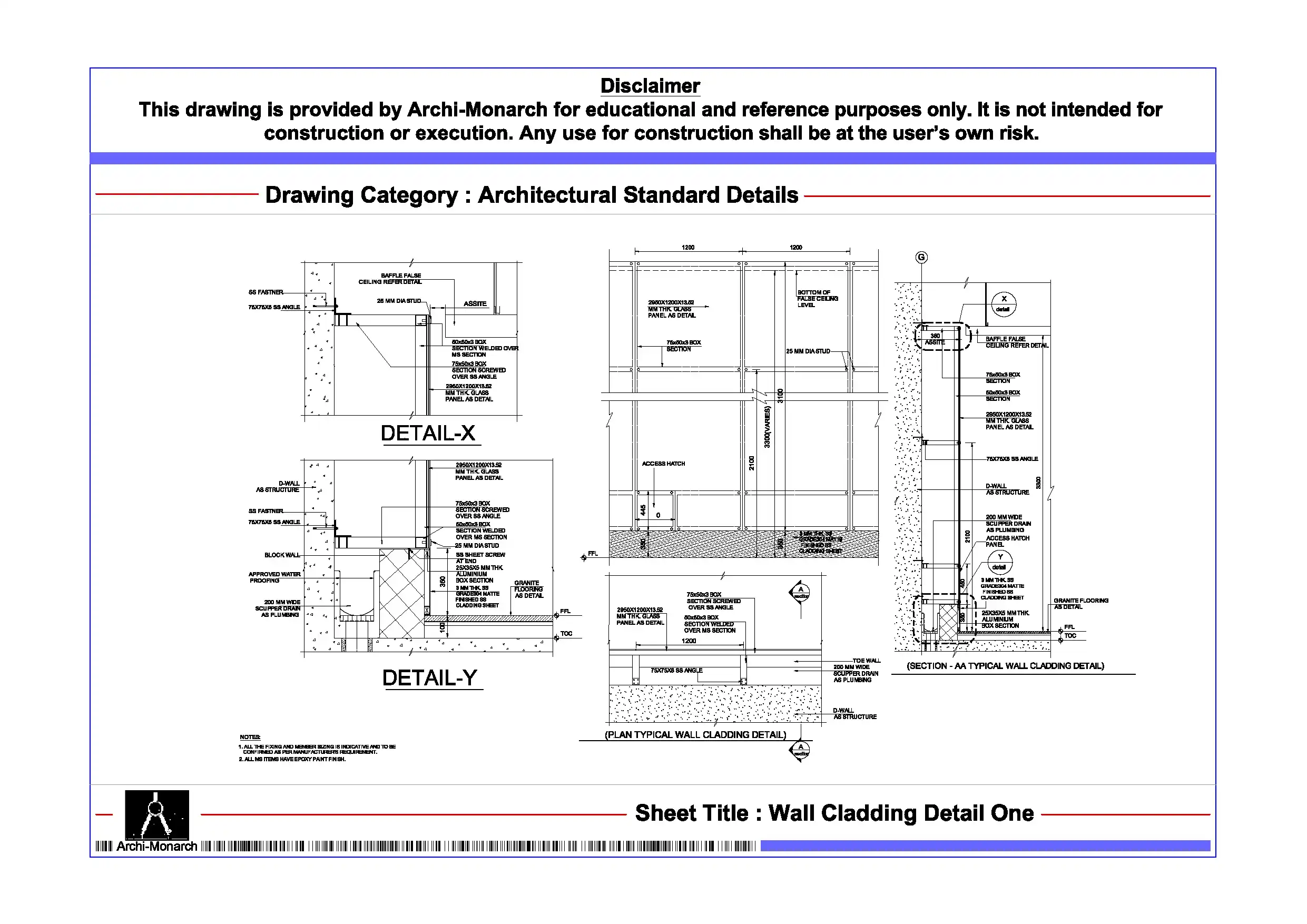

WALL CLADDING DETAIL ONE

Wall cladding detail drawing – 1

A wall cladding detail drawing is a technical drawing that illustrates the design and construction of a cladding system for a building. It typically includes information such as the type and thickness of the cladding material, the method of attachment, the type of insulation and vapor barrier to be used, and any flashing and trim details.

The drawing may also include information on the type of substrate the cladding will be applied to, as well as details on the interface between the cladding and other building elements, such as windows and doors. The drawing can also include the material specification and the finishing details of the wall cladding.

It is usually created by the architect or building designer, and is used by the contractor to guide the installation of the cladding system.

In addition to the information mentioned earlier, a wall cladding detail drawing may also include sections and elevations of the cladding system, to show how the cladding will look and function in different areas of the building.

These sections and elevations may include details such as the location of the cladding relative to the structural elements of the building, the type of joints and sealants used, and any special considerations for areas such as corners or changes in plane.

The drawing may also include notes and callouts to indicate any specific installation requirements, such as the need for certain types of fasteners or adhesives, or the need to maintain a certain level of ventilation behind the cladding. It may also include details on the maintenance and cleaning requirements of the cladding system.

It’s important to note that the detail drawing is just one part of the overall construction documents, and should be reviewed in conjunction with the other drawings and specifications to ensure that the cladding system is properly integrated with the other building systems and meets all relevant building codes and standards.


Our tips to help you improve your architectural wall cladding detailing.



Purchase (Wall cladding detail) link below for download
