A toilet water supply layout plan is a diagram that shows the location and routing of pipes that supply water to toilets. It typically includes the main water supply line, shut-off valves, and branch lines that lead to individual toilets.
The plan should also indicate the location of the main sewer line, as well as any vent pipes that are required for the proper functioning of the plumbing system.
The layout plan is important for ensuring proper installation and function of the toilet water supply system. It should be created by a plumber or other qualified professional with experience in plumbing design.
Image of toilet waters supply layout detail and downloadable (in DWG) link below

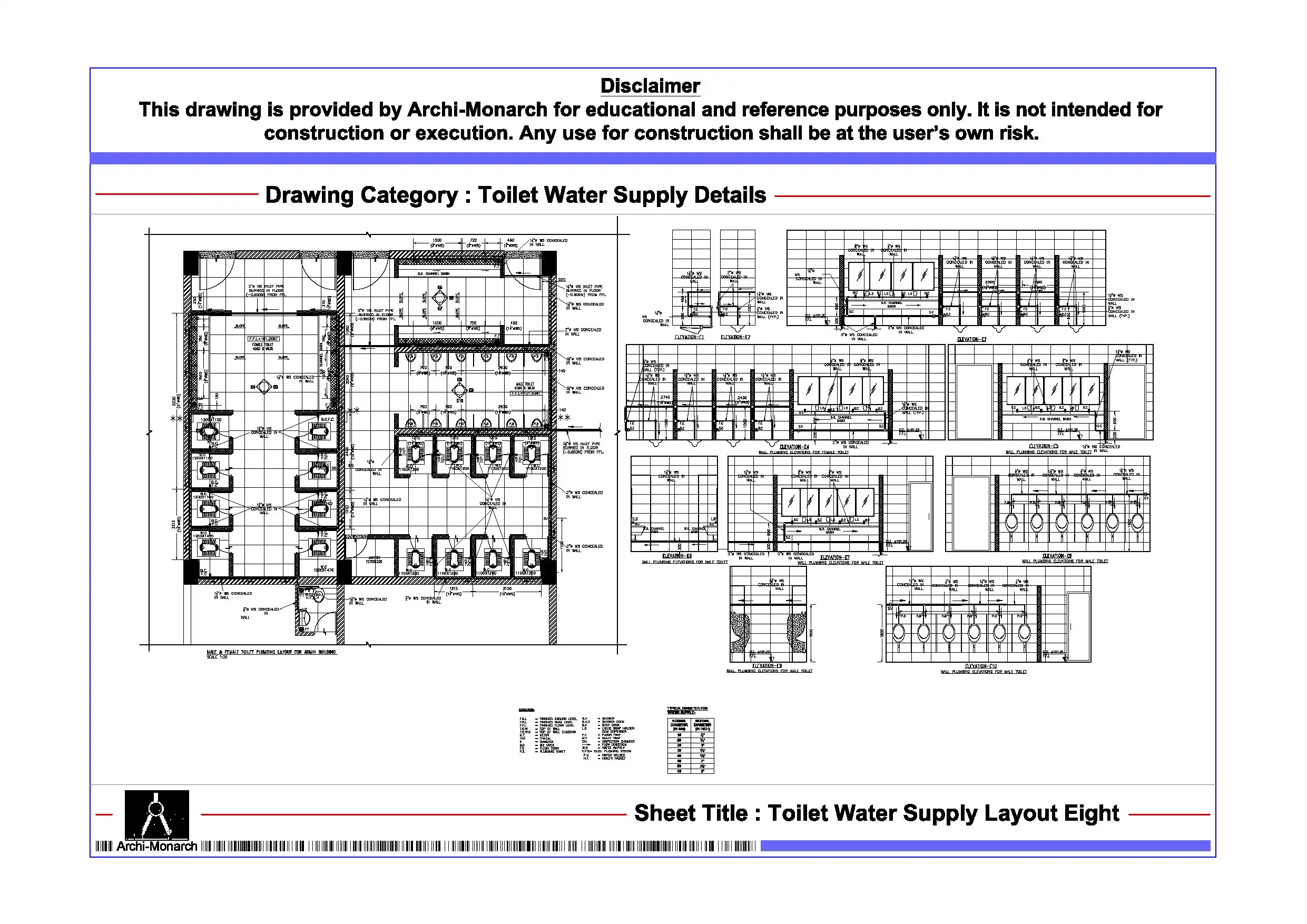

Toilet waters supply layout detail drawing – 8
A toilet water supply layout detail drawing is a detailed diagram that shows the specific components and connections of a toilet water supply system. It includes the main water supply line, shut-off valves, branch lines, and individual fixtures such as toilets and urinals.
The drawing should also show the location of the main sewer line and vent pipes, as well as any valves, traps, and other devices that are used to control the flow of water and waste. The layout detail drawing is an important tool for ensuring that the toilet water supply system is installed correctly and functions properly.
It should be created by a plumber or other qualified professional with experience in plumbing design and should include all the necessary details such as pipe size, material and fittings.
In addition to the above information, a toilet water supply layout detail drawing should also include the following:
- Elevations: Elevation drawings show the vertical layout of the plumbing system, including the location of fixtures and the height of pipes.
- Isometrics: Isometric drawings provide a three-dimensional view of the plumbing system, showing the layout and connections of pipes, valves, and fixtures in relation to each other.
- Bill of materials: A bill of materials lists all the components and materials that are required for the plumbing system, including pipe sizes, fittings, valves, and other hardware.
- Schedules: Schedules provide detailed information about specific components of the plumbing system, such as pipe sizes, valve types, and fixture models.
- Flow diagrams: Flow diagrams show the flow of water and waste through the plumbing system, including the direction of flow, pipe sizes, and valve locations.
- Annotation: The drawing should be accompanied by annotations and notes which will provide additional information such as pipe sizes, materials and ratings.
It’s important to note that all the detail mentioned above is dependent on the complexity of the project and the client requirements.
