The Terrace Waterproofing Detail provides a professionally prepared architectural standard drawing set in DWG format for educational and reference purposes. Terrace waterproofing is a critical aspect of building design, where it protects the structure from water leakage, moisture ingress, and long-term deterioration. Designers must carefully plan waterproofing systems to ensure proper slope, drainage, and effective sealing of joints and surfaces. Therefore, architecture students and drafting professionals must understand terrace waterproofing detailing to design durable and high-performance roof systems.

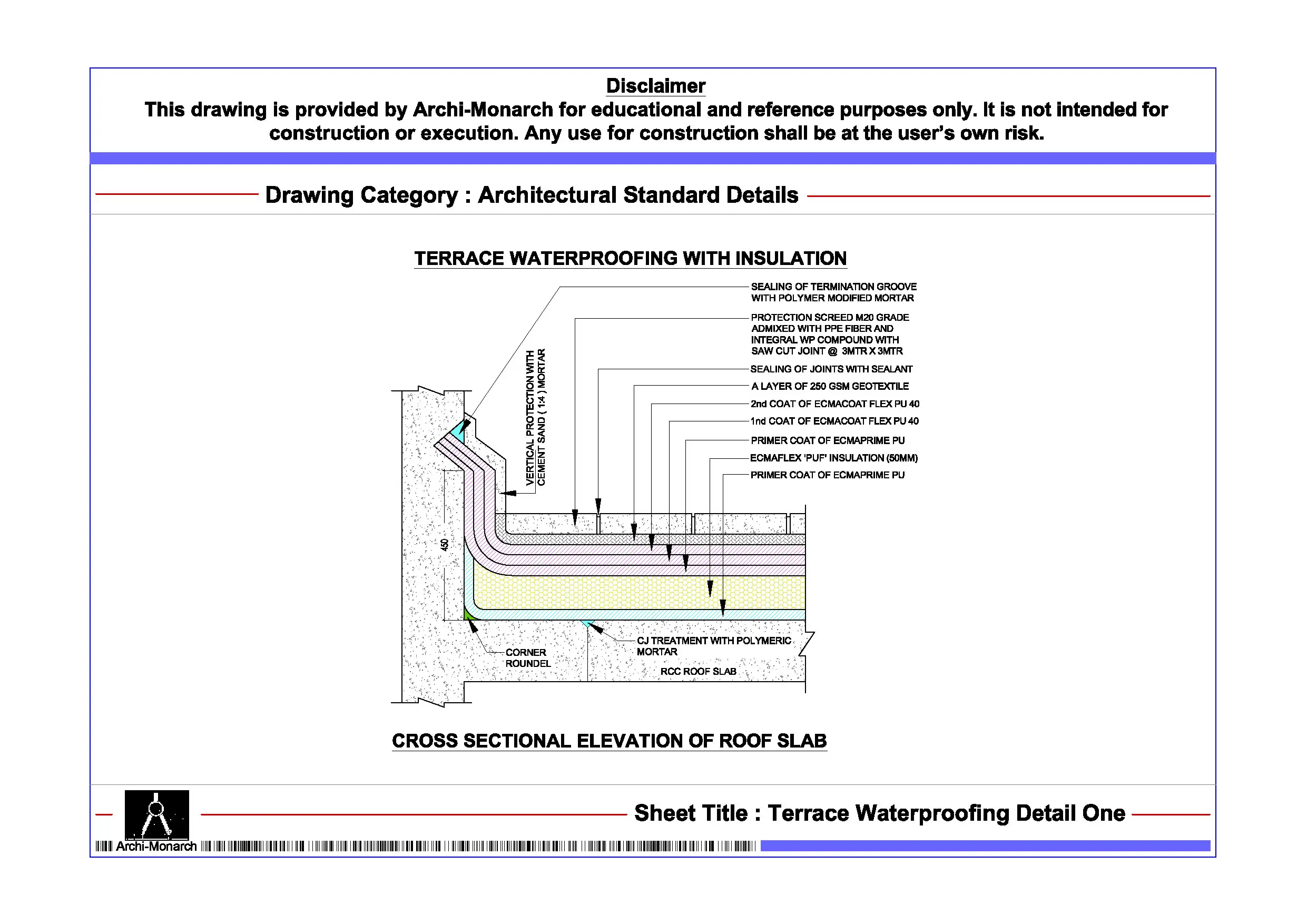

This architectural CAD package clearly presents terrace waterproofing design through detailed drawings. It includes sectional details, construction drawings, and material specifications in a structured and coordinated format. The drawing set explains layer buildup, slope formation, and integration with the structural slab. It also highlights key components such as waterproofing membranes, insulation layers, protective screeds, and finishing surfaces like tiles or brickbat coba. In addition, it covers drainage outlets, expansion joints, parapet junctions, and edge conditions that enhance performance and prevent water stagnation or leakage. As a result, users gain practical insight into designing terrace waterproofing systems that improve durability, thermal efficiency, and structural protection.
Moreover, the drawings follow professional architectural and drafting standards. They use accurate dimensions, clear line hierarchy, and well-organized annotations. Consequently, students can easily interpret the drawings and apply similar detailing techniques in academic projects and CAD exercises. Users can edit the files freely to modify slopes, adjust material layers, or refine detailing to explore different waterproofing solutions.
The DWG format ensures seamless compatibility with AutoCAD and other commonly used CAD software. Therefore, users can directly integrate these drawings into project workflows, presentations, and documentation sets without additional conversion. In addition, the drawing set supports coordination between roof systems, structural elements, and drainage planning, which improves drafting clarity and technical accuracy.
Key Highlights:
- Terrace waterproofing detail drawing in DWG format
- Intended strictly for educational and reference use
- Includes sectional and construction details
- Shows waterproofing layers, slope formation, and roof integration
- Covers membranes, insulation, drainage, and finishing techniques
- Prepared using professional architectural and drafting standards
- Fully editable and AutoCAD-compatible CAD files
- Suitable for architecture students and drafting learners
This drawing set does not serve as a construction-ready document. Always consult qualified architects and consultants before applying any detail in real projects.
