A road gully chamber is a type of drainage structure that is used to collect and convey stormwater runoff from a roadway or other paved surface. It is typically located at the edge of the roadway and consists of a chamber or pit that is connected to a network of underground pipes.

The chamber is typically large enough to hold a significant amount of water and is equipped with a grate or cover to prevent debris from entering the system. The water collected in the chamber is then conveyed through the underground pipes to a nearby watercourse or stormwater management facility, where it is treated or discharged.

Road gully chambers are an important component of urban infrastructure, as they help to prevent flooding and erosion, and ensure that water is properly managed during heavy rainfall events.

If you want to know about the kitchen detail or miscellaneous detail or water tank detail, please click the link.

Image of road gully chamber detail and downloadable (in DWG) link below

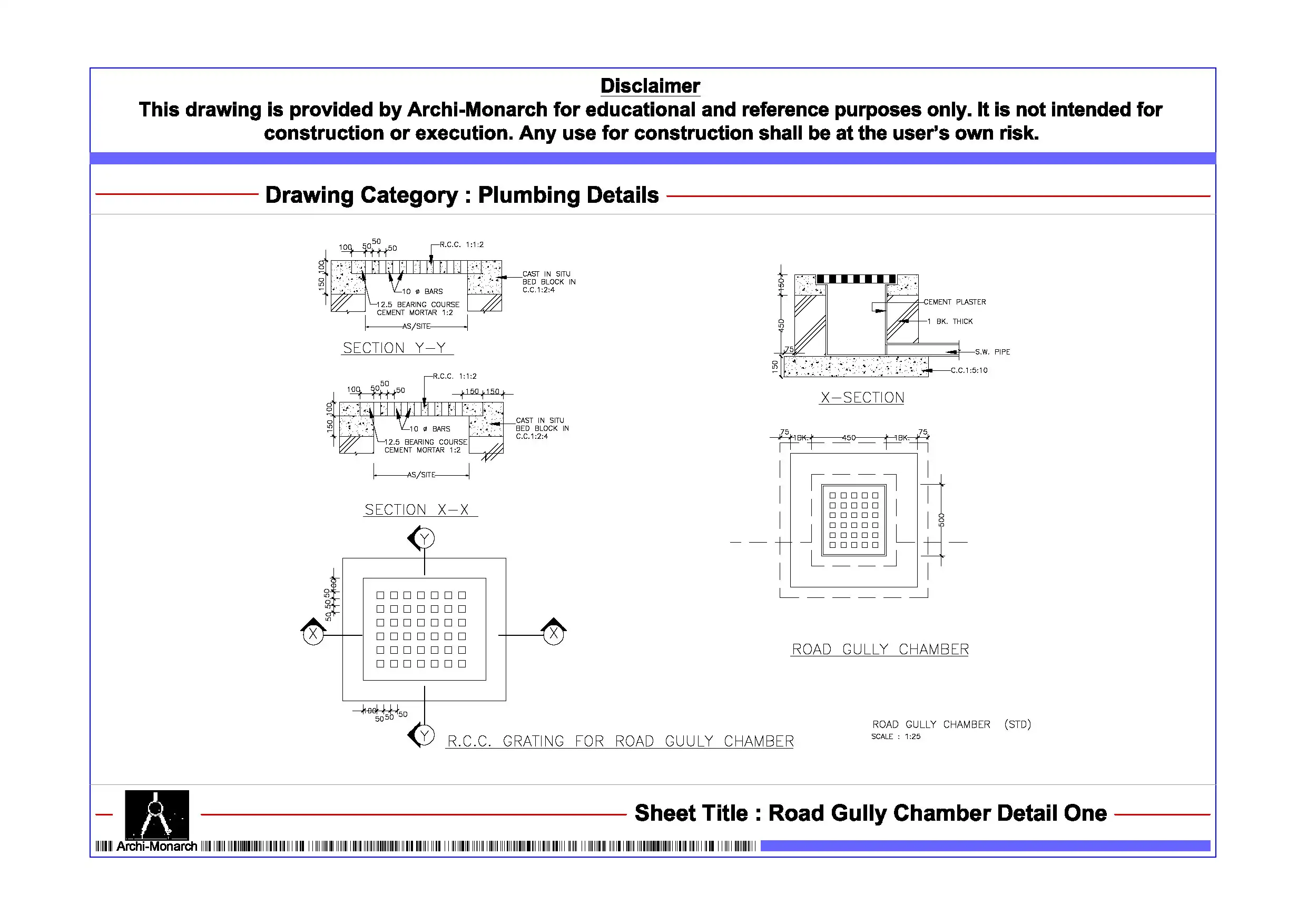

Road gully chamber detail drawing – 1

A road gully chamber is a small underground structure that is used to collect and channel stormwater runoff from the surface of a road. It is typically located in the gutter or verge of the road and consists of a chamber with a grate or other opening on the surface to allow water to flow into it, and a pipe or channel to carry the water away to a suitable drainage point.

A road gully chamber detail drawing is a technical drawing that shows the detailed construction and dimensions of a road gully chambers. It is typically used by engineers, contractors, and other professionals to understand the specific requirements and design of the chamber, and to ensure that it is installed correctly and functions as intended.

A typical road gully chambers detail drawing may include the following information:

  • Dimensions and layout of the chamber and grate
  • Materials and specifications for the chamber and grate
  • Detailed cross-section of the chamber and surrounding area
  • Location and dimensions of the inlet and outlet pipes
  • Any additional features or components, such as a silt trap or overflow system

It is important to follow the details and specifications shown on the drawing to ensure that the road gully chamber is properly installed and functions correctly.
