RAMP IN LANDSCAPE AREA DETAIL ONE

If you want to know about the submission drawing or toilet detail or miscellaneous detail, please click the link.


A ramp in a landscape area can refer to a sloped surface that allows for easy access to different levels of a garden or outdoor space. These ramps can be made of a variety of materials, such as wood, concrete, or stone, and can be designed to blend in with the surrounding landscape. Ramps can be useful for people with mobility issues, as well as for moving equipment and supplies in and out of the garden.

If you are considering adding a ramp to a landscape area, there are a few things to keep in mind. First, you’ll need to determine the slope of the ramp. A slope that is too steep can be difficult to navigate, while a slope that is too gradual may not be as functional. A slope of 1:12 is considered to be the maximum for most ramps and is considered easy for wheelchairs users.

You’ll also need to consider the width of the ramp. The minimum width for a ramp is 36 inches, this width allows enough space for wheelchairs or other mobility devices to pass. But you should consider a wider width if you anticipate heavy use or multiple users.

Material selection is also important when building a ramp in a landscape area. Materials that are slip-resistant and durable, such as concrete or pavers, are often recommended for outdoor ramps. However, wooden ramps can be constructed and painted with anti-slip paint for a good looking ramp that is easy to clean and maintain.

Finally, it’s important to make sure that the ramp is well-lit and has handrails for added safety and stability.

Overall, adding a ramp to a landscape area can provide greater accessibility and usability to the space while being a beautiful addition to the aesthetic and functional of the garden.

Image of ramp in a landscape area detail and downloadable (in DWG) link below

RAMP IN LANDSCAPE AREA DETAIL ONE

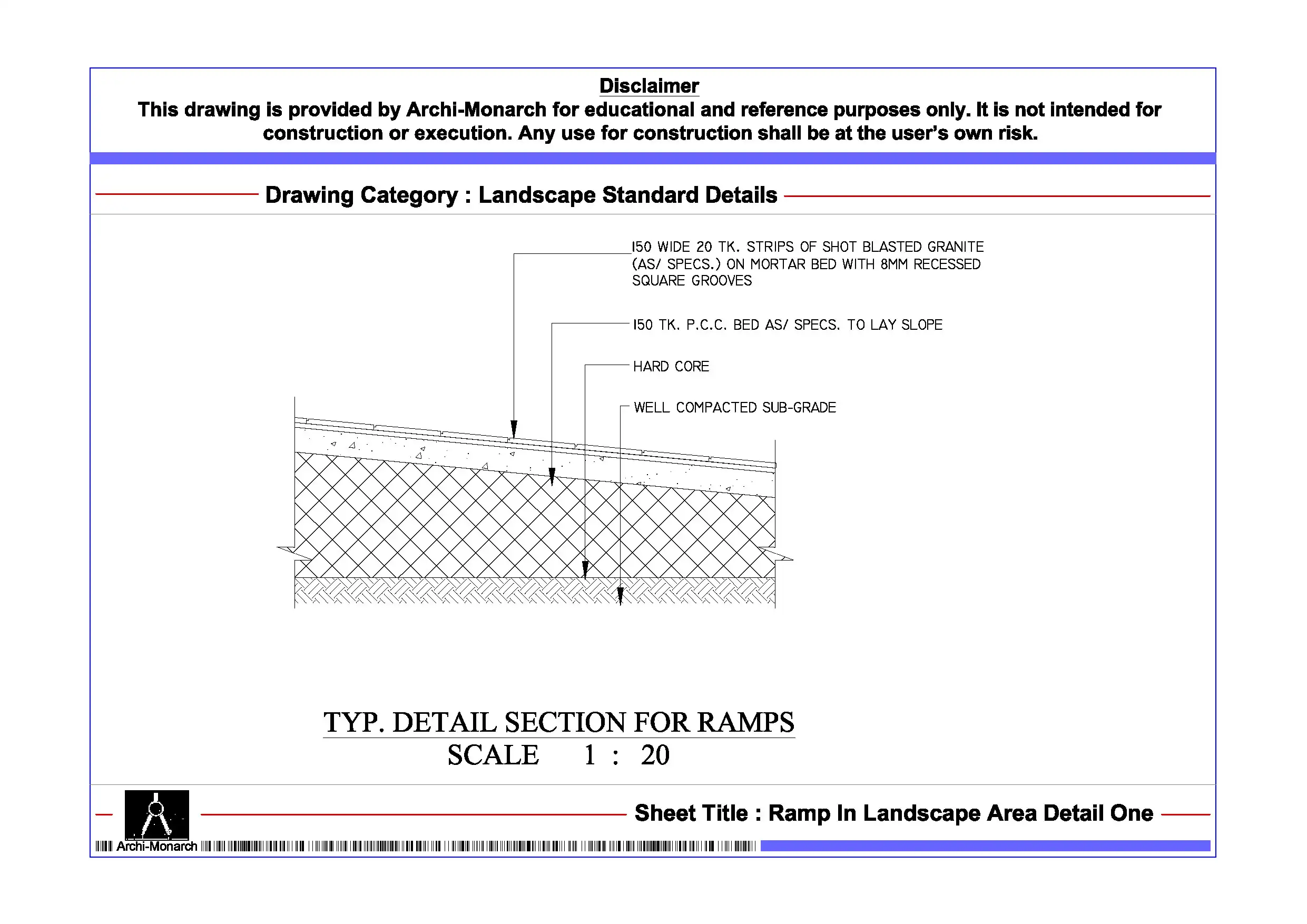

Ramp in a landscape area detail drawing – 1

A ramp detail drawing is a technical drawing that shows all the specific details and specifications of a ramp, including the dimensions, materials, and construction details.

A typical ramp detail drawing might include the following information:

  • Overall dimensions of the ramp, including the length, width, and slope
  • Location of the ramp in relation to other structures or features in the landscape
  • Type and thickness of the ramp surface material
  • Type and size of the supporting structure, such as posts or beams
  • Design details for any handrails or guardrails that are included
  • Specifications for any drainage or water management systems that are needed
  • Information on lighting and other safety features

It is important that a ramp detail drawing is clear, precise and accurate to provide a clear and easy understanding to the contractor or anyone else who will be building the ramp.

Keep in mind that if the ramp is for commercial or public use, the ramp must comply with the Americans with Disabilities Act (ADA) guidelines which are mandatory to follow.


Our tips to help you improve your architectural ramp in a landscape area detailing.
