Paving refers to the process of laying down a surface on a roadway, sidewalk, or other area. It is typically done with materials such as asphalt or concrete, and can be used to improve the safety, durability, and appearance of the area. Paving projects can range from small, residential driveways to large, commercial parking lots or highways.

In architecture, paving is often used as a functional and aesthetic element, serving both to provide a stable surface for foot traffic and to complement the overall design of a building or landscape.

Paving refers to the surface material used to cover the ground in outdoor spaces, such as walkways, patios, and driveways. Common types of paving materials include concrete, asphalt, brick, stone, and tile.

Paving’s can also be used to define different areas within a space, such as separating a patio from a lawn or indicating the main entrance to a building.

If you want to know about the staircase detail or ramp detail or landscape detail, please click the link.

Image of paving’s detail and downloadable (in DWG) link below

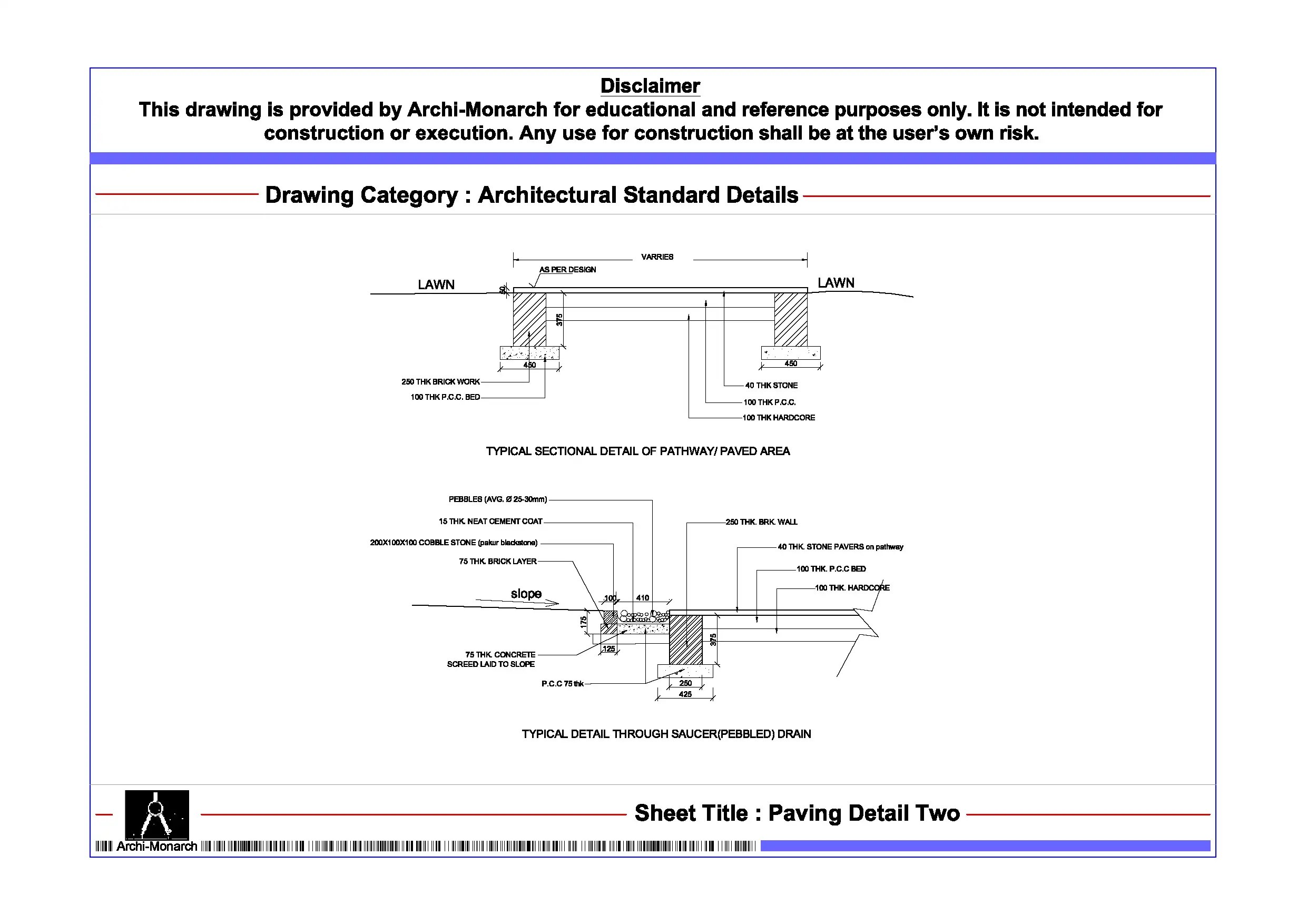

Paving’s detail drawing – 2

A paving’s detail drawing is a technical drawing that provides specific information about the construction and installation of paving materials in a particular area.

The drawing typically includes dimensions, elevations, cross-sections, and notes describing the type of paving material to be used, the method of installation, and any special considerations, such as drainage or slope requirements.

A paving’s detail drawing may also include information on the type of base material to be used, such as gravel or crushed stone, and the method of compaction. It may also show the location of any expansion joints, which are necessary to allow for movement in the paving due to temperature changes.

It’s important to note that the paving’s detail drawing is a part of the construction documents set, and it’s intended to be used as a guide for the contractor and subcontractors during the construction phase.

Our tips to help you improve your architectural paving detailing.

Purchase (Paving detail) link below for download
