In architecture, a niche is a shallow recess or hollow space in a wall, often designed to hold a statue, decorative object, or functional element such as shelving. The niche detail refers to the specific architectural and ornamental treatment of this recess, including its shape, size, depth, framing, and finishing materials.
Niches can be semicircular, rectangular, pointed, or even irregular, and may be framed with moldings, columns, arches, or decorative trims.
These details not only enhance the visual interest and depth of a wall surface but also reflect the architectural style of the building—be it classical, Gothic, Baroque, or modern. Niches are commonly found in both interior and exterior spaces, serving both aesthetic and practical purposes.
If you want to know about the submission drawing or lift lobby and atrium detail or standard detail, please click the link.
Image of Niche detail and downloadable (in DWG) link below

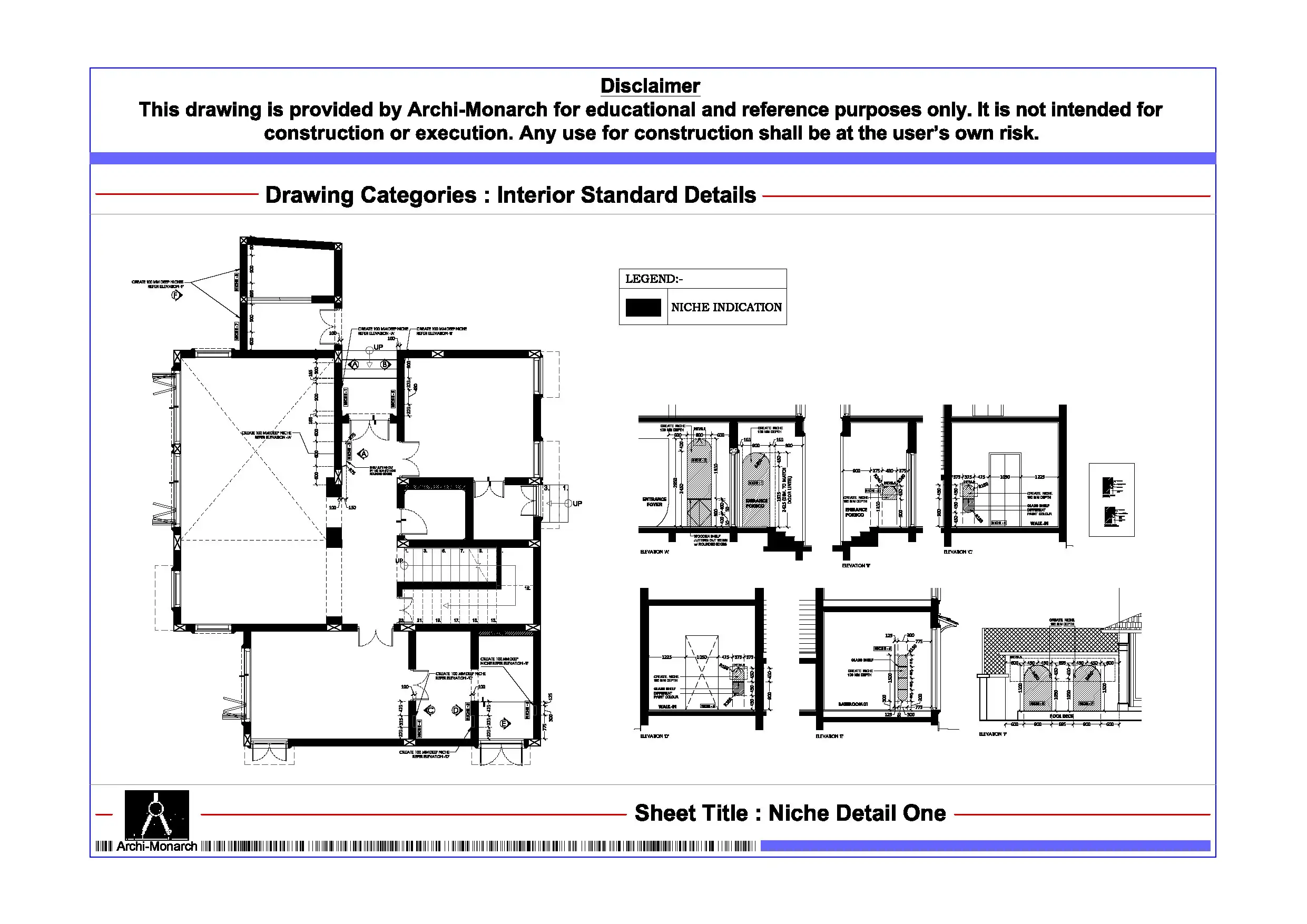

Niche detail drawing – 1
In construction, a niche detail drawing is a specialized technical drawing that provides comprehensive information on the design, dimensions, materials, and assembly methods for building a niche—a recessed space within a wall.
These details are essential for ensuring that the niche is not only visually consistent with the architectural design but also structurally sound and practical for its intended function.
The drawings typically include plan views, elevation views, cross-sections, and detailed annotations, often scaled at 1:10 or 1:5 for clarity.
Key elements such as dimensions (height, width, depth), finishes, edge treatments, reinforcement, waterproofing membranes (for wet areas), and lighting integration are precisely indicated.
The niche detail drawing also outlines how the recess fits within the overall wall system—whether it’s a partition wall with metal or wooden studs, a masonry wall, or a precast concrete panel. It may show fixing methods for cladding or shelving, coordination with plumbing and electrical systems (e.g., for LED lighting), and insulation or vapor barrier placement in exterior walls.
For interior niches, especially in bathrooms or kitchens, details like tile buildup layers, backer boards, and grout lines are shown to ensure proper installation and long-term durability.
These drawings serve as a communication bridge between the architect, interior designer, structural engineer, and contractor, ensuring that the design intent is translated accurately on-site.
Well-crafted niche detail drawings help avoid construction errors, support material estimation, and contribute to the overall aesthetic and functionality of the built environment.
Our tips to help you improve your architectural Niche detailing.
