MS (Mild Steel) tube fixing refers to the process of attaching or securing a tube made of mild steel to a structure or surface. The specific details of the fixing will depend on the application and the desired level of stability and support required.

The most common methods of fixing MS tubes include welding, bolting, and clamping. The use of brackets, flanges, and other hardware may also be necessary to ensure proper alignment and stability.

It is important to consult with a structural engineer or experienced professional to determine the appropriate method of fixing for a specific application.

If you want to know about the staircase detail or toilet detail or standard detail, please click the link.

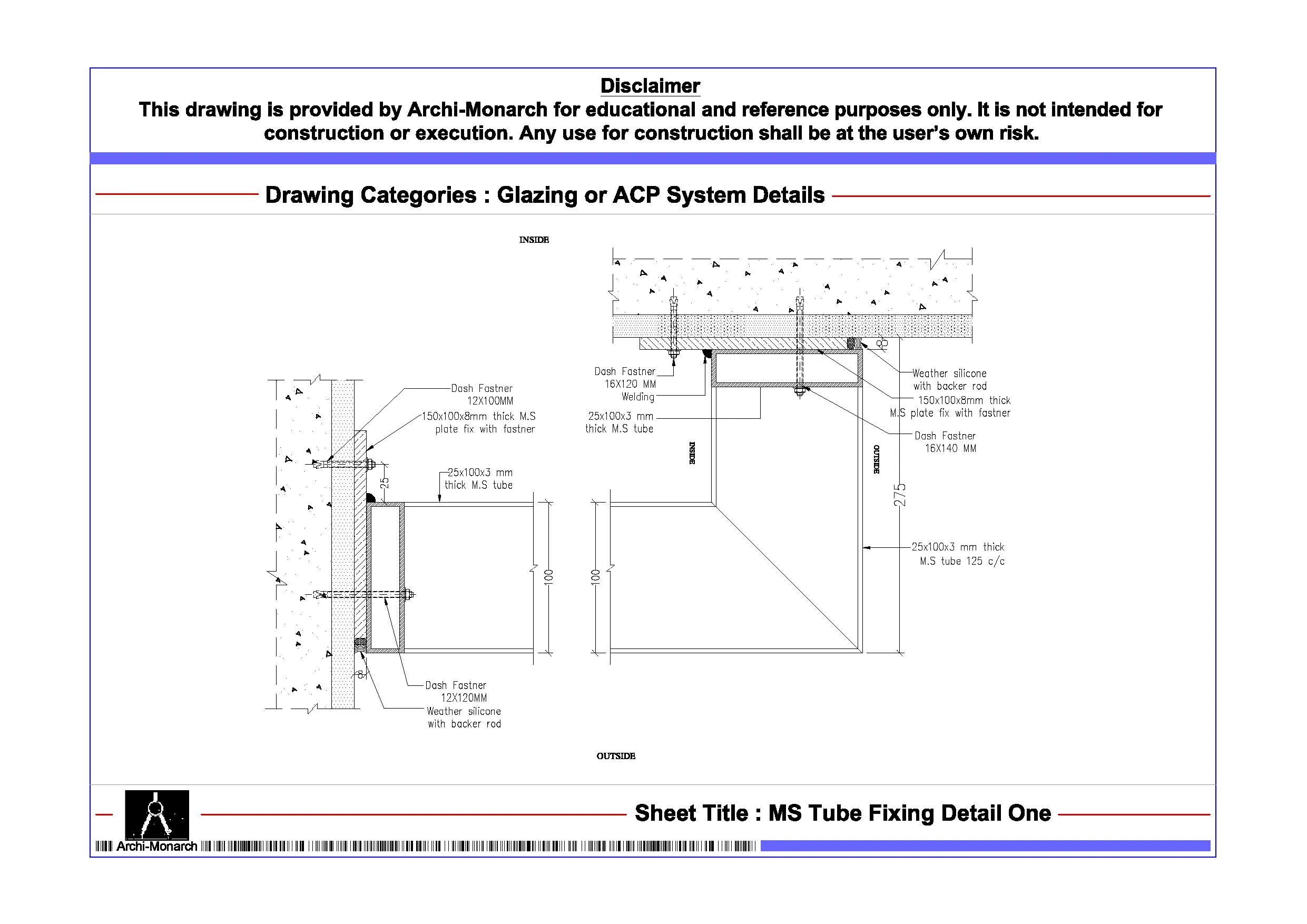

Image of MS tube fixing detail and downloadable (in DWG) link below

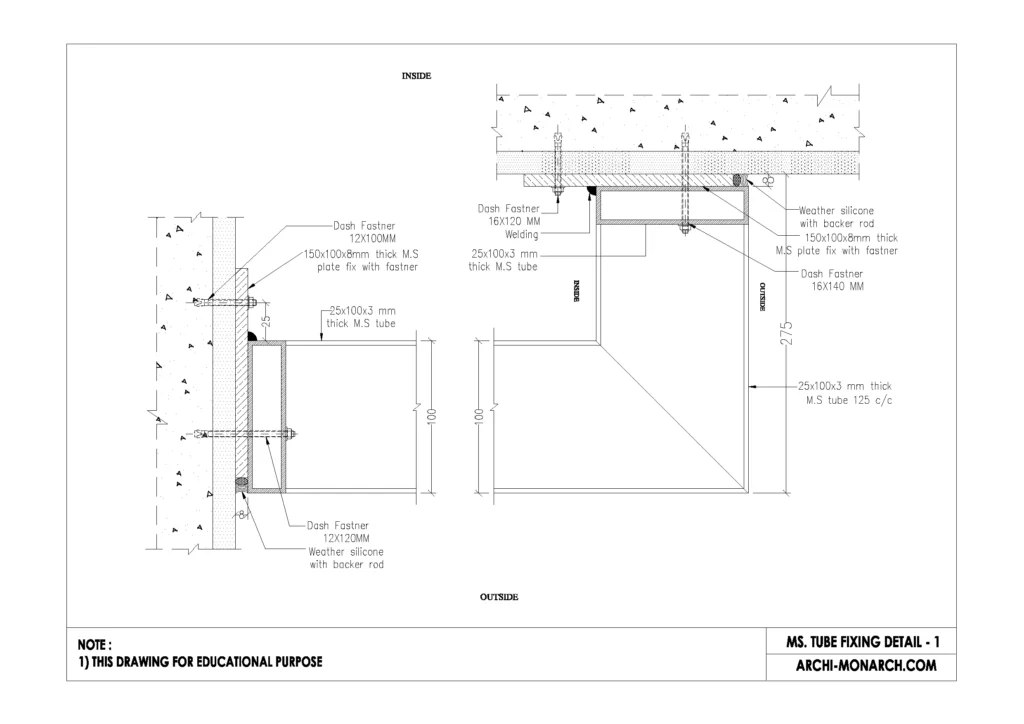

MS (Mild Steel) tube fixing detail drawing – 1

A MS tube fixing detail drawing is a technical drawing that shows the specific methods and techniques used to fix or secure a mild steel tube to a structure or surface.

The drawing typically includes dimensions, annotations, and notes that provide information about the materials used, the type of fixing methods, and the load-bearing capacity of the tube.

The drawing should include the following information:

  • The size, thickness and type of the MS tube to be fixed.
  • The location and orientation of the tube in relation to the structure or surface.
  • The method of fixing, such as welding, bolting, or clamping, and the specific hardware and fittings used.
  • The load-bearing capacity of the tube, including any safety factors or design considerations.
  • The type of material and surface finish of the structure or surface to which the tube is to be fixed.
  • Any special requirements or considerations, such as vibration or temperature limits.

It is important to ensure that the MS tube fixing detail drawing is accurate and up-to-date, and that it complies with all relevant codes and standards. It should be reviewed and approved by a structural engineer or other qualified professional before any work begins.

Our tips to help you improve your architectural MS tube fixing detailing.

Purchase (MS tube fixing detail) link below for download
