MS DOOR DETAIL ONE

In architecture, a mild steel door is a type of door that is made from low carbon steel. Mild steel is a type of steel that contains low levels of carbon, making it more ductile and less brittle than other types of steel.

Mild steel doors are strong, durable, and fire-resistant. They can be used in a variety of settings, including commercial buildings, industrial facilities, and residential homes. They can also be painted or coated to protect against rust and other forms of corrosion.

Mild steel doors are often used in commercial and industrial settings because they are strong and have a long lifespan. They are also cost-effective and easy to repair.

If you want to know about the staircase detail or toilet detail or miscellaneous detail, please click the link.

Image of mild steel doors detail and downloadable (in DWG) link below

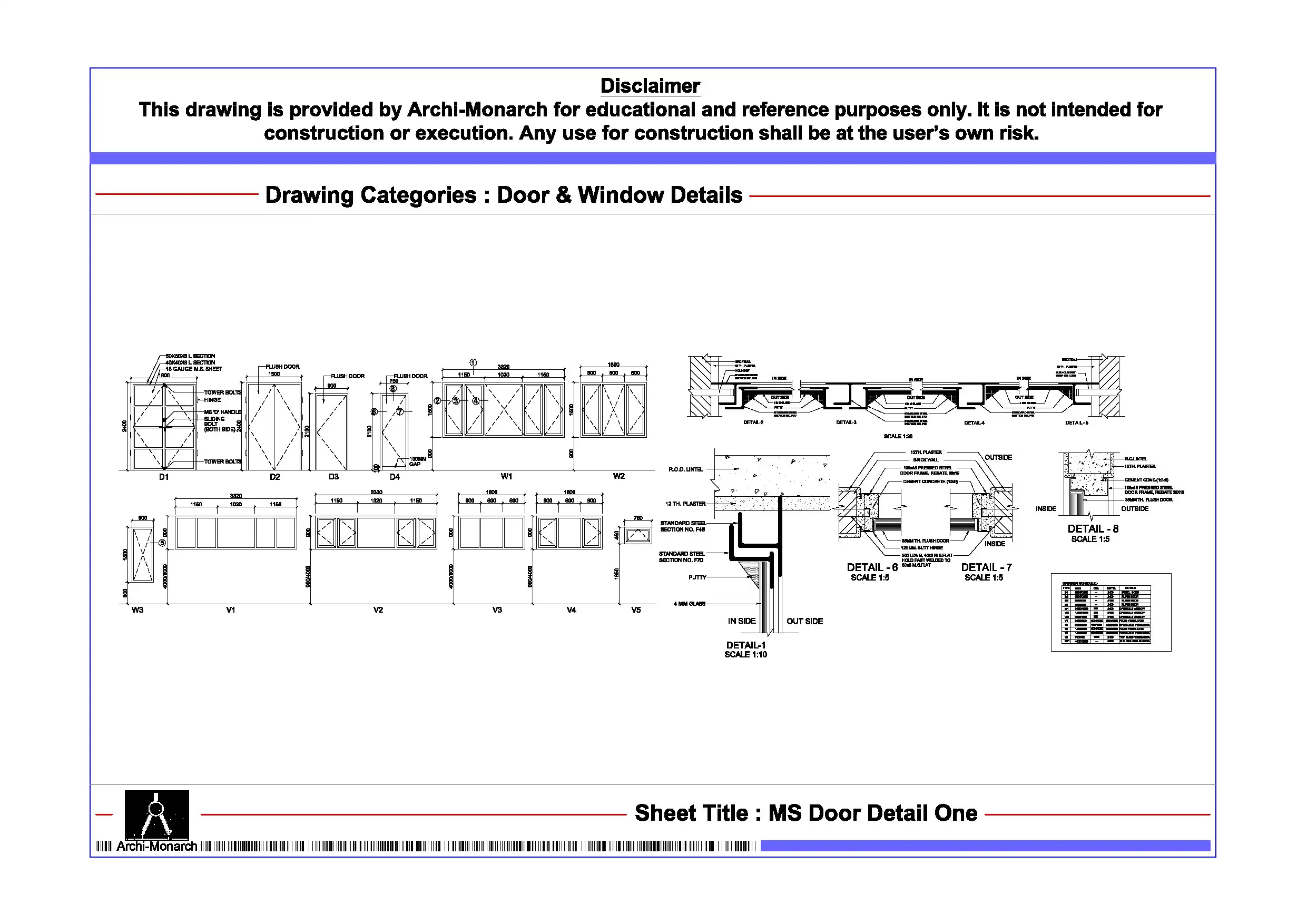

MS DOOR DETAIL ONE

MS doors detail drawing – 1

A mild steel door detail drawing is a technical drawing that provides detailed information about the construction and dimensions of a mild steel door. The drawing typically includes information such as the size and shape of the door, the type and thickness of the steel used, the type of hardware used, and the type of finish applied to the door.

Additionally, the drawing will often include details such as the placement of the hinges, the location of the lock and latch, and any additional security features that may be included. The drawing may also include information about the surrounding wall and frame construction, including the type of material used, and the dimensions of the frame.

Such drawings are typically used by architects, builders, and engineers to ensure that the door is properly constructed and installed.


Our tips to help you improve your architectural mild steel door detailing.



Purchase (Mild steel door detail) link below for download
