A lintel is a structural element that is placed horizontally above an opening in a wall, such as a door or window, to support the weight of the structure above it.

Lintels are typically made of stone, brick, steel, or wood, and are designed to transfer the load from the structure above the opening to the vertical supports on either side of the opening.

In masonry construction, lintels are often made of stone or brick and are known as stone lintels or brick lintels, respectively. In steel or wood-framed construction, the lintel is often made of steel or wood and is referred to as a steel lintel or a wood lintel.

If you want to know about the staircase detail or toilet detail or landscape layout detail, please click the link.

Image of lintel detail structural and downloadable (in DWG) link below

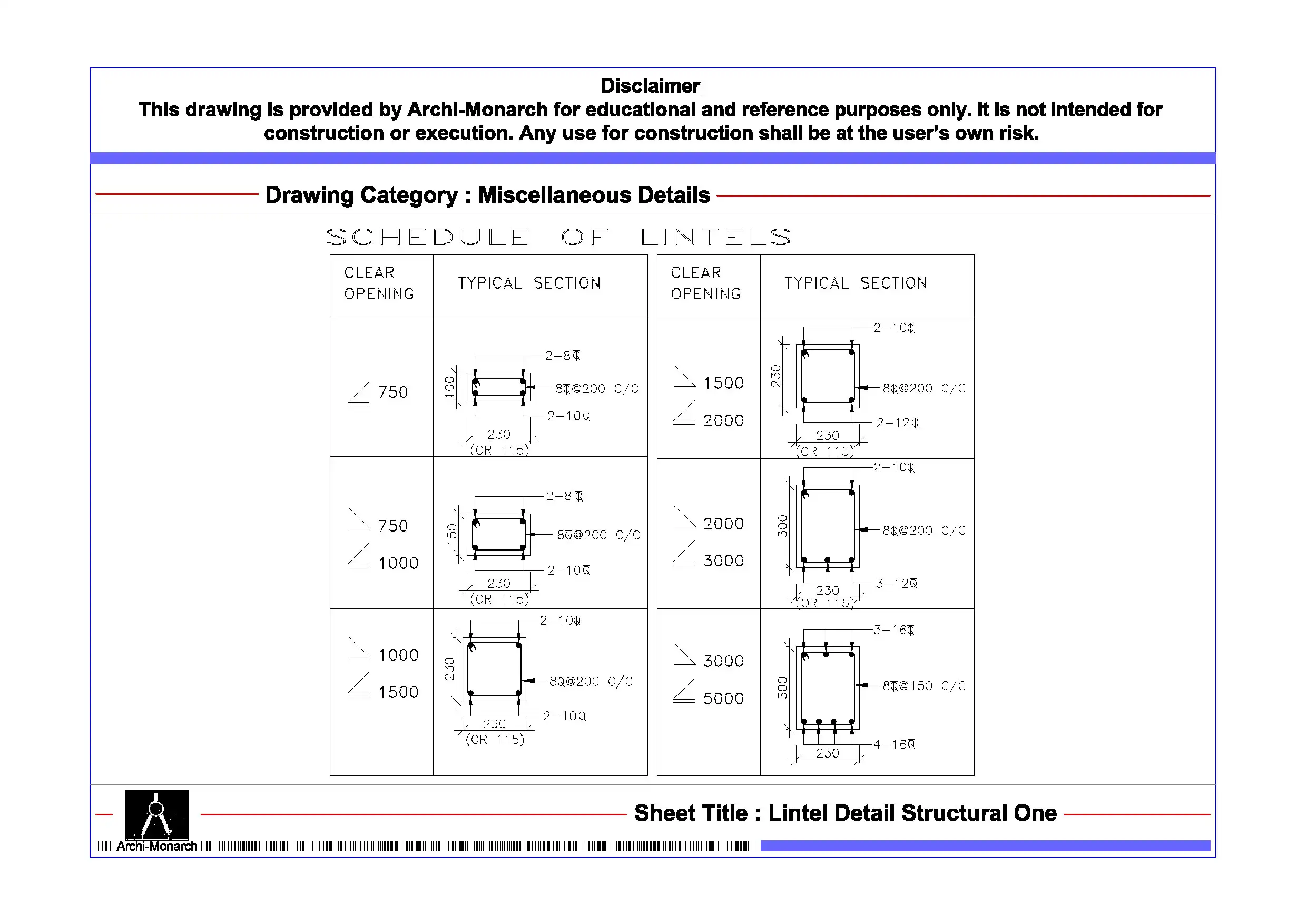

Lintel detail structural detail drawing – 1

A lintel detail structural drawing is a technical illustration that shows the construction and installation details of a lintel. It typically includes information such as the type of material used for the lintel, the size and shape of the lintel, the load capacity of the lintel, and the location of the lintel in relation to the opening it is supporting.

The drawing may also include information on the type of masonry or framing surrounding the opening, such as the type of brick or block used, the thickness of the walls, and the size and spacing of wall studs. It also shows the kind of connection of the lintel with the wall like anchors, bolts etc.

It might also have information about the finish of lintel like paint, galvanizing, anodizing etc.

In addition, the drawing may show the proper installation details for the lintel, such as the correct placement of shims, the correct positioning of anchor bolts, and any other necessary hardware.

Overall, Lintel Detail Structural Drawing is a crucial piece of information for builders, architects, and engineers as it ensures that the structure is built properly and able to support the loads it is intended to bear.

Our tips to help you improve your architectural lintel detail structural detailing.

Purchase (Lintel detail structural detail) link below for download
