A front entrance ramp is a type of ramp that is installed at the front entrance of a building to provide access for individuals who use wheelchairs or have mobility issues.

These ramps typically have a gentle slope, handrails, and a non-slip surface to ensure safety and accessibility.

They can be made of various materials such as concrete, wood, or aluminum.

Image of front entrance ramp detail and downloadable (in DWG) link below

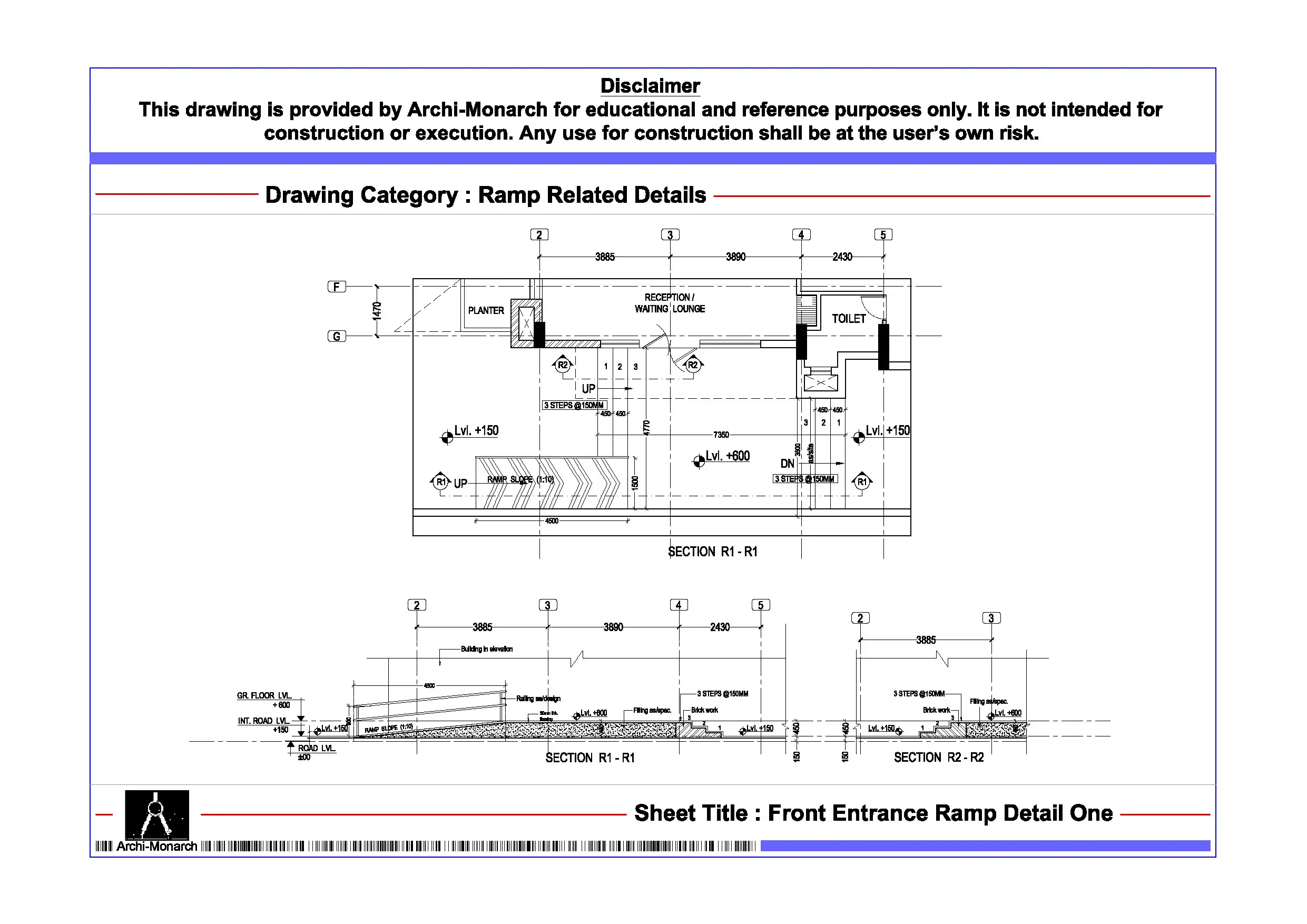

Front entrance ramps detail drawing – 1

A front entrance ramp detail drawing is a technical drawing that provides specific information about the design and construction of a front entrance ramp. It typically includes details such as the ramp slope, dimensions, materials, and any necessary reinforcing or anchoring elements.

The drawing may also include details about handrails, surface treatments, and any other features that are required for accessibility or safety. These drawings are used by architects, builders, and contractors to ensure that the ramp is constructed correctly and meets all relevant building codes and accessibility standards.

A front entrance ramps detail drawing would typically include the following information:

  • Ramp slope and slope ratio (rise/run)
  • Dimensions of the ramp, including the width, length, and height of the ramp and any landings.
  • Materials used for the ramp structure and surface, including the type of concrete, wood or metal.
  • Reinforcing elements, such as rebar or steel mesh, used to strengthen the ramp structure.
  • Anchoring elements, such as footings or brackets, used to secure the ramp to the building.
  • Handrails and guardrails, including their height, width, and location.
  • Surface treatments, such as non-slip materials or tactile warning strips, used to improve traction and safety.
  • Drainage details, such as drainage channels or grates, to prevent water from pooling on the ramp surface.
  • The detail drawings may also indicate any other features that are required for accessibility, such as tactile warning strips, handrails and guardrails.

These drawings are important to ensure that the ramp is constructed according to the building codes and accessibility standards and that it is safe and functional for its intended use. They also help builders and contractors understand the design intent and the construction process.

Our tips to help you improve your architectural front entrance ramp detailing.

Purchase (Front entrance ramp detail) link below for download
