In architecture, a fin detail refers to the design and integration of thin, vertical or horizontal elements—often called “fins”—used on a building’s facade or structure. These fins can serve functional, aesthetic, or environmental purposes.
Functionally, they may provide solar shading, reducing glare and heat gain inside the building, especially on glass facades. Aesthetically, fins contribute to the visual rhythm, texture, and depth of a building’s exterior, often giving it a sleek, modern appearance.
They can be made of various materials like metal, concrete, or wood, and are typically aligned in repetitive patterns. Fin details require careful coordination between architectural design, structural support, and sometimes mechanical systems (if operable). In sum, fin detailing plays a crucial role in enhancing building performance and articulating architectural expression.
If you want to know about the working drawing or water tank detail or landscape detail, please click the link.
Image of Fin detail and downloadable (in DWG) link below

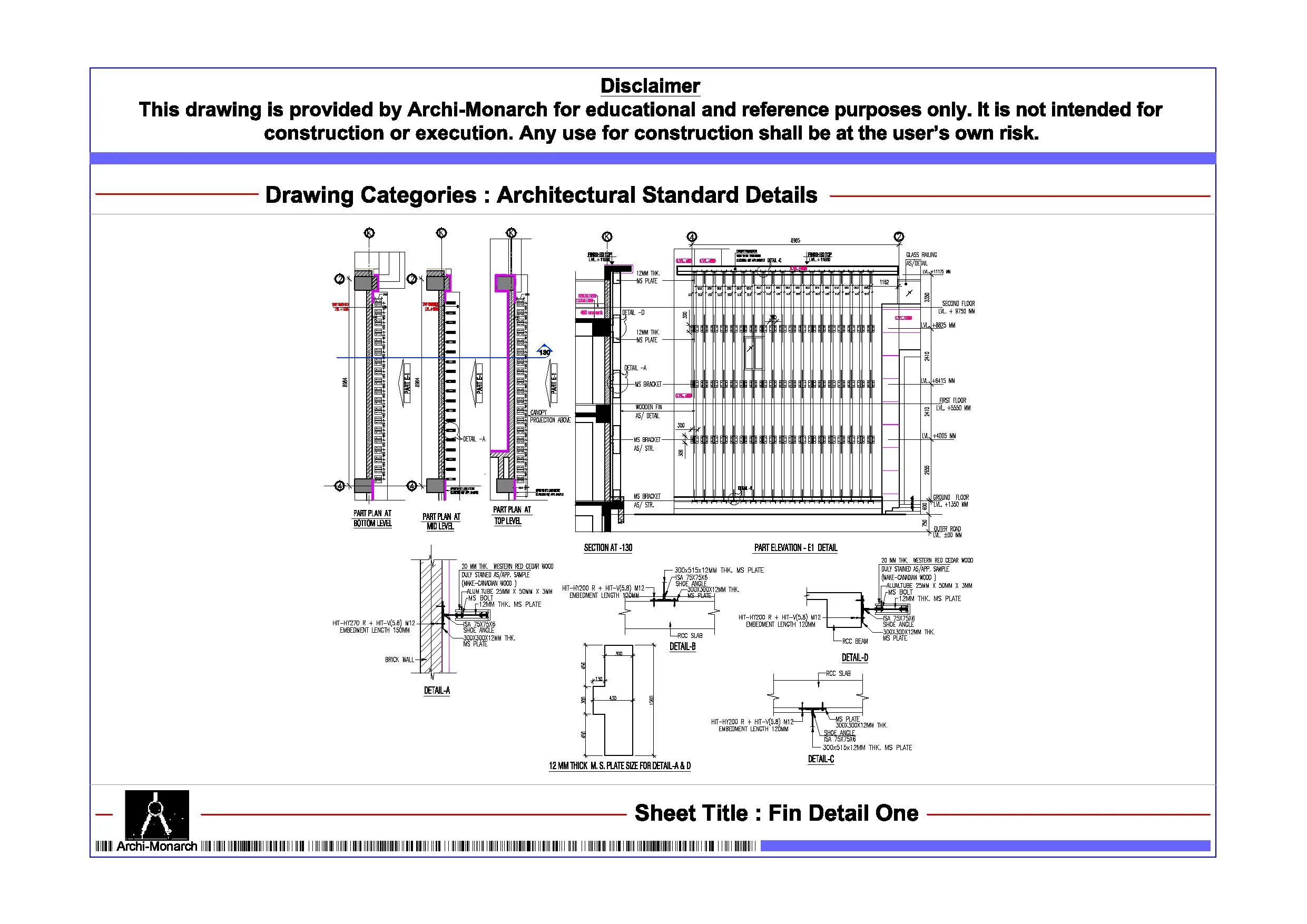

Fin detail drawing – 1
A fin detail drawing in construction refers to a precise architectural or structural drawing that shows the design, dimensions, materials, and connections of fin elements used on a building—typically on façades.
These drawings are part of the construction documentation set and are essential for ensuring that the fins are fabricated and installed correctly.
Key Aspects of a Fin Detail Drawing:
- Scale & Placement: Fin detail drawings are usually at a larger scale (e.g., 1:10, 1:5, or 1:2) to show the fin in context with the wall or façade system. It clearly indicates where each fin is located and how it interacts with adjacent materials.
- Material Specification: The drawing notes the type of material (e.g., aluminum, GRC, steel, timber), finish (powder-coated, anodized, painted), and color.
- Connection Details: Shows how the fins are attached to the structure—via brackets, bolts, welding, or concealed fixings. These details are critical for both stability and aesthetics.
- Support & Anchoring: Includes the structural supports like horizontal rails, backplates, or embed plates, and how loads (wind, weight, etc.) are transferred to the main structure.
- Alignment & Spacing: Specifies the spacing between fins, their orientation (vertical/horizontal/angled), and projections from the wall or glazing surface.
- Thermal & Movement Considerations: May include expansion joints or thermal breaks, especially for metal fins on large façades exposed to sunlight.
- Waterproofing & Integration: Shows how fins interact with cladding systems or glazing without compromising weatherproofing, particularly at penetrations or overlaps.
In short, a fin detail drawing is crucial for turning a conceptual design into a buildable element. It bridges design intent and constructability, ensuring fins are not only aesthetically aligned but also durable, structurally sound, and weather-resistant.
Our tips to help you improve your architectural Fin detailing.
