Architectural coping refers to the protective covering or cap placed on the top of a wall, typically made of stone, concrete, brick, or other durable material. Coping serves several important functions in building design and construction.
One function of coping is to protect the wall from water damage by directing rainwater away from the wall. This is typically achieved by sloping the coping surface so that water flows off the wall and onto the ground below. Copings can also help to prevent water from seeping into the wall through joints or cracks in the masonry.
Another function of coping is to provide a finished, decorative edge to the wall. Copings can be designed in a variety of shapes and styles to suit the overall aesthetic of the building. It can be used to create a contrasting visual element or to harmonize with the overall design of the building.
In addition to these practical and aesthetic considerations, coping can also serve a structural function by reinforcing the top of the wall and helping to distribute the weight of the building above.
Overall, architectural copings serve a crucial role in the construction and maintenance of buildings, helping to protect the structure from weather and wear, and adding visual interest and appeal to the design.
If you want to know about the toilet detail or staircase detail or ramp detail, please click the link above.
Image of copings detail and downloadable (in DWG) link below

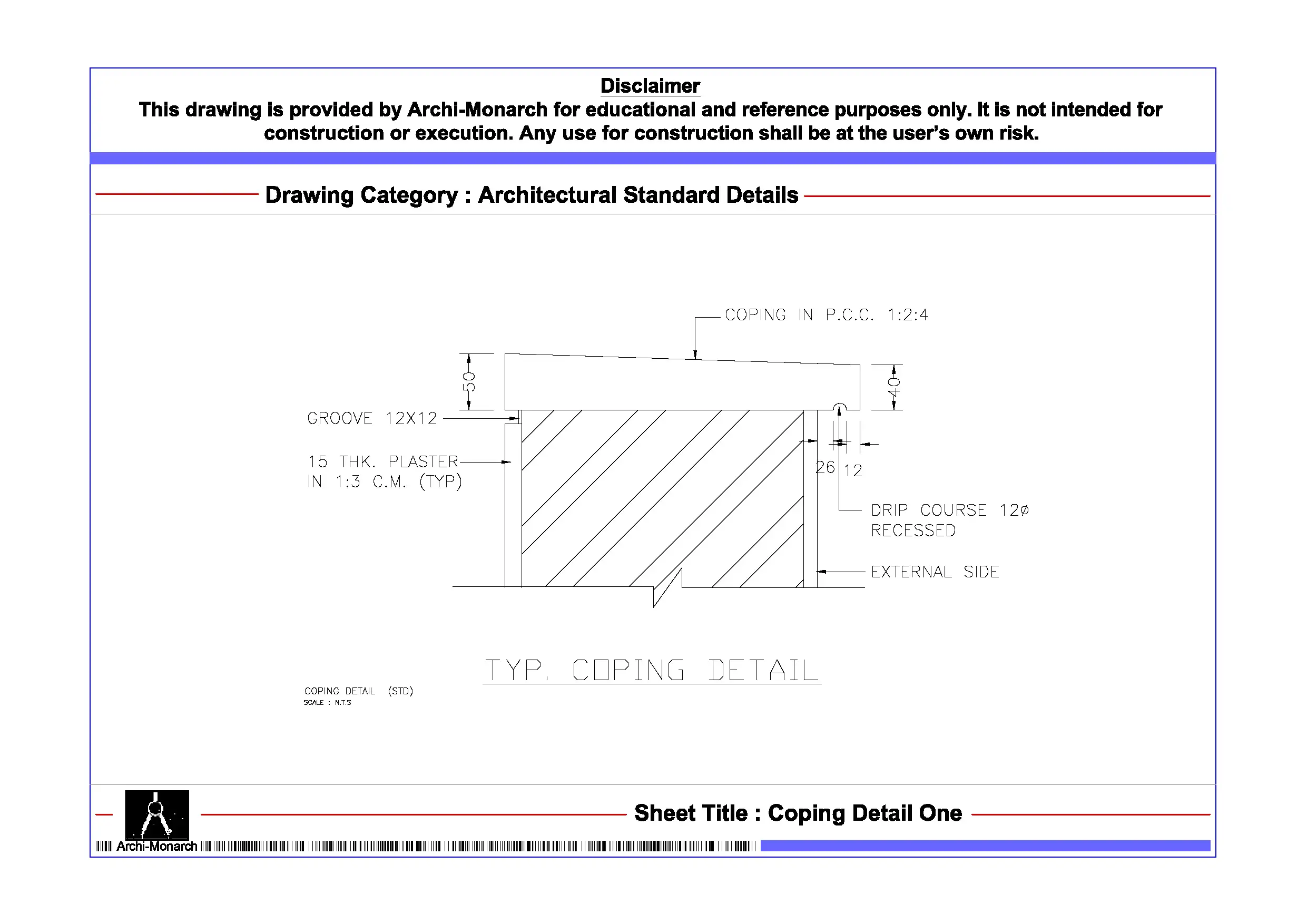

Coping detail drawing – 1
An architectural copings detail drawing is a technical drawing that shows how the coping will be constructed and installed on a building. The drawing typically includes detailed information about the materials to be used, the dimensions and profiles of the coping elements, and the method of attachment to the wall.
A copings detail drawing may also include information about the slope and drainage of the coping surface, as well as any special features or design elements such as decorative patterns or inset tiles.
In addition to the copings itself, a coping detail drawing may also include information about adjacent building elements such as roofing, flashing, or gutter systems that interact with the coping.
Architectural detail drawings are important tools for architects, contractors, and other building professionals, as they provide clear, concise information about the design and construction of building elements. They help to ensure that the finished product meets the desired specifications and complies with building codes and standards.
Our tips to help you improve your architectural coping detailing.
