A “bump strike plate” installed at the back of a parking lot is similar to one at the front, it is a raised metal plate that is installed at the base of a parking lot barrier or gate. Its purpose is to prevent vehicles from damaging the barrier or gate by striking it with the rear bumper.

The strike plate is typically made of durable metal and is designed to absorb the impact of a vehicle collision, reducing the damage to both the vehicle and the barrier.

It is also used to make sure that the vehicle will not be able to pass the barrier. This type of bump strike plate is commonly used in parking lots and garages as an extra layer of protection for the barrier, as well as to help guide vehicles

If you want to know about the staircase detail or toilet detail or miscellaneous detail, please click the link.

Image of bump strike plates detail and downloadable (in DWG) link below

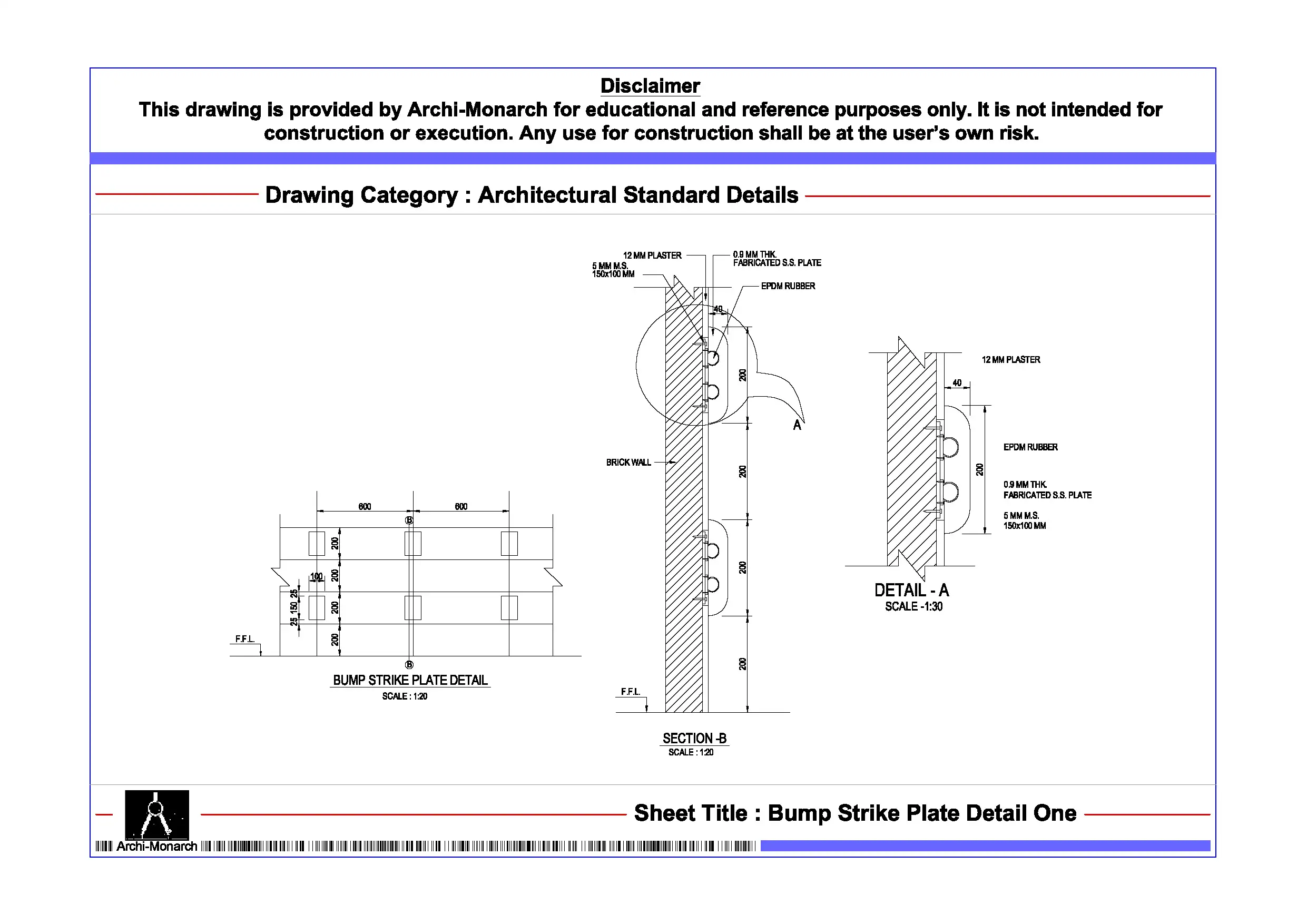

Bump strike plate detail drawing – 1

A “bump strike plate” detail drawing is a technical illustration that shows the dimensions, materials, and installation details of a bump strike plates. It would typically include the following information:

  • Dimensions of the strike plate, including width, height, and thickness.
  • Material specifications, such as the type of metal used and its thickness.
  • Anchoring and fastening details, including the types of anchors or bolts used and their spacing.
  • Clearances and tolerances, such as the distance between the strike plate and the barrier or gate.
  • Surface finish and coatings, such as paint or galvanizing.
  • Any special requirements or notes, such as load-bearing capacity or compliance with local building codes.

It is important to note that a detail drawing is not a common practice to share with the public, as it is mostly used in the manufacturing and construction industry, by engineers and builders.

Our tips to help you improve your architectural bump strike plate detailing.

Purchase (Bump strike plate detail) link below for download
