Roof Details
A Complete Guide for Architects and Architecture Students
Roof systems are among the most critical components of any building. They provide protection from weather, contribute to structural stability, improve thermal performance, and significantly influence architectural aesthetics. Accurate roof detailing is essential for ensuring durability, waterproofing, drainage efficiency, and long-term building performance.

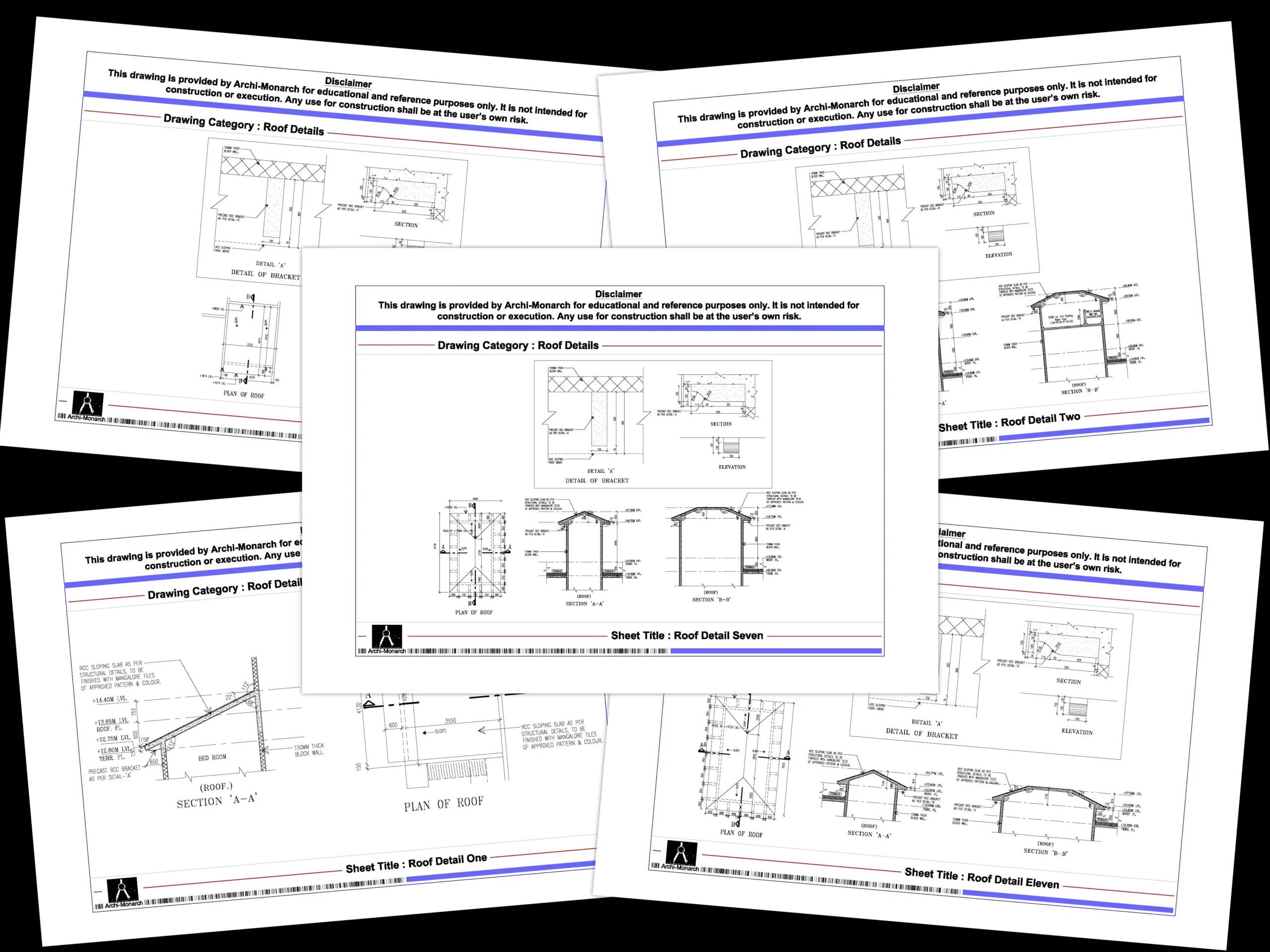

At Archi-Monarch.in, Roof Details are available as digital downloadable AutoCAD DWG files for educational and reference use, helping architecture students, designers, and drafting professionals understand industry-standard roofing systems and construction detailing practices.
What Are Roof Details?
Roof Details are technical architectural drawings that illustrate the construction, assembly, dimensions, materials, waterproofing systems, drainage arrangements, insulation layers, and structural components of roof systems.
These drawings typically include:
- Roof plans
- Roof sections
- Waterproofing details
- Roof drainage details
- Parapet details
- Roof slab construction details
- Roof edge and coping details
Proper detailing ensures that roof systems perform efficiently while protecting the building from environmental conditions.
Importance of Roof Details in Architectural Design
A well-designed roof system contributes to building performance, occupant comfort, and long-term durability.
Why Roof Details Matter
- Protect buildings from rain and weather
- Improve thermal insulation
- Enhance waterproofing performance
- Support drainage systems
- Prevent structural deterioration
- Improve energy efficiency
- Contribute to architectural appearance
Effective roof detailing reduces maintenance requirements and extends building lifespan.
Components of a Roof System
Roof systems consist of multiple layers and construction elements that work together.
1. Roof Slab Details
The roof slab forms the structural base of the roofing system.
Common Materials
- Reinforced concrete
- Steel deck systems
- Composite slabs
- Precast concrete panels
Functions
- Structural load transfer
- Support for waterproofing layers
- Foundation for roof finishes
2. Waterproofing Details
Waterproofing is one of the most important aspects of roof design.
Common Waterproofing Systems
- Bituminous membranes
- Liquid-applied waterproofing
- Polymer-modified membranes
- Cementitious waterproofing
Benefits
- Prevent water infiltration
- Protect structural components
- Reduce maintenance costs
3. Roof Insulation Details
Insulation improves thermal efficiency and indoor comfort.
Common Materials
- Extruded polystyrene (XPS)
- Expanded polystyrene (EPS)
- Polyurethane foam
- Mineral wool
Proper insulation contributes to sustainable building design.
4. Roof Drainage Details
Drainage systems prevent water accumulation and roof damage.
Typical Components
- Rainwater outlets
- Drainage pipes
- Gutters
- Downpipes
- Surface slopes
Efficient drainage is essential for long-term roof performance.
5. Parapet and Coping Details
Parapets define roof edges and improve safety.
Common Features
- RCC parapet walls
- Waterproofing terminations
- Coping stones
- Flashing systems
Proper detailing prevents water ingress at roof perimeters.
Types of Roof Details
Different building types require different roof systems.
Flat Roof Details
Flat roofs are widely used in residential, commercial, and institutional buildings.
Advantages
- Easy maintenance access
- Space for services and equipment
- Suitable for terraces and rooftop amenities
Common Applications
- Apartments
- Commercial buildings
- Educational facilities
Sloping Roof Details
Sloping roofs provide efficient rainwater drainage.
Typical Materials
- Clay tiles
- Concrete tiles
- Metal sheets
- Shingles
Benefits
- Faster water runoff
- Improved weather protection
- Traditional architectural character
Terrace Roof Details
Terrace roofs serve as usable outdoor spaces.
Common Features
- Waterproofing systems
- Protective flooring
- Drainage arrangements
- Safety railings
These roofs provide functional recreational areas.
Metal Roof Details
Metal roofing systems are popular in industrial and commercial projects.
Advantages
- Lightweight construction
- Long service life
- Fast installation
Applications
- Warehouses
- Factories
- Industrial buildings
Green Roof Details
Green roofs integrate vegetation into the roof assembly.
Benefits
- Improved insulation
- Stormwater management
- Enhanced sustainability
- Reduced urban heat island effect
These systems are increasingly used in sustainable architecture.
Common Components Included in Roof Details
Professional roof drawings contain several technical elements required for construction.
Essential Components
Roof Plans
Show roof layout, drainage systems, and service locations.
Roof Sections
Illustrate construction layers and structural assemblies.
Waterproofing Details
Specify membrane systems and installation methods.
Drainage Details
Show slopes, outlets, and rainwater management systems.
Parapet Details
Define edge conditions and waterproofing terminations.
Construction Notes
Provide specifications and installation guidelines.
These components ensure accurate construction and long-term performance.
Benefits of Using Roof Details from Archi-Monarch.in
Professionally prepared roof drawings provide valuable educational and practical advantages.
Key Benefits
- Ready-to-use AutoCAD DWG files
- Industry-standard roofing details
- Educational and reference-oriented content
- Improved understanding of roofing systems
- Time-saving drafting resources
- Easy customization for project requirements
These resources help users strengthen technical documentation and construction detailing skills.
Best Practices for Roof Detailing
Successful roof design requires careful planning and coordination.
Prioritize Waterproofing
Design robust waterproofing systems to prevent leakage and structural damage.
Ensure Proper Drainage
Provide adequate roof slopes and drainage outlets.
Coordinate Building Services
Integrate HVAC equipment, solar panels, and utility systems efficiently.
Select Appropriate Materials
Choose roofing materials based on climate, durability, and maintenance requirements.
Consider Thermal Performance
Incorporate insulation systems to improve energy efficiency.
Plan Maintenance Access
Provide safe access routes for inspections and repairs.
How to Create Effective Roof Details
Developing professional roof drawings requires a structured design process.
Step-by-Step Process
1. Analyze Project Requirements
Evaluate climate, building use, and performance objectives.
2. Select Roof System Type
Determine whether flat, sloping, terrace, metal, or green roof systems are appropriate.
3. Develop Drainage Strategy
Plan slopes, outlets, gutters, and downpipes.
4. Coordinate Structural Systems
Ensure roof loads are properly supported.
5. Prepare Detailed Drawings
Develop plans, sections, and enlarged construction details.
6. Verify Waterproofing and Accessibility
Confirm long-term performance and maintenance requirements.
Use Cases of Roof Details
Roof systems are required in virtually all building types.
Common Applications
- Residential houses
- Apartment complexes
- Commercial office buildings
- Shopping malls
- Hotels and resorts
- Educational institutions
- Hospitals
- Industrial facilities
- Warehouses
- Mixed-use developments
Each project requires roof systems tailored to its functional and environmental needs.
Roof Details for Educational and Reference Use
Roof design and detailing are fundamental topics in architectural education and professional practice.
Educational Benefits
- Learn roofing system design principles
- Understand waterproofing technologies
- Improve construction detailing skills
- Study drainage and insulation systems
- Develop multidisciplinary coordination knowledge
- Strengthen professional portfolios
Archi-Monarch.in provides Roof Details specifically for educational and reference use, helping students and professionals gain practical exposure to roofing systems and construction documentation.
Conclusion
Roof Details are essential components of architectural construction documentation, ensuring that buildings remain weather-resistant, energy-efficient, and structurally sound. Accurate detailing improves waterproofing performance, drainage efficiency, maintenance accessibility, and long-term durability.
For architecture students, designers, and drafting professionals, understanding roofing systems is an important skill that enhances construction knowledge and technical documentation capabilities.
Archi-Monarch.in offers professionally drafted Roof Details in AutoCAD DWG format for educational and reference use, helping users improve their knowledge of roofing systems, waterproofing technologies, and architectural detailing practices.
