A hospital laboratory is a crucial component of healthcare architecture, designed to support accurate diagnosis and effective treatment. In architectural terms, it must be a highly functional, sterile, and efficiently organized space integrated within the larger hospital layout.
The design of a hospital lab emphasizes workflow optimization, safety, and infection control. It typically includes designated zones for sample collection, testing, storage, and administrative work. Good ventilation, proper lighting, and materials that are easy to clean are essential features.
The lab must also comply with strict health regulations and be equipped to handle biohazardous materials, ensuring both patient and staff safety. Seamless connectivity with other hospital departments, such as emergency, radiology, and inpatient wards, is also key to its operational efficiency.
If you want to know about the kitchen detail or miscellaneous detail or water tank detail, please click the link.
Image of Hospital lab detail and downloadable (in DWG) link below

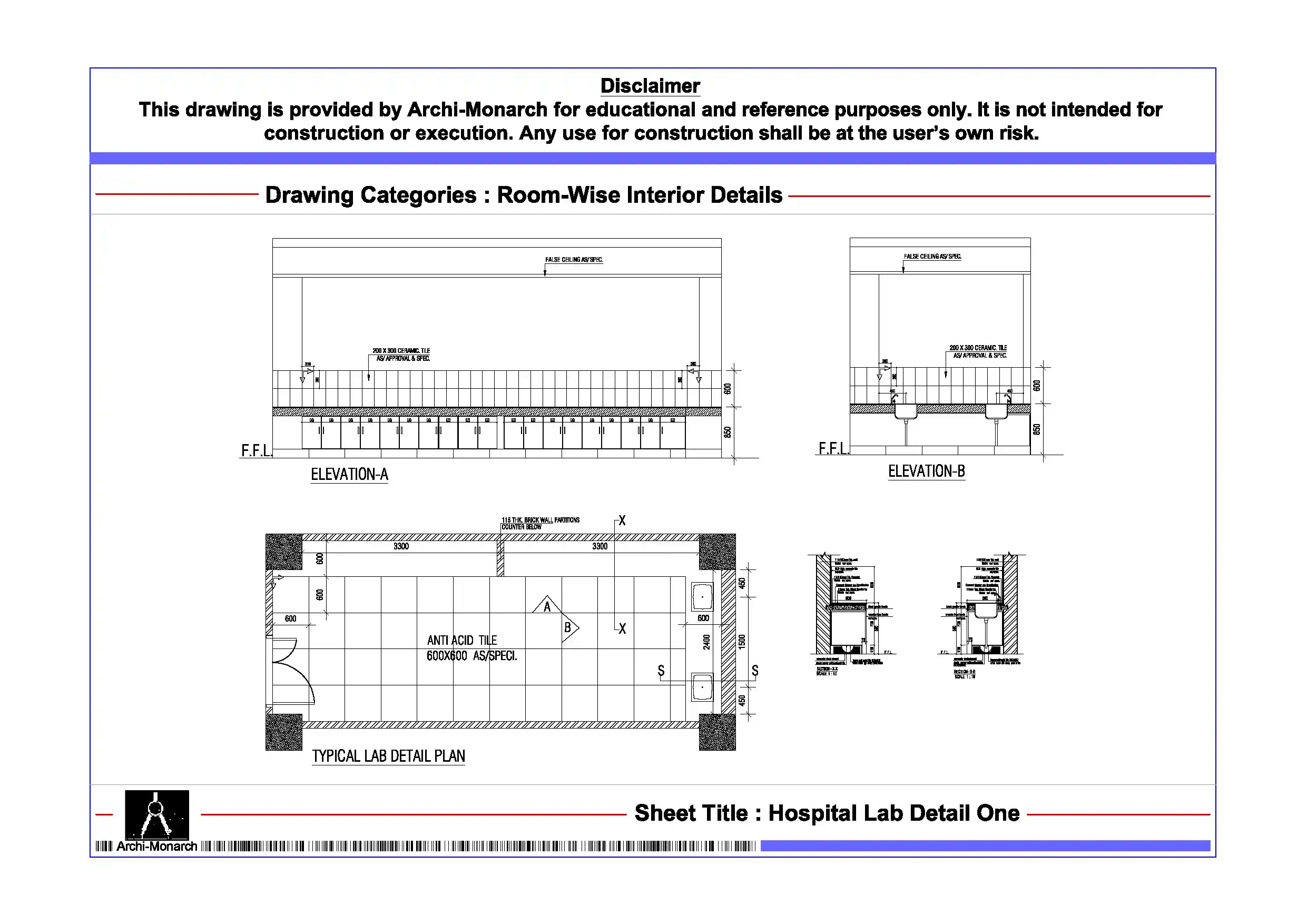

Hospital lab detail drawing – 1
A hospital lab detail drawing in construction provides comprehensive technical information required for building a functional, safe, and regulation-compliant laboratory within a hospital.
These drawings are part of the architectural and engineering documents and include highly detailed plans, sections, elevations, and sometimes 3D views. Here’s what’s typically included in hospital lab detail drawings:
Key Components in Hospital Lab Detail Drawing:
Floor Plan Details:
- Room layout (sample reception, testing zones, storage, sterilization areas).
- Equipment placement (e.g., centrifuges, microscopes, biosafety cabinets).
- Clearances for movement and accessibility.
Partition and Wall Details:
- Materials (non-porous, chemical-resistant surfaces like epoxy resin, stainless steel).
- Insulation and soundproofing (especially between lab and other zones).
- Lead lining in case of radiology or pathology labs.
Mechanical, Electrical, and Plumbing (MEP):
- HVAC: Lab-specific ventilation systems with HEPA filtration and negative pressure zones.
- Electrical: Dedicated circuits, UPS backup, emergency shut-off switches.
- Plumbing: Sinks with elbow/knee-operated faucets, drainage with traps, chemical-resistant piping.
Furniture and Fixture Details:
- Custom lab benches and counters.
- Fume hoods and biosafety cabinets.
- Eye wash stations and emergency showers.
Finishes Schedule:
- Floor: Anti-static, slip-resistant vinyl or epoxy.
- Walls: Washable paint or PVC wall cladding.
- Ceiling: Flush, sealed panels for easy maintenance.
Fire Safety and Emergency Provisions:
- Fire-rated walls and doors.
- Emergency exits and signage.
- Fire extinguisher placement and alarm systems.
Accessibility Compliance:
- ADA-compliant design: door widths, counters, and access paths.
- Visual and auditory alert systems.
These detail drawings are essential for contractors and engineers to understand the specific requirements of medical lab environments and ensure the lab is built for both precision work and long-term hygiene control.
Our tips to help you improve your architectural Hospital lab detailing.
