VICE PRESIDENT CABIN DETAIL ONE

The Vice President Cabin in architecture refers to a specialized office space designed for the Vice President within a corporate, institutional, or governmental building. This cabin is typically planned with a focus on both functionality and prestige, reflecting the senior position of the occupant.

Key features often include a spacious layout, ergonomic furniture, high-quality finishes, and integrated technology to support administrative and executive tasks. The design may also incorporate a meeting area, a private restroom, and storage facilities, ensuring privacy and convenience.

Aesthetically, the Vice President Cabin usually blends modern design elements with the organization’s branding and culture, projecting professionalism and authority.

If you want to know about the kitchen detail or miscellaneous detail or water tank detail, please click the link.

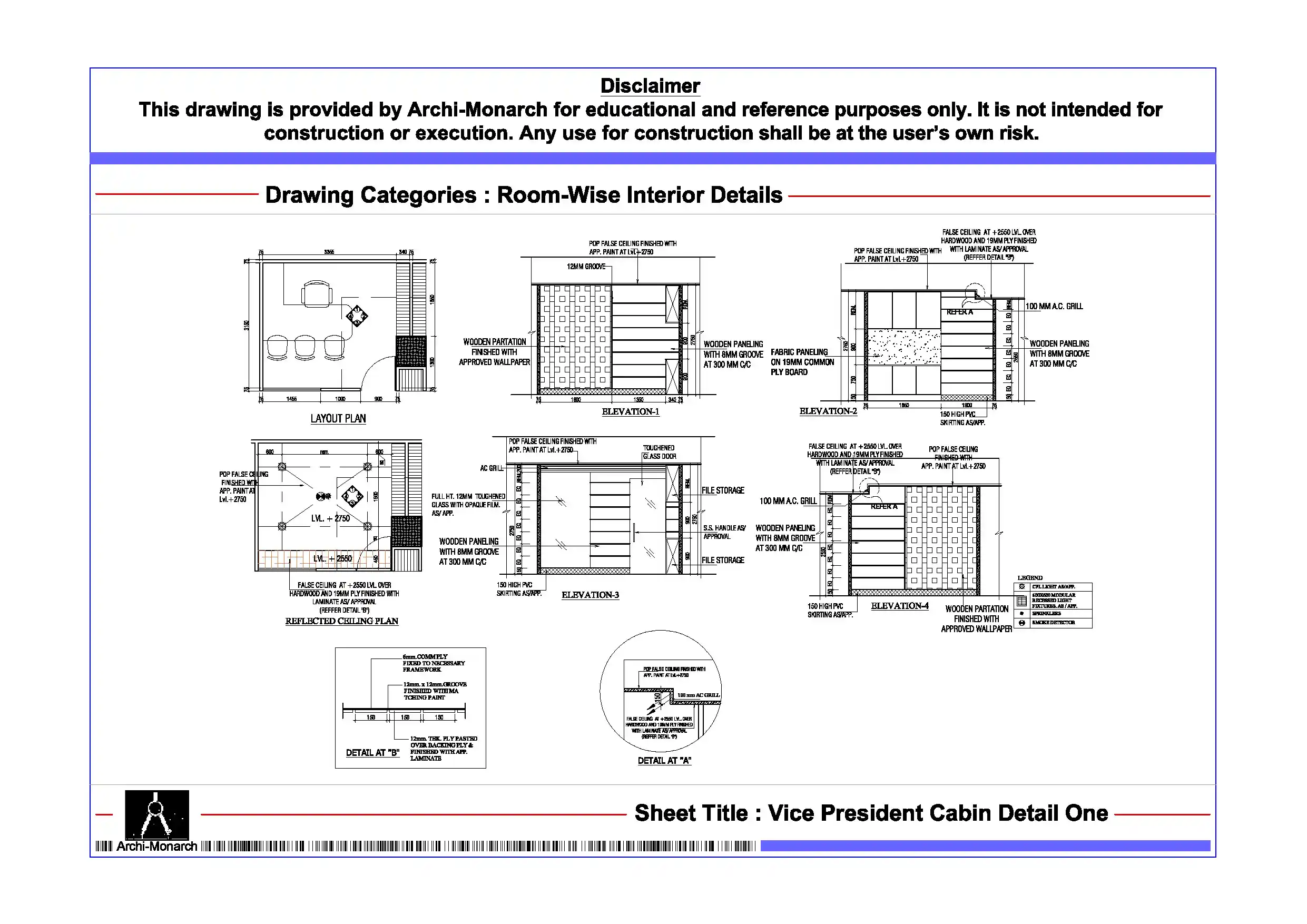

Image of Vice President Cabin detail and downloadable (in DWG) link below

VICE PRESIDENT CABIN DETAIL ONE

Vice President Cabin detail drawing – 1

A Vice President Cabin detail drawing in construction refers to the comprehensive architectural and technical documentation that outlines all the specific components involved in building and finishing the cabin. These detailed drawings are crucial for accurate execution during construction and interior fit-out.

Here’s what is typically included in such drawings:

Floor Plan:

  • Shows the layout of the cabin including work desk, seating area, meeting table, storage units, and circulation space.
  • Dimensions and furniture placement are precisely marked.

Elevation Drawings:

  • Interior wall elevations showing detailed finishes, paneling, shelves, and decorative elements.
  • Front and side views of furniture, wall cladding, and other built-in features.

Sectional Drawings:

  • Vertical cuts through key areas like workstations, false ceiling, or partition walls.
  • Details of construction layers including materials and thickness.

Furniture Details:

  • Custom-designed furniture pieces with dimensions and material specifications.
  • Joinery details for desks, credenzas, and conference tables.

Ceiling and Lighting Plan:

  • Layout of false ceiling design, including lighting fixtures (recessed lights, spotlights, etc.).
  • HVAC diffusers, speakers, fire detectors shown in coordination.

Electrical & Data Layout:

  • Power socket positions, data ports, and switchboard locations.
  • Cable management systems for a clean and efficient workspace.

Material and Finish Schedule:

  • List of materials (wood, glass, metal, etc.) and finishes (laminate, veneer, paint, etc.) used in different parts of the cabin.
  • Wall, floor, and ceiling finish details.

Door & Window Details:

  • Design, size, and material of doors and any windows or glass partitions.
  • Hardware specifications (handles, locks, etc.).

Partition Details:

  • Construction of partitions using gypsum board, glass, or wooden paneling.
  • Acoustic insulation and structural support details if needed.

These drawings ensure that the cabin is built to reflect the executive status of the Vice President while maintaining functionality, privacy, and aesthetic appeal.
