A pediment detail in architecture refers to the ornamental elements and structural components that define the triangular gable often found above a portico, entrance, or window in classical architecture.
Traditionally seen in Greek and Roman temples, pediments have been widely adapted in Renaissance, Baroque, and Neoclassical architecture. The detailing of a pediment can include sculptural reliefs, moldings, and decorative motifs such as acanthus leaves, floral patterns, or mythological figures.
Variations include open, broken, and segmental pediments, each offering a unique aesthetic and symbolic meaning. These details not only enhance the visual appeal of a building but also reflect the architectural style and historical influences of the era in which they were designed.
If you want to know about the kitchen detail one or water tank detail or landscape detail, please click the link.
Image of Pediment detail and downloadable (in DWG) link below

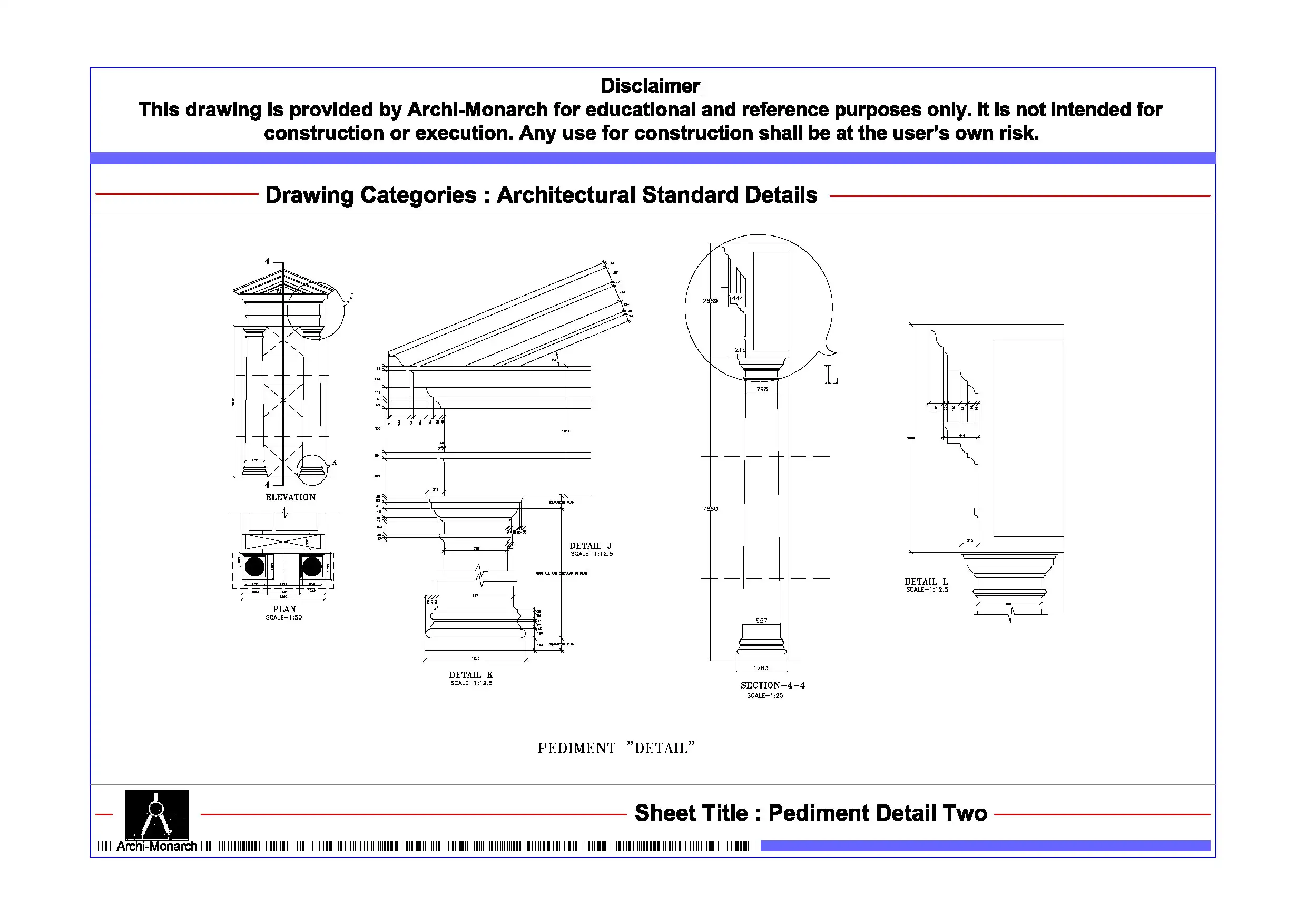

Pediment detail drawing – 2
A pediment detail drawing in construction is a precise architectural representation that illustrates the design, dimensions, materials, and structural components of a pediment. These drawings are essential for ensuring accuracy in construction, guiding builders in the fabrication and installation of the pediment.
Typically, the detail includes plan views, elevations, sections, and sometimes 3D renderings to clearly depict moldings, cornices, relief carvings, and support structures.
Key aspects of a pediment detail drawing include:
- Structural Components – Depicts the framework, including beams, rafters, and supports, ensuring proper load distribution.
- Material Specifications – Indicates the use of materials such as stone, wood, fiberglass, or concrete, depending on the architectural style and structural requirements.
- Decorative Elements – Includes intricate details such as dentils, modillions, sculptural reliefs, or ornamental motifs like floral patterns or mythological figures.
- Joint and Connection Details – Shows how different elements, including the tympanum, cornice, and entablature, connect to the main structure for stability.
- Weatherproofing Considerations – Includes flashing and drainage details to prevent water infiltration and ensure durability.
These drawings follow standard architectural drafting conventions, often accompanied by annotations and dimensions to provide clear instructions for builders and craftsmen.
Engineers and architects use these details to maintain the structural integrity and aesthetic appeal of both classical and modern pediments in various building styles.
Our tips to help you improve your architectural Pediment detailing.
