In architecture, a landscape bench serves both functional and aesthetic purposes, seamlessly integrating seating into outdoor environments. Unlike traditional benches, landscape benches are often designed to harmonize with natural surroundings, using materials such as wood, stone, or concrete to blend into parks, gardens, plazas, or urban streetscapes.
They may be built into retaining walls, planter edges, or sculptural elements, emphasizing form and continuity within the landscape design. Beyond providing rest areas, landscape benches contribute to the spatial experience, inviting social interaction and enhancing the usability of public spaces.
Their design considers comfort, durability, and environmental context, making them a thoughtful element in sustainable and user-friendly architectural landscapes.
If you want to know about the working drawing or boundary wall detail or gate detail, please click the link.
Image of Bench detail and downloadable (in DWG) link below

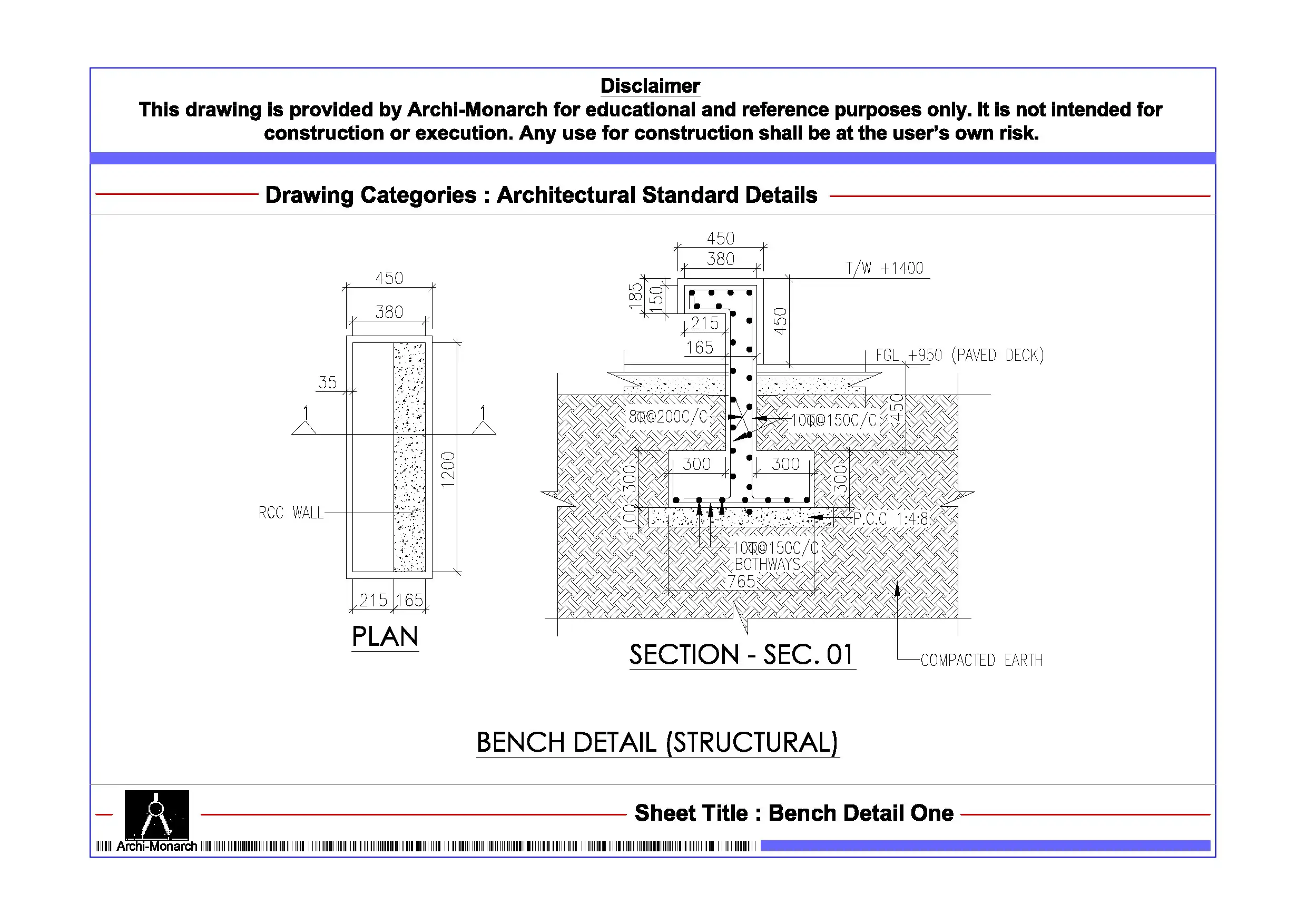

Bench detail drawing – 1
An RCC (Reinforced Cement Concrete) bench detail drawing in construction provides a comprehensive illustration of the bench’s design, dimensions, materials, and reinforcement layout. These benches are widely used in public spaces such as parks, bus stops, and gardens due to their strength, durability, and low maintenance.
Key Components in an RCC Bench Detail Drawing:
Dimensions:
- Length: Typically ranges from 1.2m to 1.8m (4 to 6 feet)
- Height: Sitting height usually around 450 mm
- Width: Seat width is around 400–500 mm
Materials:
- Concrete mix: Generally M20 or M25 grade
- Reinforcement: High yield strength deformed bars (HYSD) like Fe415 or Fe500
Reinforcement Details:
- Seat Slab: Main bars run longitudinally (10–12 mm dia), with distribution bars (8–10 mm dia) at 150–200 mm c/c spacing
- Backrest: If included, may have vertical reinforcement tied into the seat slab
- Legs/Support: Reinforced with vertical and lateral bars; may include dowel bars to anchor into the base
Foundation/Base:
- Usually consists of a concrete pad or footing (e.g., 300 mm thick PCC of M10 grade) to ensure stability and prevent sinking
Finish:
- Smooth trowel finish, possibly with chamfered edges for safety and aesthetics
- Sometimes surface is treated with waterproofing, paint, or anti-corrosive coating for steel
Other Considerations:
- Provision for drainage (sloped seat or gaps)
- Anti-vandalism measures (anchoring into the ground)
- Ergonomic design for comfort
The drawing typically includes plan view, elevation, and section views, along with reinforcement detailing, bar bending schedule, and notes on materials and workmanship.
