In architecture, an eave refers to the part of a roof that extends beyond the exterior walls of a building. It serves both functional and aesthetic purposes.
Functionally, eaves provide protection by directing rainwater away from the walls and foundation, helping to prevent water damage and erosion. They also offer shade, which can improve energy efficiency by reducing solar heat gain through windows.
Aesthetically, eaves contribute to the architectural style of a building, with variations in length, shape, and detailing often reflecting different regional or historical design influences.
If you want to know about the staircase detail or toilet detail or miscellaneous detail, please click the link.
Image of Eave detail and downloadable (in DWG) link below

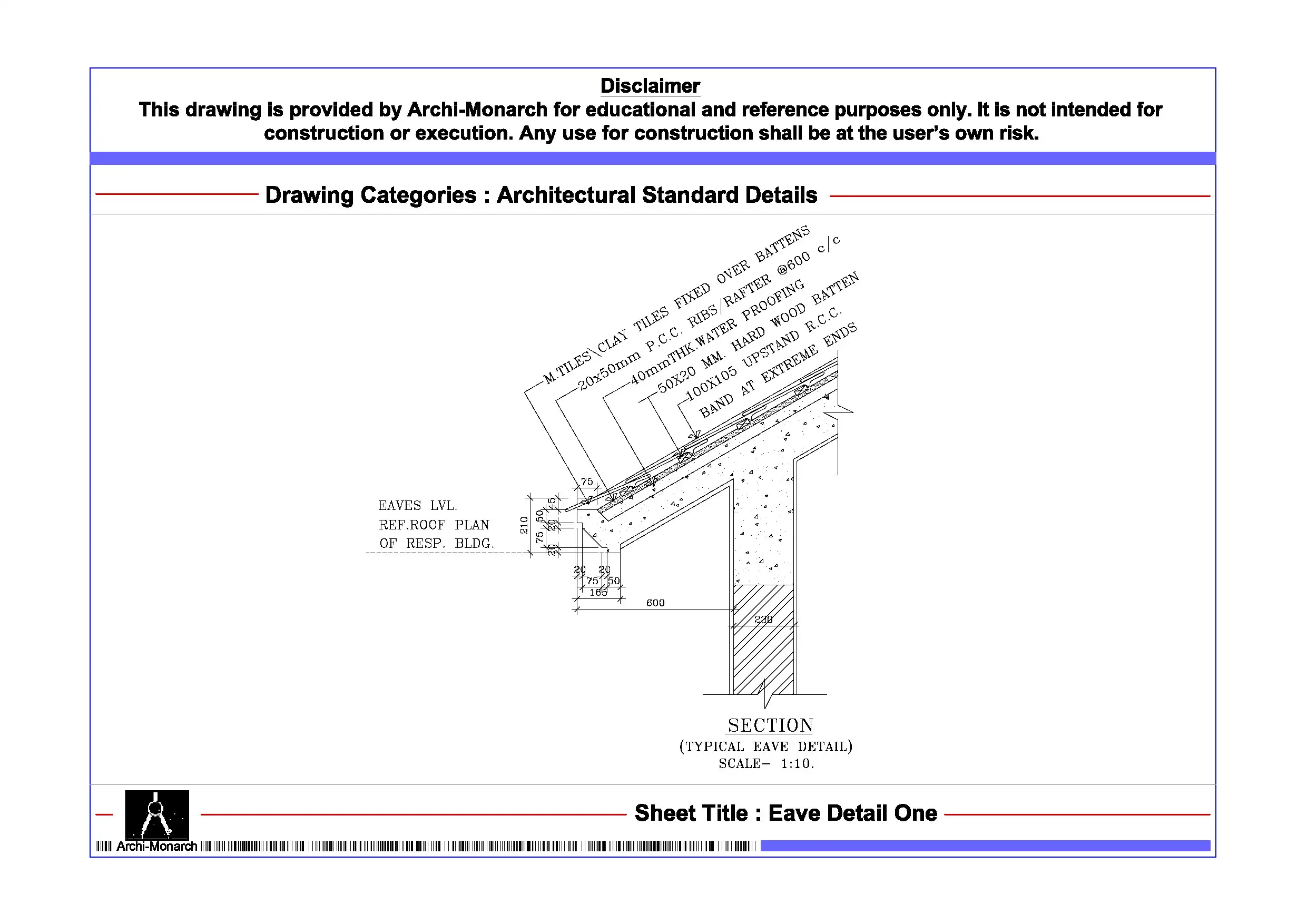

Eave detail drawing – 1
An eave detail drawing in construction is a technical illustration that shows the precise way the edge of a roof (the eave) is constructed where it overhangs the wall.
This drawing is crucial because it includes important information about how different building components—such as the roof structure, insulation, ventilation, flashing, fascia, soffit, and gutter system—are connected and layered.
Typically, an eave detail drawing is a cross-sectional view and includes:
- Rafter or Truss End: The structural element supporting the roof.
- Roof Sheathing: The panel material (e.g., plywood or OSB) nailed on top of the rafters.
- Fascia Board: A vertical board at the end of the rafters that supports the gutter.
- Soffit: The horizontal underside of the eave, which may be vented for attic ventilation.
- Gutter: Attached to the fascia to collect and direct water away from the building.
- Drip Edge and Flashing: Metal components that direct water away from the roof and walls.
- Ventilation Components: Like soffit vents or baffles, to allow airflow into the attic.
These drawings ensure proper construction methods are followed for durability, weather resistance, and code compliance. They also help avoid issues like ice dams, water intrusion, and inadequate ventilation.
Our tips to help you improve your architectural Eave detailing.
