In architecture, the driveway section refers to the detailed cross-sectional representation of a driveway within construction drawings.
This section illustrates the composition and layers that make up the driveway, including the surface material (such as concrete, asphalt, pavers, or gravel), the sub-base (typically compacted gravel or crushed stone), and any reinforcement like steel mesh or rebar.
It also indicates slope or gradient for proper drainage, edge restraints, and dimensions related to thickness and width. Driveway sections are essential for ensuring structural integrity, durability, and compliance with building codes and site-specific requirements, especially in terms of load-bearing capacity and accessibility.
If you want to know about the kitchen detail or miscellaneous detail or water tank detail, please click the link.
Image of Driveway section detail and downloadable (in DWG) link below

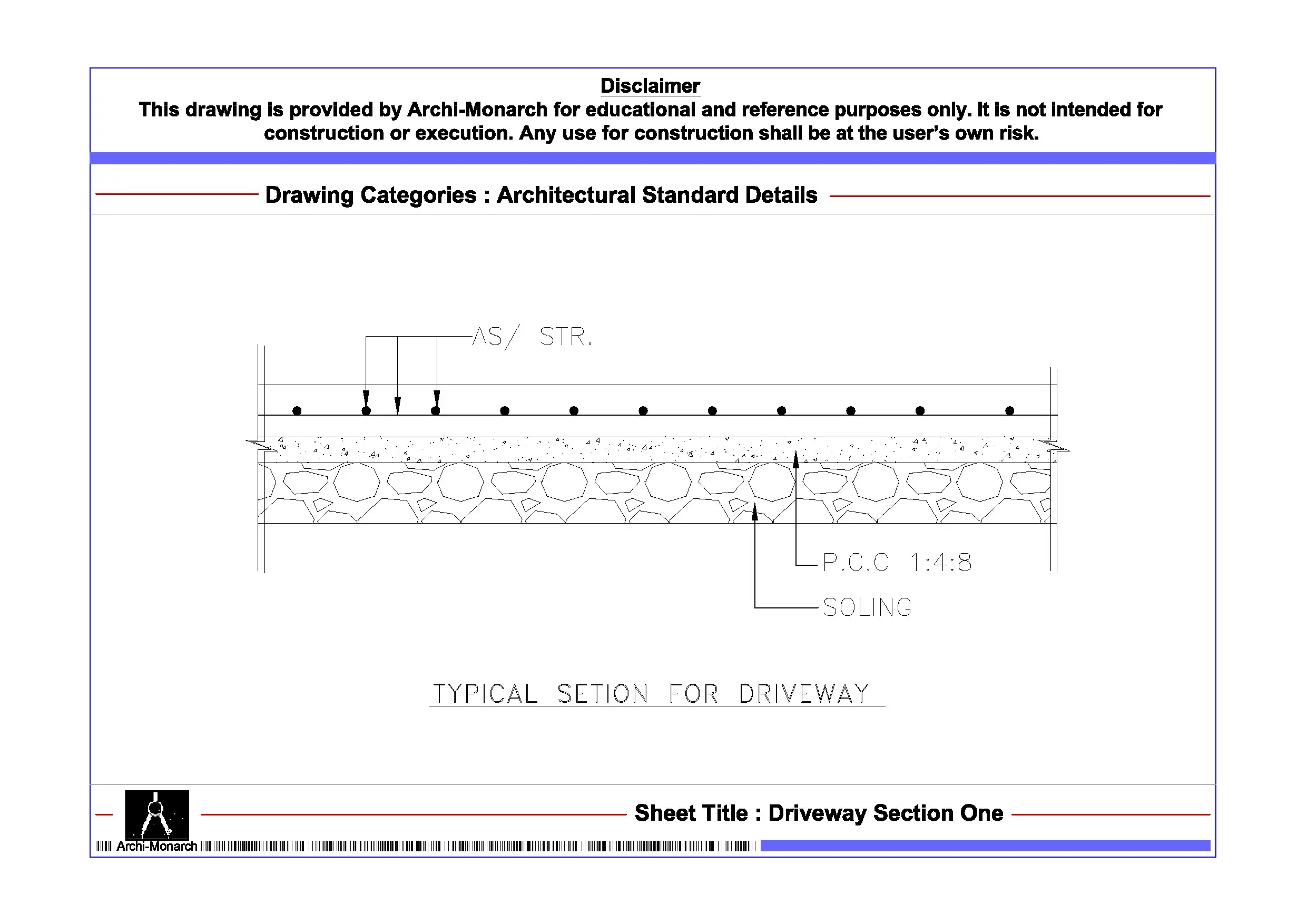

Driveway section detail drawing – 1
A driveway section detail drawing in construction is a technical illustration that shows a vertical cut through the driveway to reveal its construction layers and materials. This type of drawing is crucial for communicating how the driveway should be built, ensuring durability, proper drainage, and load-bearing performance.
The detail typically includes:
- Surface layer: The top visible layer, such as concrete, asphalt, pavers, or gravel.
- Base and sub-base layers: These are compacted layers of crushed stone or gravel that provide stability and prevent settling.
- Reinforcement: Materials like wire mesh or rebar may be shown if additional strength is needed, especially for concrete driveways.
- Slope or grading: A slight incline is usually included (e.g., 1-2%) to allow water to drain away from buildings and prevent pooling.
- Edge restraints or curbs: These help contain the driveway materials and maintain shape over time.
- Dimensions: Thickness of each layer, overall width, and depth, along with any specific site elevations.
This drawing helps contractors understand the exact specifications and layering sequence, ensuring the driveway is constructed according to structural and aesthetic requirements.
