The Wooden Door Detail is a professionally drafted architectural drawing provided in DWG format for educational and reference purposes. Wooden doors remain a popular choice in residential and commercial architecture because they offer warmth, durability, and design flexibility. Therefore, learning wooden door detailing plays an important role in architectural education and drafting practice.

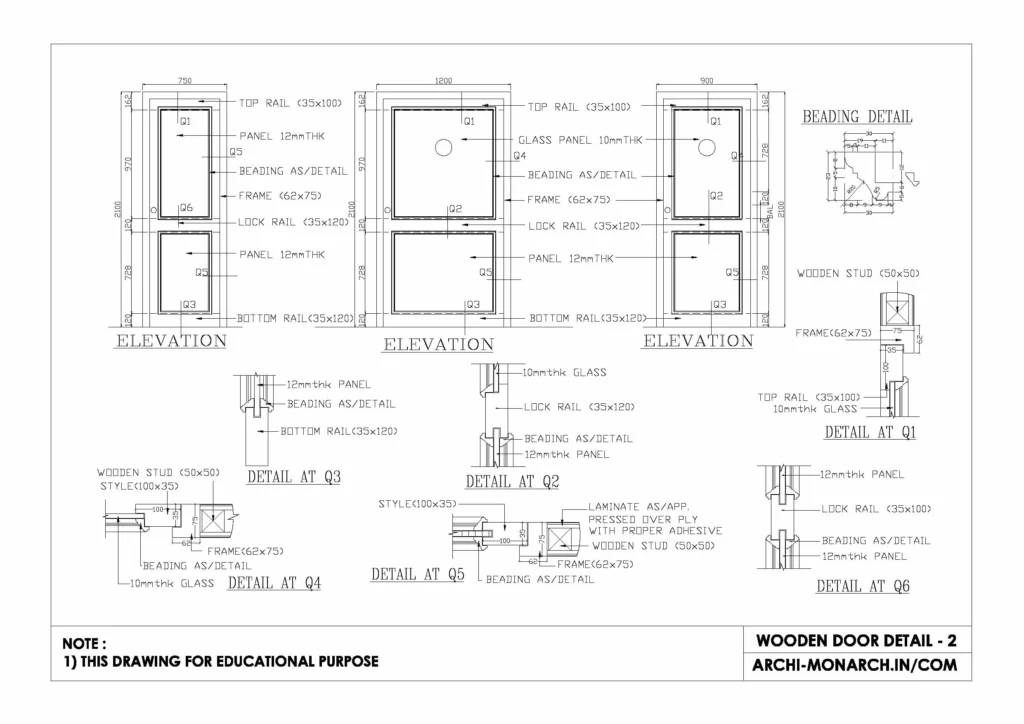

This architectural drawing clearly illustrates a typical wooden door assembly. It presents the door shutter, wooden frame, wall interface, and floor junction in a clean sectional view. In addition, the detail explains fixing methods, clearances, and alignment with finished floor levels. As a result, students gain practical understanding of how wooden doors integrate with wall finishes and interior elements.

Moreover, the drawing follows professional architectural drafting standards. It uses accurate dimensions, consistent line weights, and clear annotations. Consequently, users can read and interpret the detail easily for studio submissions or training exercises. Since the file remains fully editable, learners can modify shutter thickness, frame sizes, or finishing details to explore different design concepts and material applications.

The DWG format ensures seamless compatibility with AutoCAD and other commonly used CAD software. Therefore, users can insert this detail directly into architectural plans, sections, elevations, or door schedules without additional conversion. In addition, the drawing supports coordination between wooden doors, wall finishes, and flooring systems, which improves documentation clarity and technical accuracy.

Key Highlights:

Architectural wooden door detail in DWG format
Intended strictly for educational and reference use
Shows wooden door shutter, frame, and wall junction
Prepared using professional architectural drafting standards
Fully editable and AutoCAD-compatible CAD file
Suitable for architecture students and drafting learners
Useful for interior door and joinery detailing studies

This drawing does not serve as a construction-ready document. Always consult qualified architects or technical professionals before applying any detail in real projects.

Overall, this digital drawing acts as a valuable learning resource. It strengthens understanding of wooden door construction while supporting the development of architectural detailing and documentation skills.
