In architecture, a wing wall is a wall that extends outward from a main structure, typically at an angle or perpendicular to the primary wall. It serves both functional and aesthetic purposes.
Functionally, wing walls are often used to retain soil in areas like bridge abutments or to guide water flow in drainage structures. In building design, they can provide structural support, increase privacy, or shield areas from wind.
Aesthetically, wing walls can enhance the visual appeal of a building by adding depth and definition to the facade. They are commonly seen in both traditional and modern architecture, often framing entrances, staircases, or garden spaces.
If you want to know about the working drawing or boundary wall detail or gate detail, please click the link.
Image of Wing wall detail and downloadable (in DWG) link below

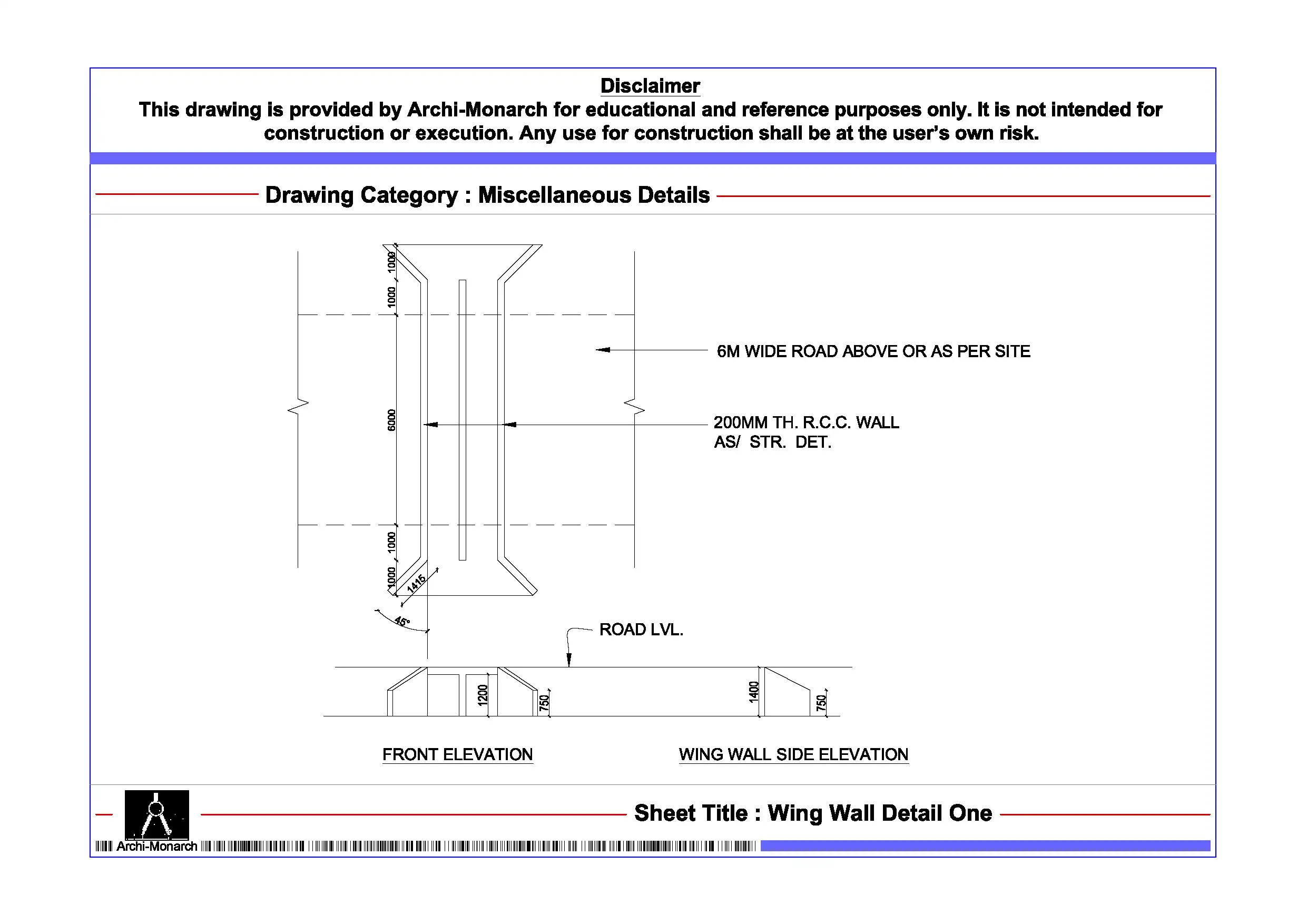

Wing wall detail drawing – 1
In construction, a wing wall detail drawing provides a precise representation of the dimensions, materials, and construction techniques used for building a wing wall. This type of drawing is essential in civil and structural engineering, especially in projects like bridges, retaining walls, culverts, and building foundations.
Key Elements of a Wing Wall Detail Drawing:
- Plan View – Shows the layout of the wing wall in relation to the main structure, including angles (typically 90°, 45°, or flared), length, and alignment.
- Elevation and Section Views – Display the height, thickness, slope (if any), and footing details. These views illustrate how the wing wall interacts with surrounding structures and terrain.
- Footing/Foundation Detail – Indicates depth, width, type of foundation (e.g., spread footing), reinforcement bars, and connection to the main wall or abutment.
- Reinforcement Details – Includes placement of rebars (steel reinforcement), spacing, bar diameter, hooks, laps, and anchorage, following structural design standards.
- Material Specifications – Notes on concrete grade (e.g., M25), waterproofing layers, drainage provisions (weep holes), and backfill material behind the wall.
- Construction Notes – Any instructions for slope protection, compaction requirements, or special treatments like geotextile layers or expansion joints.
These detailed drawings are vital for ensuring structural stability, proper drainage, and long-term durability of the wing wall under load conditions. They are typically prepared by civil or structural engineers using CAD software and reviewed before construction begins.
Our tips to help you improve your architectural Wing wall detailing.
