In architecture, an entrance platform refers to a raised or leveled area that leads to the main entrance of a building. It serves both functional and aesthetic purposes. Functionally, it provides a transition space between the exterior ground level and the interior floor level, often accommodating steps or ramps to ensure accessibility.
Aesthetically, the entrance platform can enhance the visual appeal of a structure, offering a sense of arrival and emphasizing the entry point.
Materials, scale, and design details of the platform often reflect the overall architectural style, contributing to the building’s identity and presence.
If you want to know about the staircase detail or toilet detail or miscellaneous detail, please click the link.
Image of Entrance platform detail and downloadable (in DWG) link below

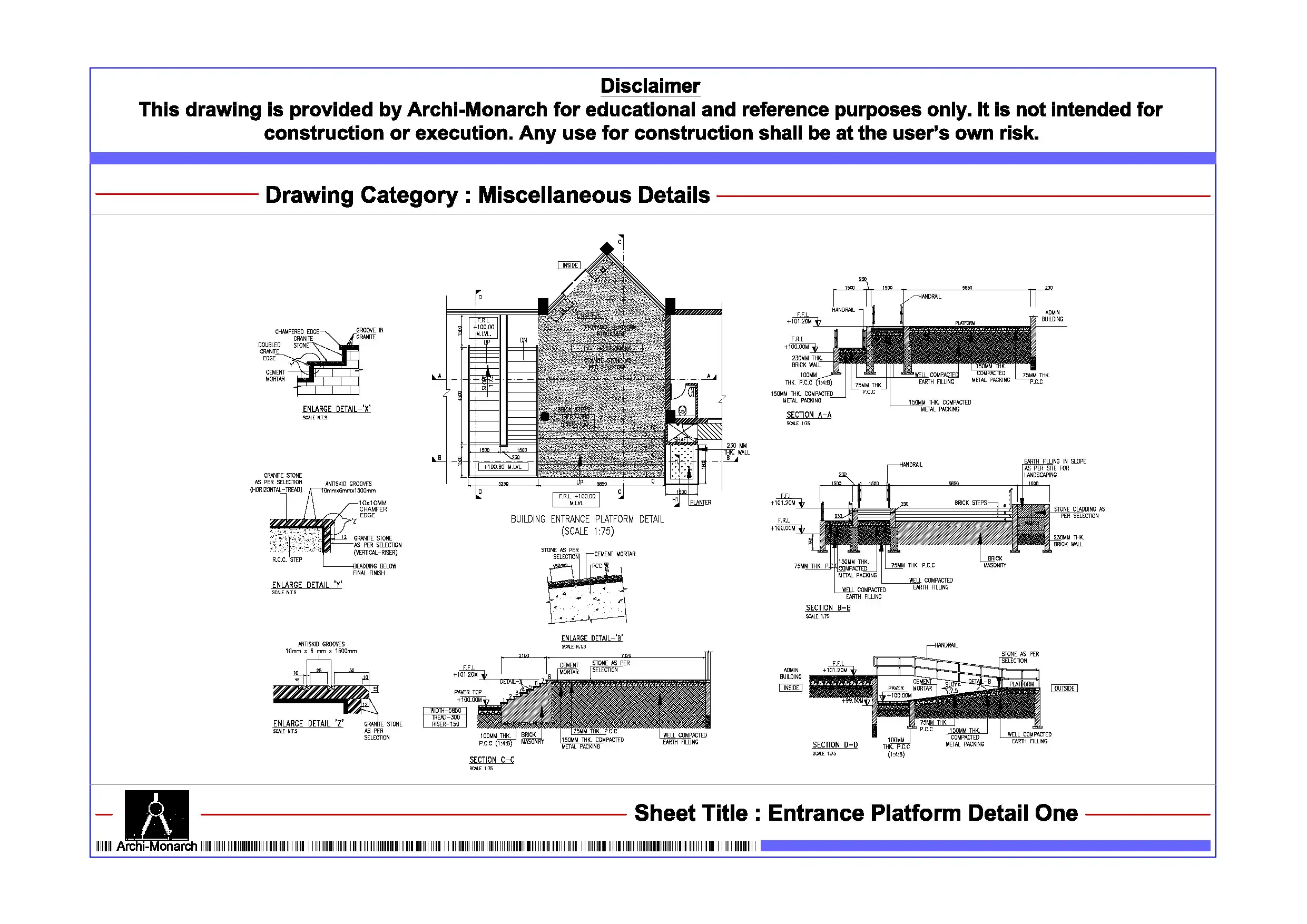

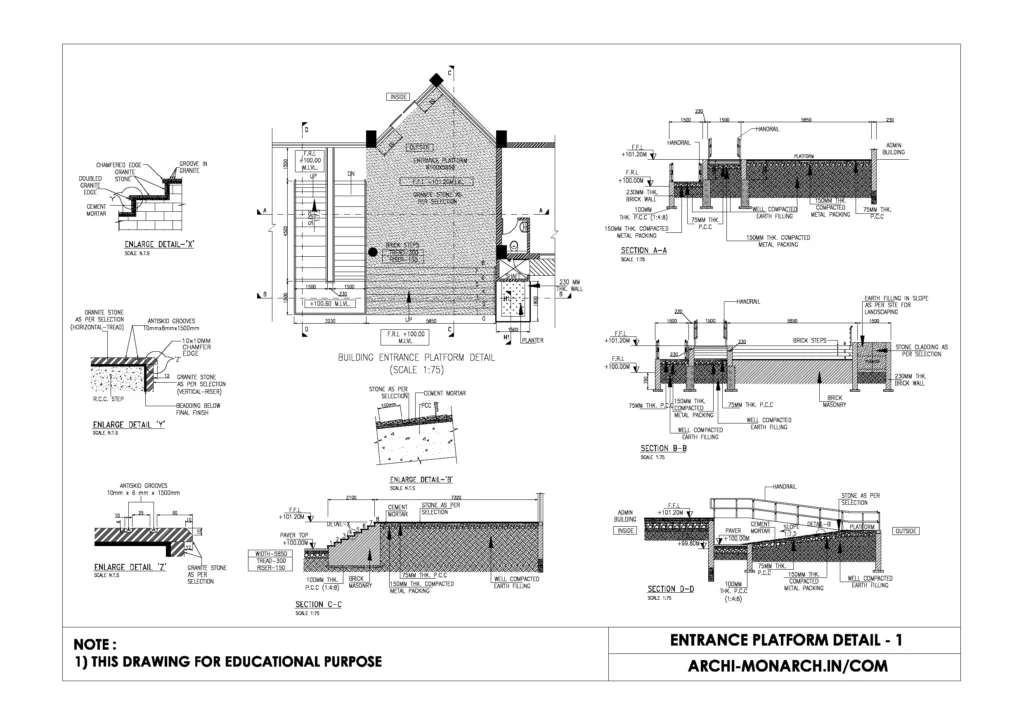

Entrance platform detail drawing – 1
In construction, an entrance platform detail drawing is a technical representation that shows the specific design, materials, and construction methods used for building the entrance platform of a structure.
This detail typically includes the following key elements:
- Plan View and Sectional Views: The drawing shows both top-down (plan) and cross-sectional views to clarify layout, elevation changes, and structural relationships.
- Materials: It specifies materials such as concrete, stone, tile, brick, or wood. For accessibility, slip-resistant surfaces and durable finishes are often included.
- Dimensions: Exact measurements for width, depth, height, and slope (if any) are included. This ensures compliance with building codes and ADA (Americans with Disabilities Act) standards, where applicable.
- Edge and Finish Details: The edges (e.g., bullnose, chamfered) and surface treatments (e.g., troweled, brushed) are shown for both safety and aesthetics.
- Drainage: Details may include slopes or drains to prevent water accumulation on the platform surface.
- Integration with Other Elements: The drawing often illustrates how the platform connects to stairs, ramps, railings, walls, and door thresholds.
Such detail drawings are essential for accurate on-site construction, helping contractors, engineers, and architects ensure the design is executed properly and safely.
