An upright sprinkler head is a type of fire sprinkler commonly used in architectural design for fire protection systems, particularly in areas with exposed ceilings, industrial spaces, or warehouses.
It is installed with the head pointing upward, allowing water to be sprayed in a circular pattern that directs water both downward and outward. This design is especially effective for covering obstructions and protecting high ceilings, as the water can reach areas that might otherwise be difficult to cover.
Upright sprinkler heads are often preferred in spaces where piping runs along the ceiling, and they play a crucial role in enhancing fire safety by ensuring even water distribution across large or complex areas.
If you want to know about the kitchen detail or staircase detail or water tank detail, please click the link above.
Image of Upright sprinkler head detail and downloadable (in DWG) link below

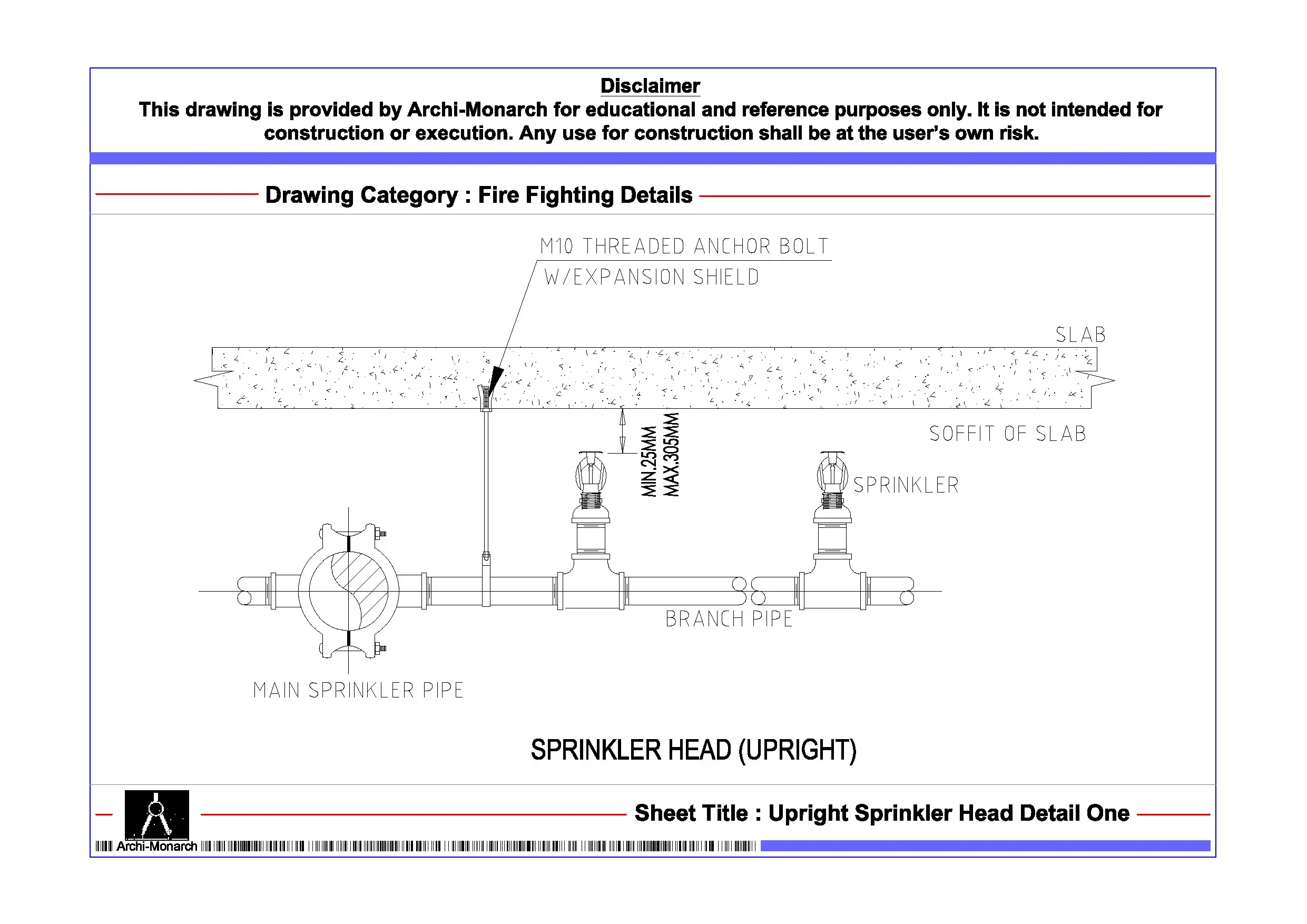

Upright sprinkler head detail drawing – 1
An upright sprinkler head detail drawing in construction typically shows the installation components and dimensions of the sprinkler system.
It usually includes:
- Sprinkler Head: The upright head itself, mounted with the deflector facing upward.
- Branch Line/Piping: The pipe supplying water, usually shown connected to the sprinkler head with a threaded connection.
- Threaded Connection or Coupling: Details of the connection between the pipe and the sprinkler head, often a threaded fitting.
- Escutcheon Plate (Optional): In some cases, a plate is shown at the penetration point through the ceiling.
- Deflector: A small plate at the top of the sprinkler head, which helps distribute water evenly.
- Dimensions: Vertical clearances from structural elements and horizontal spacing guidelines, ensuring proper coverage.
- Labels and Annotations: Notes on materials, pipe sizes, clearance distances, and installation standards.
- Section View: A cross-sectional view can illustrate the assembly, showing the relationship between the sprinkler head and surrounding structural elements.
- Detail Callouts: Additional close-up views or callouts may highlight critical areas, such as sealant applications or special mounting conditions.
Our tips to help you improve your architectural Upright sprinkler head detailing.
