In architecture, a planter section refers to a designated area, often integrated into the design of buildings or outdoor spaces, where plants or greenery are placed. This section can be built into walls, terraces, balconies, or even rooftops, and serves both aesthetic and functional purposes.
Planter sections contribute to the visual appeal of a structure, promote a connection with nature, and can enhance environmental performance by providing insulation, reducing heat islands, and improving air quality.
Architecturally, they are carefully designed to manage drainage, support plant growth, and complement the overall layout and style of the space.
If you want to know about the working drawing or boundary wall detail or gate detail, please click the link.
Image of Planter section detail and downloadable (in DWG) link below

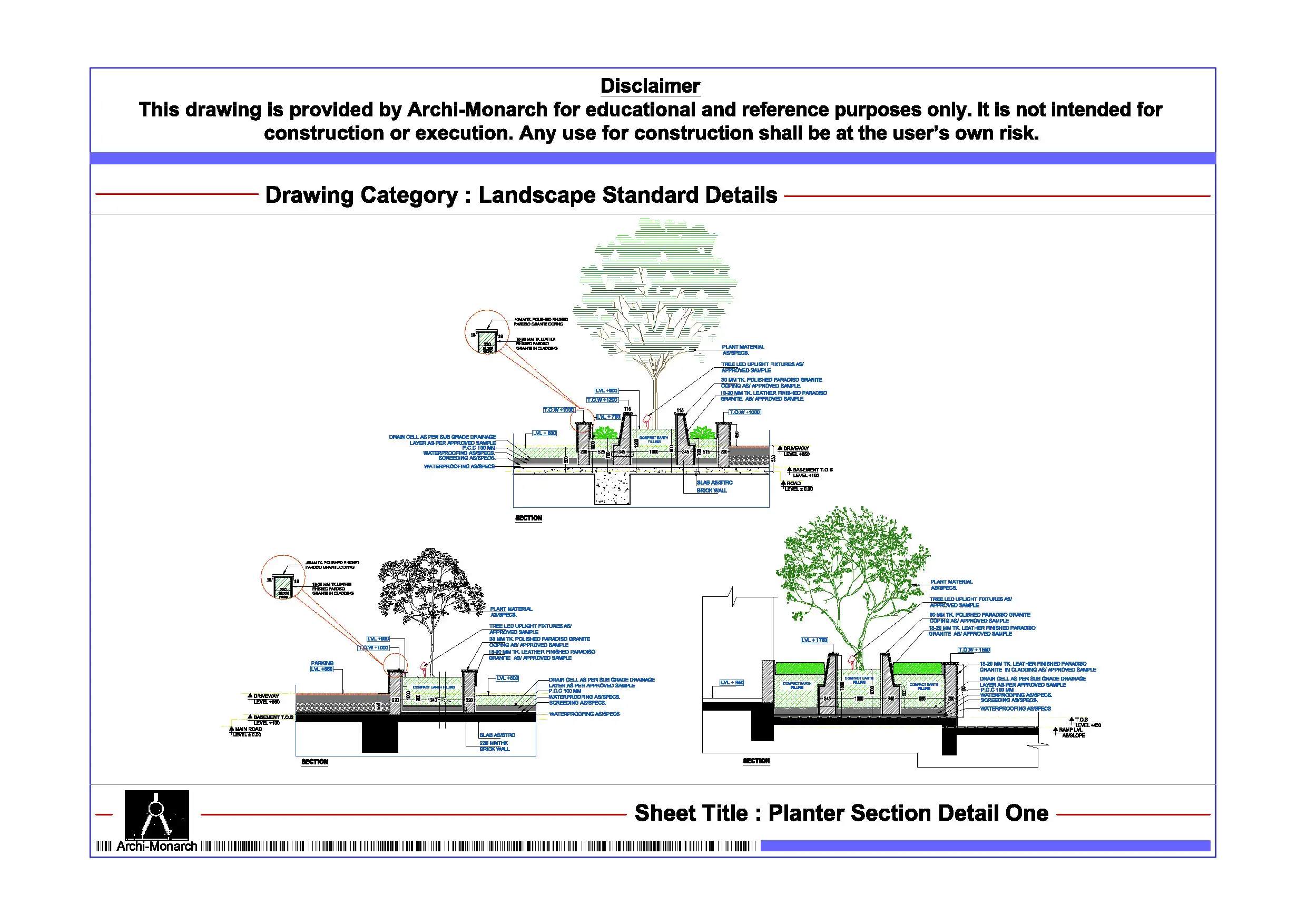

Planter section detail drawing – 1
A planter section detail drawing in construction is a technical representation that shows how a planter is built, including all necessary components, materials, and dimensions. This detailed section is essential for ensuring proper construction, functionality, and durability of the planter within the architectural design.
Here are the key elements typically included in a planter section detail drawing:
Layers of Construction:
- Structural Base: Concrete slab or beams that support the planter.
- Waterproofing Membrane: Prevents water from seeping into the structure.
- Protection Board: Protects the waterproofing layer from damage.
- Drainage Layer: Usually gravel or drainage mat to allow excess water to escape.
- Filter Fabric (Geotextile): Prevents soil from clogging the drainage layer.
- Soil Layer: Engineered soil mix suitable for plant growth.
- Mulch: Helps retain moisture and reduce weed growth.
Drainage Details:
- Weep Holes or Drain Pipes: Integrated to ensure water does not accumulate and cause root rot or structural damage.
- Slope Indication: The base is often sloped slightly toward the drainage point.
- Waterproofing & Root Barrier:
- To protect the structure from water and prevent roots from penetrating the waterproofing membrane.
Material Specifications:
- Notes on materials used for walls, insulation, finishes, etc.
Reinforcement Details:
- If the planter is large or structural, reinforcement (like steel bars) may be shown.
Planter Wall Finish:
- Exterior and interior finish materials, such as plaster, tile, or stone cladding.
Planting Indication:
- Sometimes the type of vegetation or planting depth is noted to guide the landscaper.
This section drawing is critical to coordinate with structural, landscape, and waterproofing consultants to ensure long-term performance and integration with the overall design.
Our tips to help you improve your architectural Planter section detailing.
