Landscape railings are barriers that are used to enclose outdoor spaces, such as gardens or yards. They can be made from a variety of materials, including wood, metal, and plastic, and are used for both decorative and practical purposes.
Landscape railings can help to define the boundaries of a space, provide safety and security, and add a decorative touch to the landscape. They can also be used to enclose pools or other areas that may be hazardous to children or pets.
There are many different styles and designs of landscape railings available, and choosing the right one for your space will depend on your personal preferences and the specific needs of your landscape.
Image of landscape railing detail and downloadable (in DWG) link below

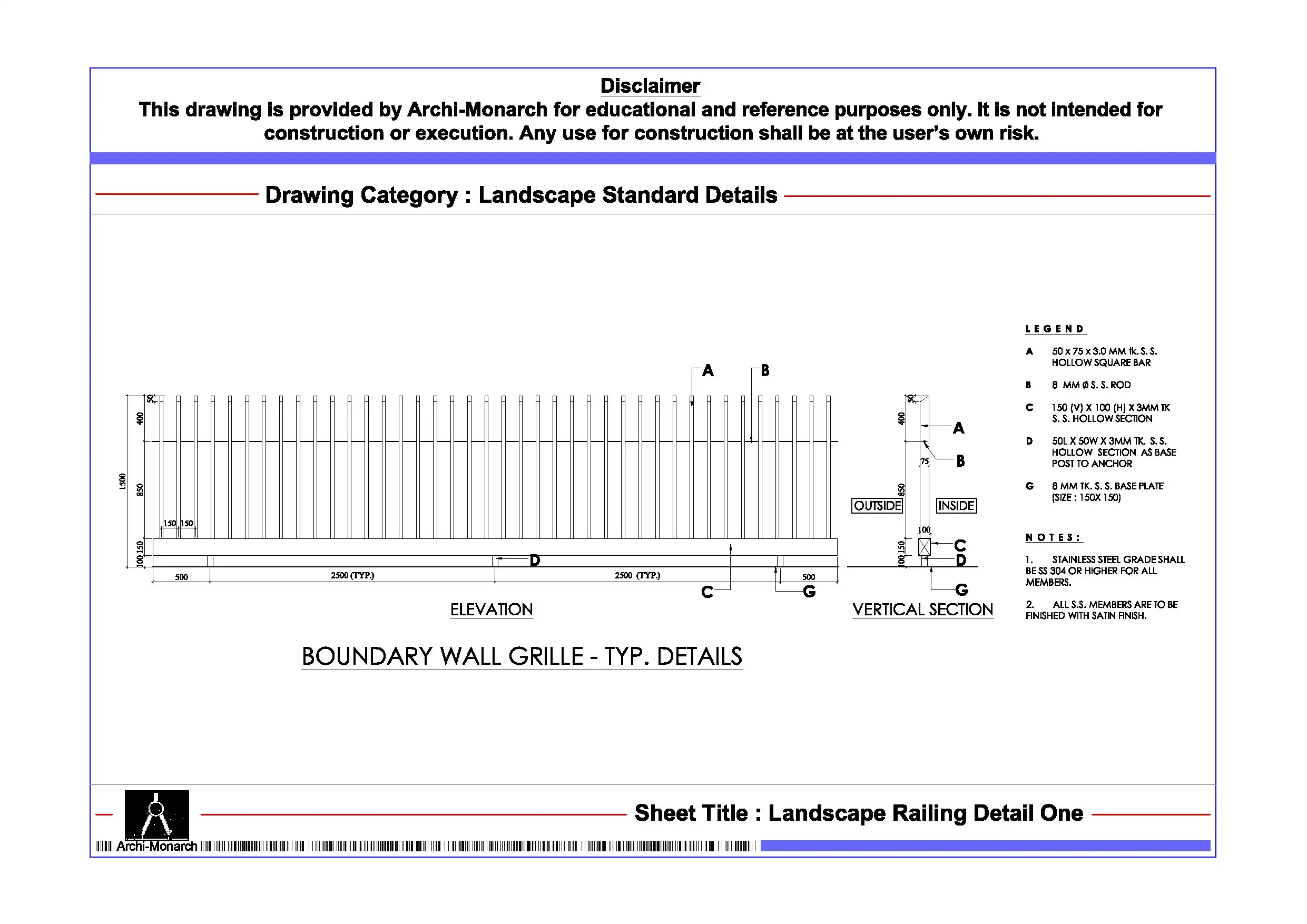

Landscape railing detail drawing – 1
A landscape railing detail drawing is a technical drawing that shows the specific details and dimensions of a landscape railing design. It may include views of the railing from multiple angles, as well as cross-sectional views that show how the railing is constructed.
Landscape railing detail drawings are typically used by contractors and landscape architects to build the railing according to the design specifications.
They may also include information about the materials and finishes to be used, as well as any special requirements or considerations for the installation of the railing.
Here are a few more things that might be included in a landscape railing detail drawing:
- Dimensions: The drawing should include precise dimensions for each part of the railing, including the width and height of the railing itself, as well as the dimensions of any posts, brackets, or other supporting elements.
- Materials: The drawing should specify the type of materials to be used for the railing and any supporting elements, such as wood, metal, or plastic. It may also include information about the finish or coating to be applied to the railing.
- Load-bearing capacity: If the railing is being designed to support the weight of people or objects, the drawing should include information about the load-bearing capacity of the railing and its supporting elements.
- Anchoring: The drawing should detail how the railing will be anchored to the ground or other supporting structure. This may include information about the type of anchors to be used, as well as the spacing and placement of the anchors.
- Any special considerations or requirements: The drawing may include notes or details about any special considerations or requirements that must be taken into account during the installation of the railing, such as the need to follow certain building codes or regulations.
Our tips to help you improve your architectural (landscape) railing detailing.
