A guest room in architecture refers to a designated space within a residential or hospitality building intended for accommodating visitors or temporary occupants.
In residential design, the guest room is typically located in a quiet area of the home to ensure privacy and comfort for guests, often furnished with a bed, storage solutions, and basic amenities.
In hotels or guest houses, guest rooms are the primary units offered for lodging, designed with careful attention to comfort, aesthetics, and functionality.
These rooms may vary in size and style depending on the type and standard of the accommodation but commonly include an en-suite bathroom, seating area, and access to services such as housekeeping.
The design of guest rooms balances hospitality with practicality, creating a welcoming environment that reflects the overall architectural theme of the building
If you want to know about the kitchen detail or toilet detail or water tank detail, please click the link.
Image of Guest room detail and downloadable (in DWG) link below

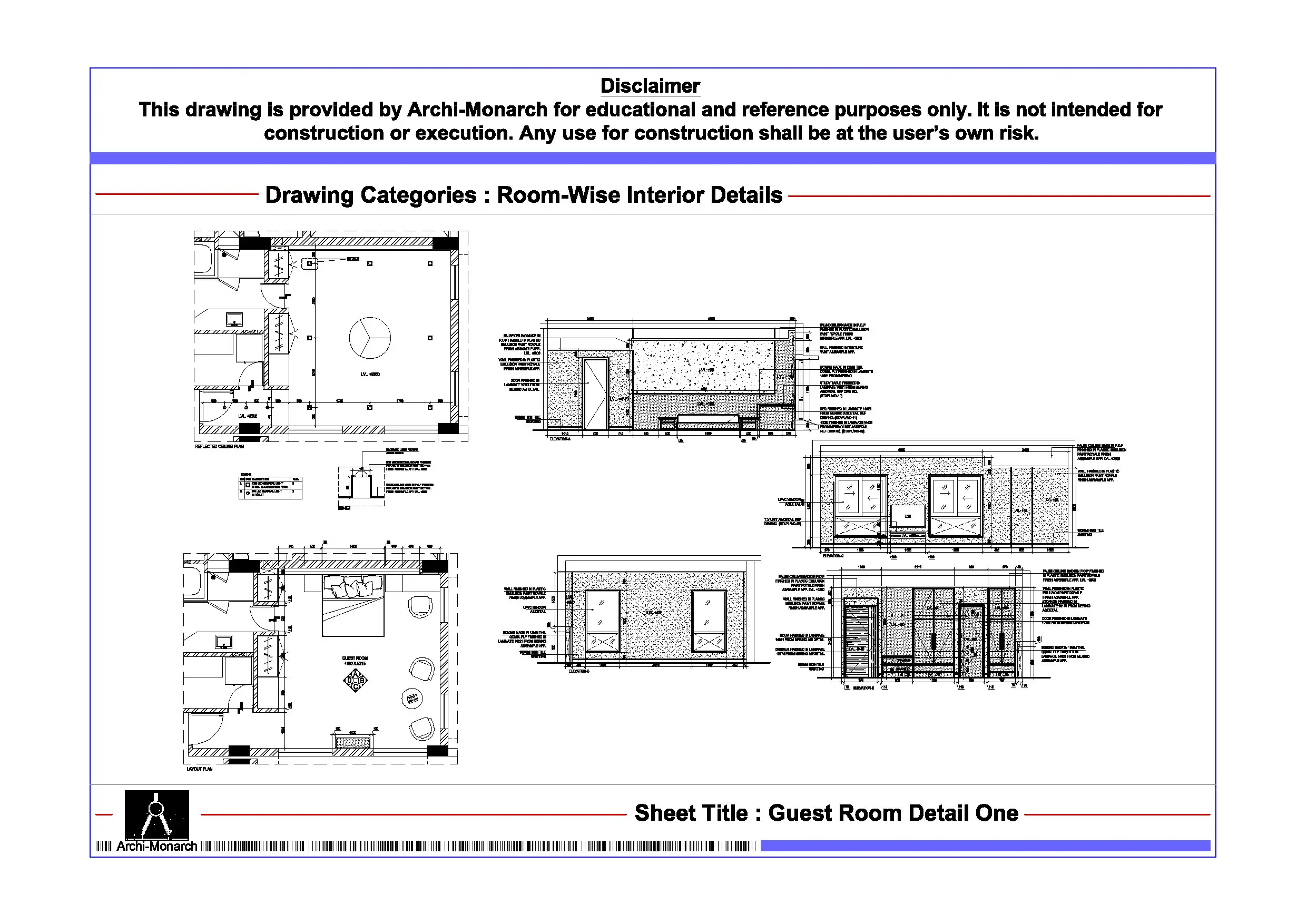

Guest room detail drawing – 1
In construction, a guest room detail drawing provides precise, scaled illustrations of the architectural elements, finishes, and components specific to a guest room. These drawings are essential for communicating design intent and construction requirements to builders, contractors, and interior finish teams.
A typical guest room detail drawing may include:
- Plan View: A top-down layout showing the arrangement of furniture (like bed, wardrobe, desk), circulation space, and access points such as doors and windows.
- Elevations: Wall views that detail built-in elements such as wardrobes, headboards, shelving, and electrical outlet placements.
- Sections: Cross-sectional views that reveal wall layers, ceiling design (such as false ceiling or lighting troughs), and floor buildup, often showing materials and insulation.
- Finishes Schedule: A chart or annotation identifying surface finishes, such as wall paint types, flooring materials (e.g., tiles, wood, carpet), and ceiling treatments.
- Fixture and Fittings Detail: Precise placement and specifications for items like lighting fixtures, power sockets, HVAC vents, and switches, often coordinated with MEP (Mechanical, Electrical, and Plumbing) drawings.
- Door and Window Details: Specifications and detailed drawings of door and window types, sizes, finishes, and hardware.
- Furniture Detail: Custom furniture design or millwork drawings, especially for built-ins like wardrobes or TV units, showing dimensions, materials, and joinery.
These drawings ensure that every element of the guest room aligns with the design vision and functional standards, helping avoid errors during construction and streamlining project execution.
Our tips to help you improve your architectural Guest room detailing.
