Description
The Glass Window Fixing Detail is a professionally prepared architectural glazing drawing in DWG format. It serves educational and reference purposes. Window glazing systems play a key role in building envelopes. Therefore, they provide natural light, ventilation, and weather protection. As a result, designers use proper fixing systems to ensure durability and performance.

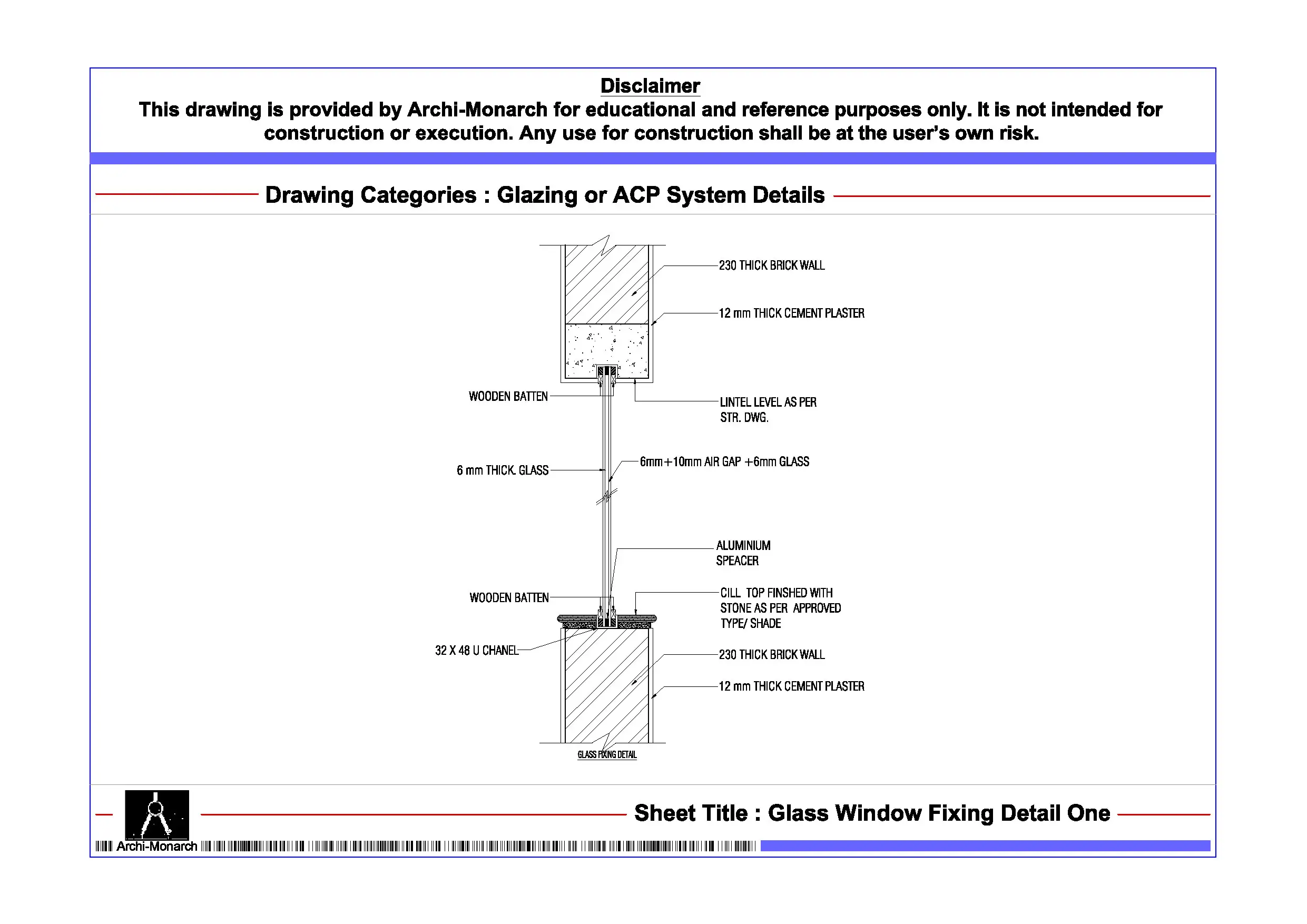

This DWG file provides a detailed glass window fixing system. In addition, it suits residential buildings, commercial projects, offices, and institutional developments. The drawing includes glass panels, frame sections, fixing brackets, sealant joints, and edge detailing. Furthermore, it allows users to study installation techniques and glazing methods. Moreover, it helps define performance aspects such as weather resistance, insulation, and structural stability. Consequently, users can design efficient and reliable window systems.
Moreover, the drawing follows professional architectural and glazing standards. It maintains proper scale, clear annotations, and organized layers. As a result, it ensures clarity and smooth workflow. Therefore, students can easily understand window fixing and façade detailing principles. Similarly, professionals can use it as a reference for working drawings and execution details. The file remains fully editable, so users can customize it as required. In addition, they can adapt it to suit different window types and project conditions.
The DWG format ensures compatibility with AutoCAD and similar drafting software. Thus, users can open, edit, and integrate the drawing easily. This also helps save time during design development. Furthermore, it supports coordination with architectural, structural, and façade drawings.
This glass window fixing detail suits various project types. For example, designers use it in residential windows, office façades, commercial buildings, and institutional projects. Overall, it supports both academic learning and professional workflows.
Key Highlights:
- Glass window fixing detail drawing in DWG format
- Intended for educational and reference use only
- Includes glass panels, frames, and fixing details
- Suitable for window glazing and façade design
- Helps define durability, weather resistance, and performance
- Fully editable and easy to customize
- Compatible with AutoCAD and similar software
- Suitable for students and professionals
This drawing is not a construction-ready document. Therefore, always consult qualified professionals before using it in real projects.
