In architectural design, considerations for cleaning bedpans and urine bottles are crucial in healthcare and caregiving environments to ensure hygiene, efficiency, and patient dignity.
Designated areas, such as sluice rooms or utility rooms, should be equipped with specialized fixtures like bedpan washers, slop sinks, or automated disinfection units. Proper ventilation and drainage systems are essential to control odors and prevent contamination. Surfaces should be non-porous and easy to sanitize, minimizing bacterial growth.
Thoughtful placement of these facilities near patient rooms improves workflow for caregivers while maintaining a sterile and organized environment. Integrating these elements into the architectural plan enhances overall hygiene and supports infection control protocols in medical and caregiving settings.
If you want to know about the kitchen detail or miscellaneous detail or water tank detail, please click the link.
Image of Cleaning bed pan and urine bottle detail and downloadable (in DWG) link below

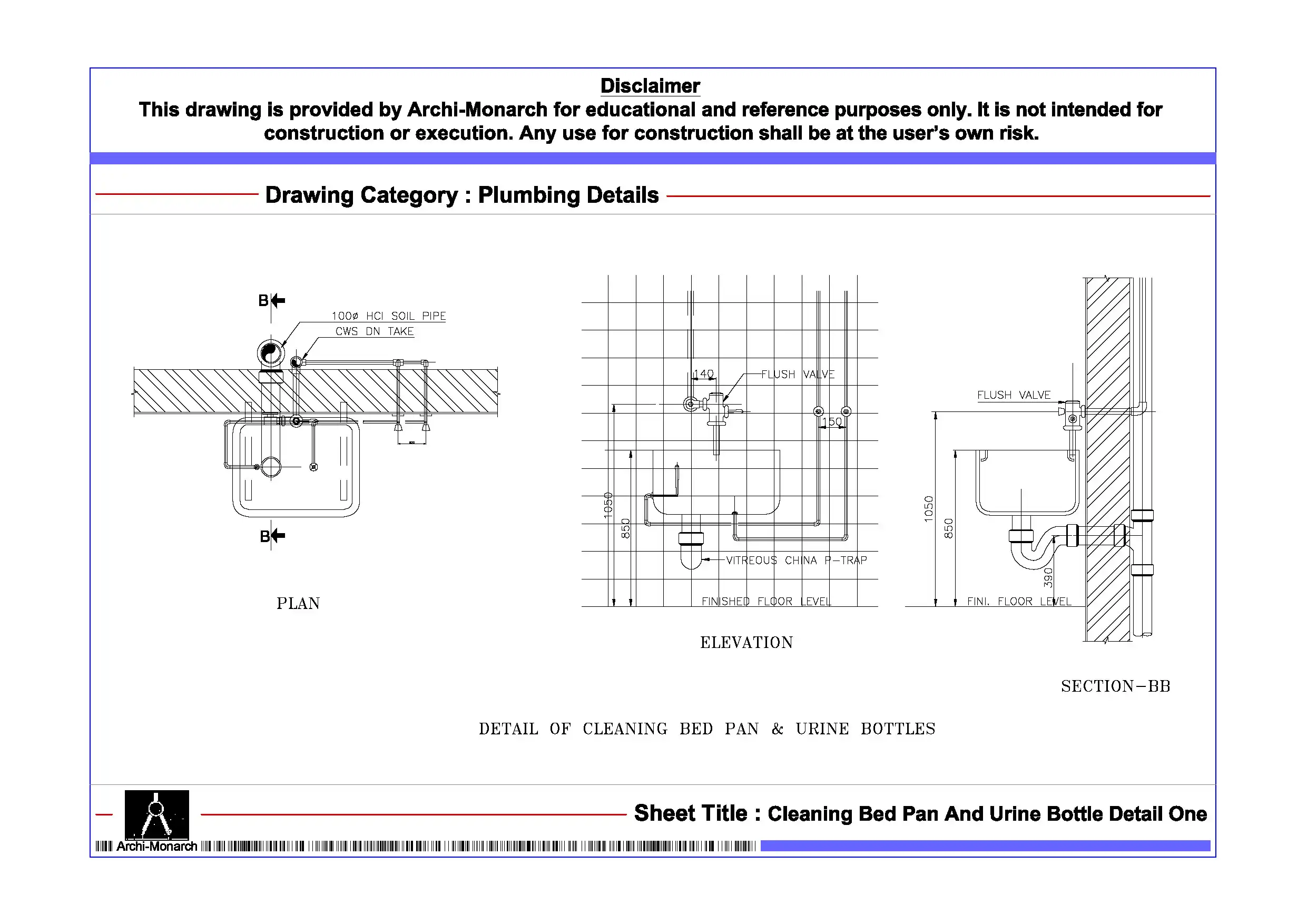

Cleaning bed pan and urine bottle detail drawing – 1
A detailed description of a construction drawing for cleaning bedpans and urine bottles in a healthcare setting would include the following elements:
Room Layout:
- Sluice/Utility Room: A dedicated space close to patient rooms with easy access for staff.
- Dimensions: Typically around 1.8m x 2.4m or larger, depending on facility size and workflow.
Fixtures:
- Bedpan Washer/Disinfector: A wall-mounted or floor-standing unit with a hinged lid for inserting bedpans and bottles. Include water supply and drainage connections.
- Slop Hopper (Slop Sink): A deep, stainless steel or ceramic sink with a flushing rim to prevent splashing. Position at a comfortable height for staff, about 850mm from the floor.
- Handwashing Sink: Separate from the slop hopper, equipped with touchless faucets and soap dispensers.
Plumbing:
- Water Supply: Hot and cold water supply with thermostatic mixing valves to prevent scalding.
- Drainage: Connect fixtures to a dedicated soil pipe. Include floor drains with trap primers to maintain water seals.
Ventilation:
- Install an exhaust fan to maintain negative pressure, ensuring odors don’t spread. Air changes should be about 6-12 per hour, as per healthcare standards.
Finishes:
- Walls and Floors: Non-porous, chemical-resistant materials such as ceramic tiles or vinyl sheeting.
- Corners and Joints: Coved corners to avoid dirt buildup and ease cleaning.
Additional Features:
- Storage: Shelving or cabinets for clean bedpans, urine bottles, and cleaning supplies.
- Signage: Clear labels and instructions for infection control procedures.
Our tips to help you improve your architectural Cleaning bed pan and urine bottle detailing.
