Bed Detail One

Description

The Bed Detail provides a professionally prepared architectural interior standard drawing set in DWG format for educational and reference purposes. Beds form one of the most essential elements in residential and hospitality interiors, where comfort, ergonomics, and design must align effectively. Designers must plan bed units carefully to ensure proper dimensions, structural stability, and integration with surrounding interior elements. Therefore, architecture students and drafting professionals must understand bed detailing to create functional and well-designed bedroom interiors.

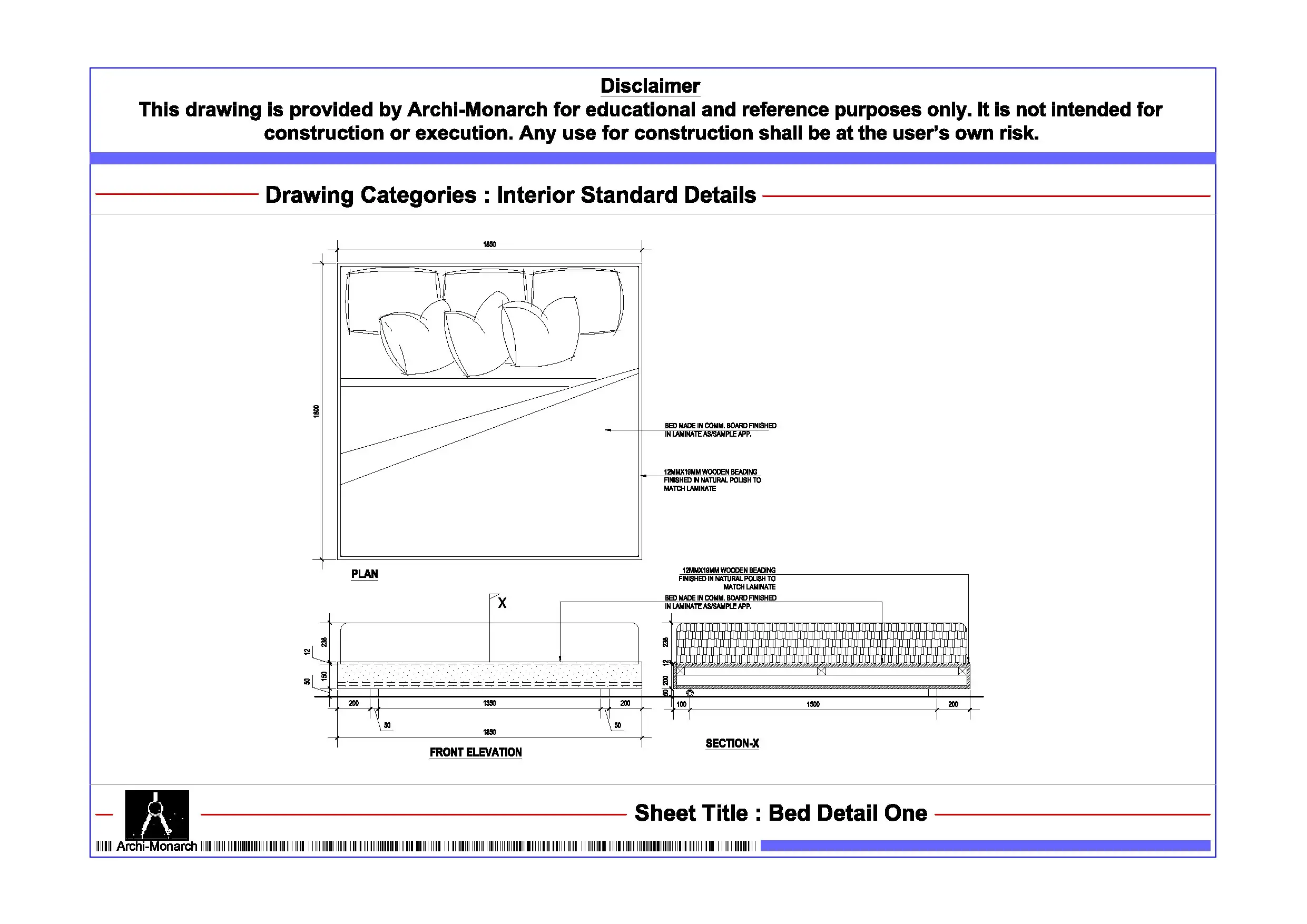

This architectural CAD package clearly presents bed design through detailed drawings. It includes plan layouts, sectional details, elevations, and construction-specific information in a structured and coordinated format. The drawing set explains bed dimensions, frame structure, mattress positioning, and circulation space around the bed. It also highlights key components such as headboards, side tables, storage units, and support systems. In addition, it covers material finishes, joinery details, and construction techniques that enhance durability and aesthetic appeal. As a result, users gain practical insight into designing bed units that improve comfort, usability, and spatial efficiency.

Moreover, the drawings follow professional architectural and interior drafting standards. They use accurate dimensions, clear line hierarchy, and well-organized annotations. Consequently, students can easily interpret the drawings and apply similar detailing techniques in academic projects and CAD exercises. Users can edit the files freely to modify dimensions, adjust design configurations, or refine detailing to explore different variations.

The DWG format ensures seamless compatibility with AutoCAD and other commonly used CAD software. Therefore, users can directly integrate these drawings into project workflows, presentations, and documentation sets without additional conversion. In addition, the drawing set supports coordination between interior layouts, furniture design, and service planning, which improves drafting clarity and technical accuracy.

Key Highlights:

• Bed detail drawing in DWG format
• Intended strictly for educational and reference use
• Includes plan, section, elevation, and construction details
• Shows bed dimensions, structure, and layout integration
• Covers headboards, storage units, materials, and joinery details
• Prepared using professional architectural and interior drafting standards
• Fully editable and AutoCAD-compatible CAD files
• Suitable for architecture students and drafting learners

This drawing set does not serve as a construction-ready document. Always consult qualified architects and interior designers before applying any detail in real projects.
