Tiling Over Base Plat Detail One

Description

The Tiling Over Base Slab Detail is a professionally drafted architectural drawing provided in DWG format for educational and reference purposes. Floor tiling over a structural slab requires careful coordination of layers to ensure durability, level consistency, and proper surface finish. Therefore, understanding this flooring detail is essential for architecture students and early-career professionals.

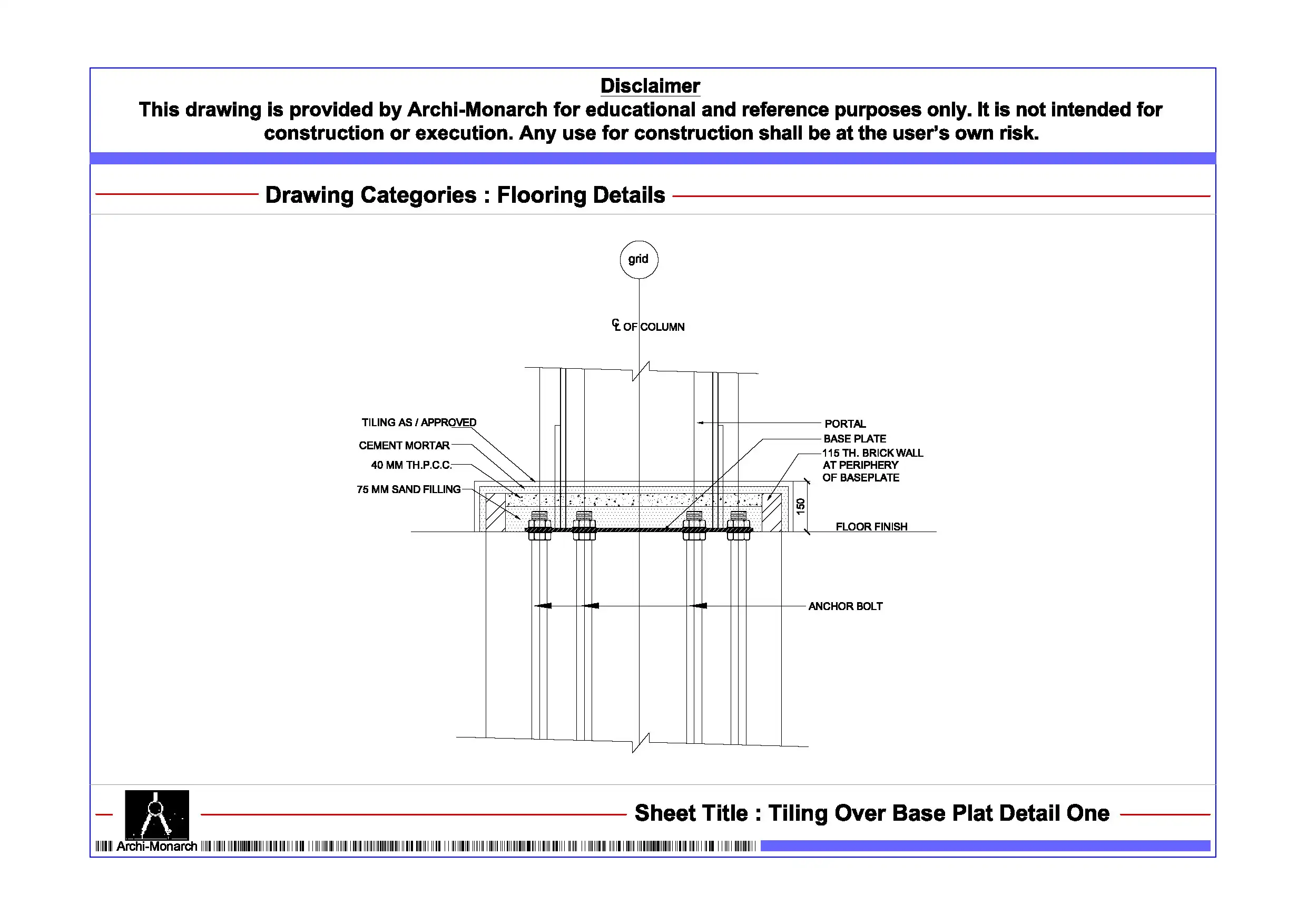

This architectural drawing clearly illustrates a typical floor tiling build-up over a concrete base slab. It shows the structural slab, screed or bedding mortar, tile layer, adhesive, and finishing joints in a clear sectional format. In addition, the detail explains level control and alignment with adjacent floor finishes. As a result, learners gain a practical understanding of how tiled floors are constructed in residential and commercial buildings.

Moreover, the drawing follows professional architectural drafting standards. It uses precise line weights, accurate dimensions, and well-organized annotations. Consequently, students can read the detail easily and replicate similar layouts in academic studio drawings. Because the file remains fully editable, users can modify tile thickness, screed depth, or finish levels to suit different design scenarios.

The DWG format ensures smooth compatibility with AutoCAD and other commonly used CAD software. Therefore, users can directly insert this detail into plans, sections, or interior layouts without additional file conversion. In addition, the drawing supports coordination between flooring, walls, and skirting elements, which improves drafting accuracy and technical clarity.

Key Highlights:

• Architectural tiling detail over base slab in DWG format
• Intended strictly for educational and reference use
• Shows floor tiling layers and base slab build-up
• Prepared using professional architectural drafting standards
• Fully editable and AutoCAD-compatible CAD file
• Suitable for architecture students and beginner professionals
• Useful for interior flooring and finishing studies

This drawing does not serve as a construction-ready solution. Always consult qualified architects or technical experts before applying any detail to real projects.

Overall, this digital drawing functions as a valuable learning resource. It strengthens understanding of tiled flooring systems while supporting the development of architectural detailing and documentation skills.
