A storm water chamber in plumbing and architecture is a structure designed to manage and control the flow of rainwater and surface runoff, preventing flooding and minimizing erosion.
It typically collects water from roofs, pavements, and other impervious surfaces, directing it into underground chambers where it can be temporarily stored or gradually infiltrated into the ground. These chambers often connect to larger drainage systems or natural water bodies, ensuring proper water management in urban and suburban environments.
By controlling the flow rate and filtering debris, storm water chambers help protect infrastructure, reduce the risk of waterlogging, and contribute to sustainable water management practices.
If you want to know about the kitchen detail or miscellaneous detail or water tank detail, please click the link.
Image of Storm water chamber detail and downloadable (in DWG) link below

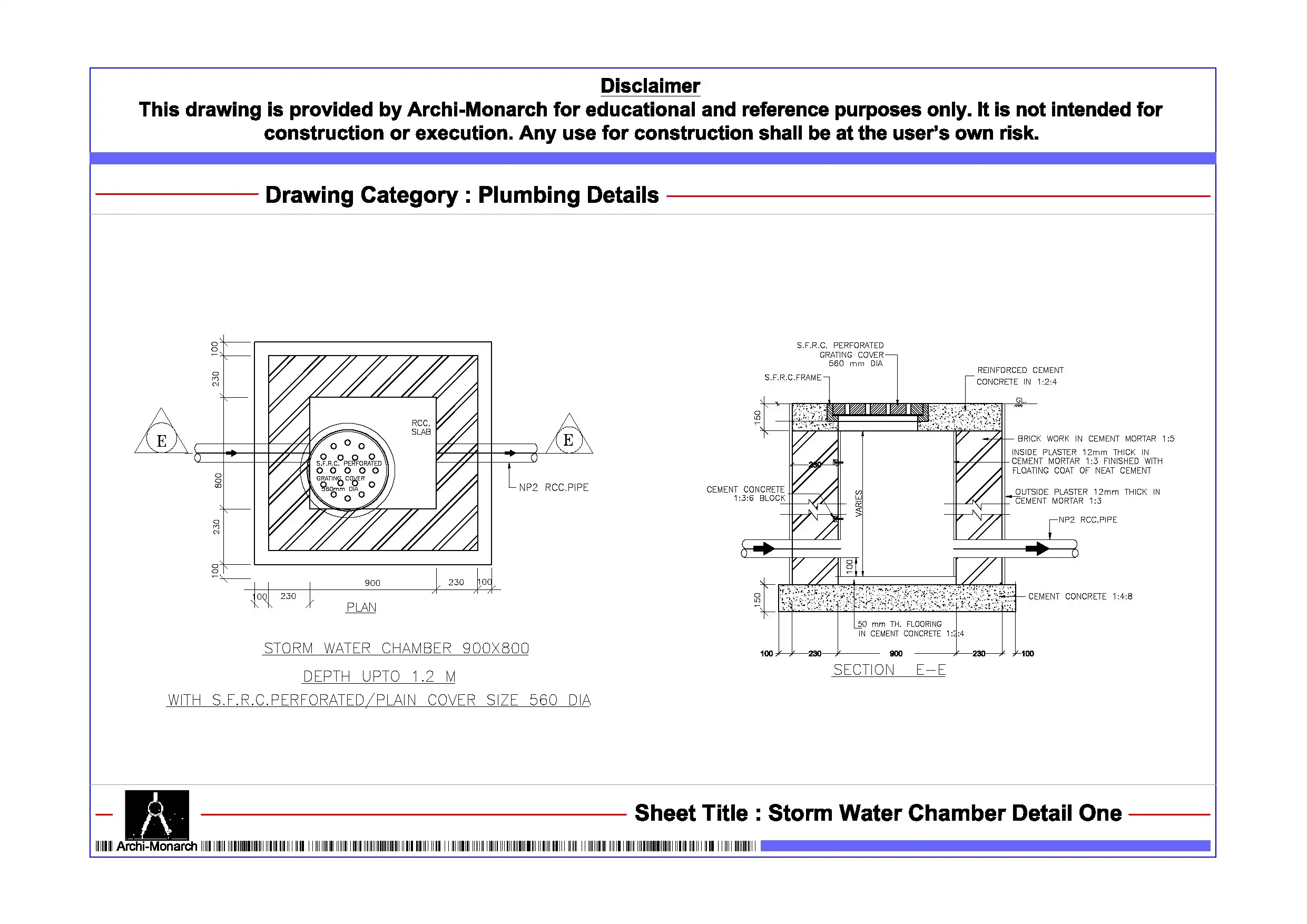

Storm water chamber detail drawing – 1
A storm water chamber detail drawing in construction typically includes several key components and annotations to ensure proper installation and functionality. While I can’t provide an image directly here, I’ll describe the elements clearly so you can visualize or draft them:
Inlet and Outlet Pipes:
- Inlet pipe to direct rainwater or surface runoff into the chamber.
- Outlet pipe to discharge water into the main drainage system or a soakaway pit.
Chamber Body:
- Constructed from concrete, plastic, or fiberglass, with dimensions suited to handle the expected water flow.
- Reinforced concrete walls and base for durability and structural integrity.
Grating or Cover:
- Heavy-duty cast iron or plastic cover for maintenance access and debris prevention.
- Lockable options for security in public spaces.
Silt Trap and Debris Screen:
- Positioned before the outlet to catch sediments and prevent clogging downstream.
Invert Level:
- The internal floor slope ensures smooth water flow towards the outlet.
Ventilation:
- Optional air vents to prevent vacuum formation and allow odor release.
Annotations and Dimensions:
- Indicate pipe diameters, chamber depth, and slope percentages.
- Include material specifications, waterproofing details, and reinforcement bar placements if applicable.
Our tips to help you improve your architectural Storm water chamber detailing.
