Side wall sprinkler mounting in architecture involves installing fire sprinklers on walls rather than ceilings, typically in spaces where ceiling-mounted sprinklers are impractical or aesthetically undesirable.
These sprinklers are positioned near the top of walls, close to the ceiling, and are designed to discharge water in a fan-shaped pattern to cover the intended area effectively.
Side wall sprinklers are commonly used in corridors, hotel rooms, offices, and residential buildings where obstructions, such as beams or decorative elements, might interfere with ceiling-mounted systems.
Proper mounting requires adherence to fire codes, ensuring appropriate distance from the ceiling and walls to optimize coverage and performance. Additionally, factors such as water pressure, spray direction, and room layout must be considered to enhance fire suppression efficiency.
If you want to know about the sump detail one or miscellaneous detail or water tank detail, please click the link.
Image of Side wall sprinkler mounting detail and downloadable (in DWG) link below

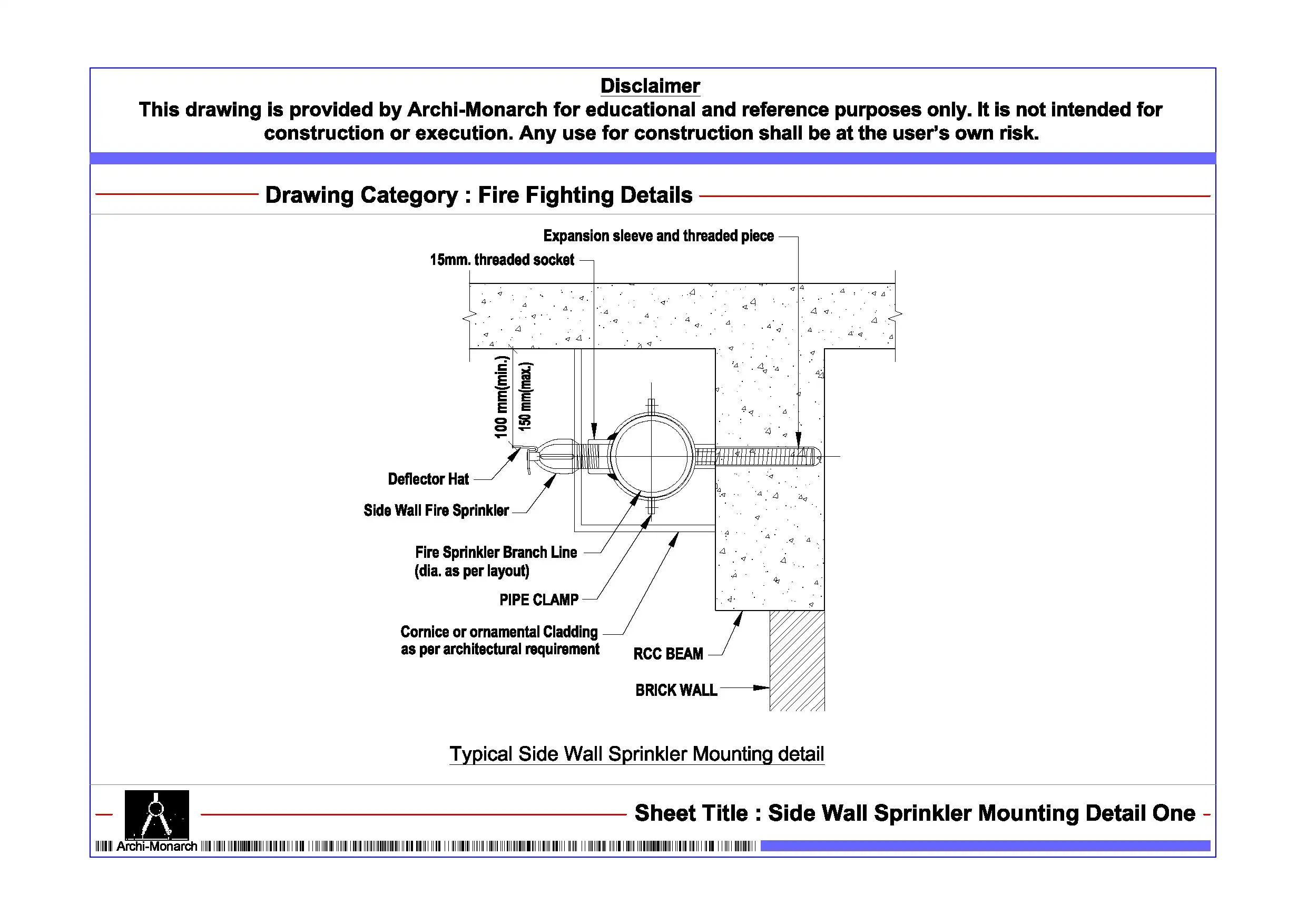

Side wall sprinkler mounting detail drawing – 1
A side wall sprinkler mounting detail drawing typically includes the following elements:
Sprinkler Head Placement – Shows the exact position of the side wall sprinkler relative to the ceiling and wall, usually mounted a few inches below the ceiling.
Pipe Connection – Displays the water supply pipe, typically running inside or behind the wall, with details on fittings and couplings.
Clearance Requirements – Specifies the required distances from the ceiling, walls, and any obstructions to ensure proper water distribution.
Spray Coverage Area – Indicates the range and spread of water discharge in a fan-shaped pattern to cover the designated fire protection area.
Mounting Bracket or Support – Details the type of bracket or fixture used to secure the sprinkler head in place.
Material Specifications – Notes the materials used for the sprinkler head, pipe, and fittings to ensure compliance with fire safety codes.
Our tips to help you improve your architectural Side wall sprinkler mounting detailing.
