In architecture, a shower is a designated space within a bathroom designed for personal hygiene, where water is sprayed over the body. Showers can vary greatly in design, ranging from simple enclosed spaces with a basic showerhead to luxurious, spa-like environments with multiple water outlets and advanced features.
Key architectural considerations for showers include layout and space efficiency, ensuring the area accommodates comfortable movement while fitting within the overall bathroom design.
Additionally, fixtures like rain showers, handheld sprayers, built-in niches for toiletries, and seating options add functionality and enhance the user experience. The selection of materials, lighting, and color schemes contributes to creating a cohesive and visually pleasing environment.
If you want to know about the kitchen detail or miscellaneous detail or water tank detail, please click the link.
Image of Shower detail and downloadable (in DWG) link below

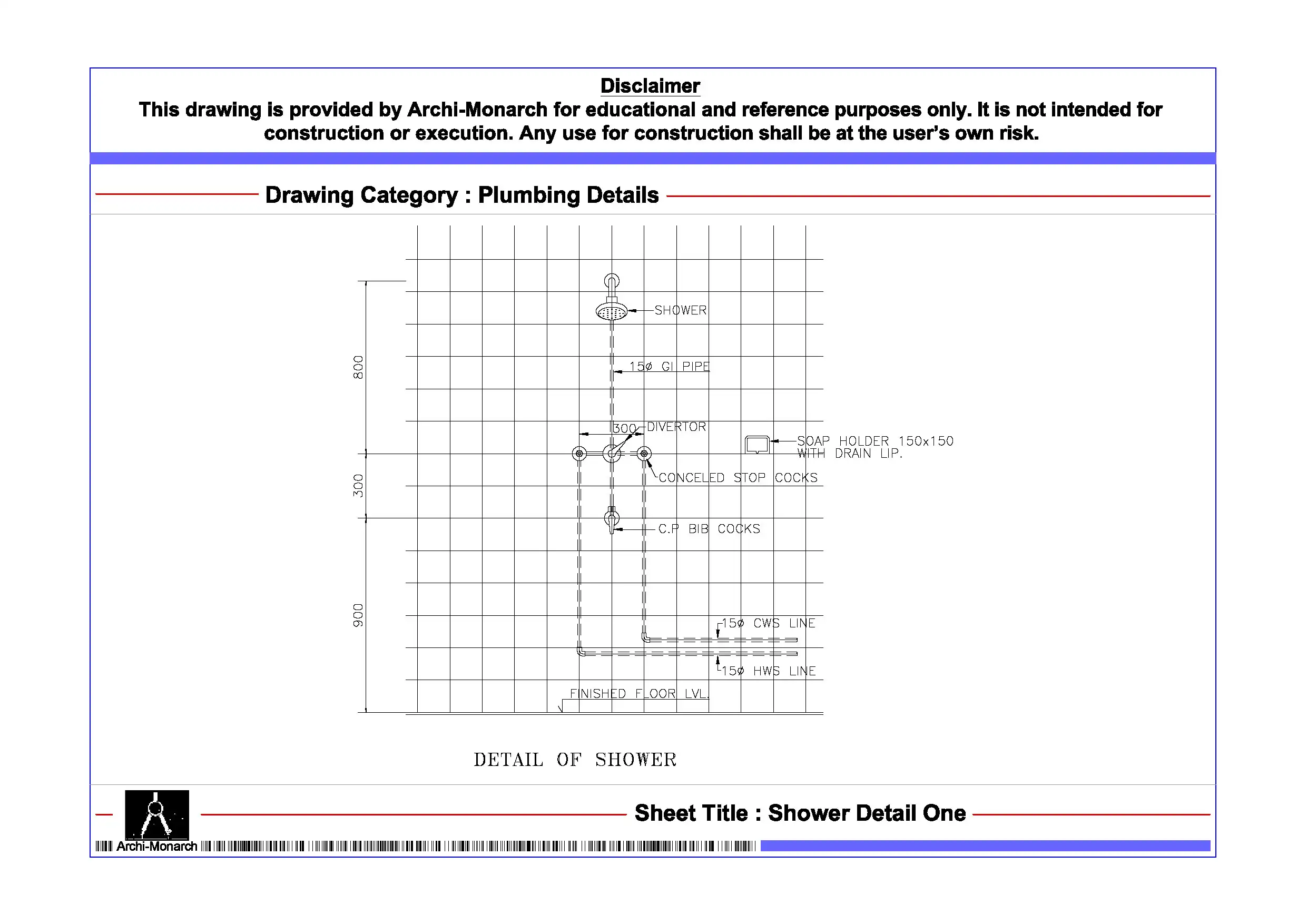

Shower detail drawing – 1
A shower detail drawing in construction is a technical drawing that illustrates the various components and layers involved in constructing a properly functioning shower. While I can’t show you an image, I can describe the key elements typically included in the drawing:
Floor Slope and Drainage:
- The shower floor is sloped toward the drain, typically at a rate of 1/4 inch per foot (2%) to ensure proper water flow.
- The drain assembly includes a strainer, waterproofing clamp ring, and connection to the plumbing waste line.
Shower Pan or Waterproof Membrane:
- Beneath the tile or finished surface, a waterproof membrane (e.g., PVC, CPE, or liquid-applied membrane) is applied to prevent leaks.
- The membrane extends up the walls by at least 6 inches and overlaps the drain flange to ensure a watertight seal.
Substrate and Backer Board:
- Behind the wall tiles, a cement backer board or water-resistant gypsum board is installed to provide structural support and prevent moisture damage.
- All seams and corners are sealed with waterproof tape and thin-set mortar.
Tile and Grout:
- Tiles are adhered to the backer board and floor with thin-set mortar.
- Grout lines are sealed to prevent water penetration, and caulking is applied at corners and transitions.
Shower Curb (Optional):
- A raised shower curb may be constructed at the entrance, made of wood (covered with waterproofing) or concrete, to keep water contained.
Fixtures and Accessories:
- Locations for the showerhead, mixer valve, and diverter are marked, ensuring alignment with wall tiles.
- Optional features like built-in niches, benches, and grab bars are indicated, with proper waterproofing details.
Ventilation:
- The drawing may include details for an exhaust fan or vent to prevent moisture buildup.
Each component is annotated with dimensions, materials, and construction notes to guide the builder.
Our tips to help you improve your architectural Shower detailing.
