In architecture and plumbing, pipe mounting details refer to the specific methods and components used to securely install and support piping systems in a building. These details ensure the stability, functionality, and longevity of the plumbing system while accommodating factors like thermal expansion, vibrations, and structural integrity.
Pipe mounting typically involves the use of pipe hangers, clamps, brackets, and supports that attach the pipes to walls, ceilings, or floors. The spacing between supports is determined by the pipe material and size to prevent sagging or stress. Additionally, provisions for insulation, waterproofing, and access for maintenance are often included.
Proper coordination with other building systems and adherence to local plumbing codes are crucial for ensuring safety, efficiency, and ease of installation.
If you want to know about the kitchen detail or staircase detail or water tank detail, please click the link above.
Image of Pipe mounting detail and downloadable (in DWG) link below

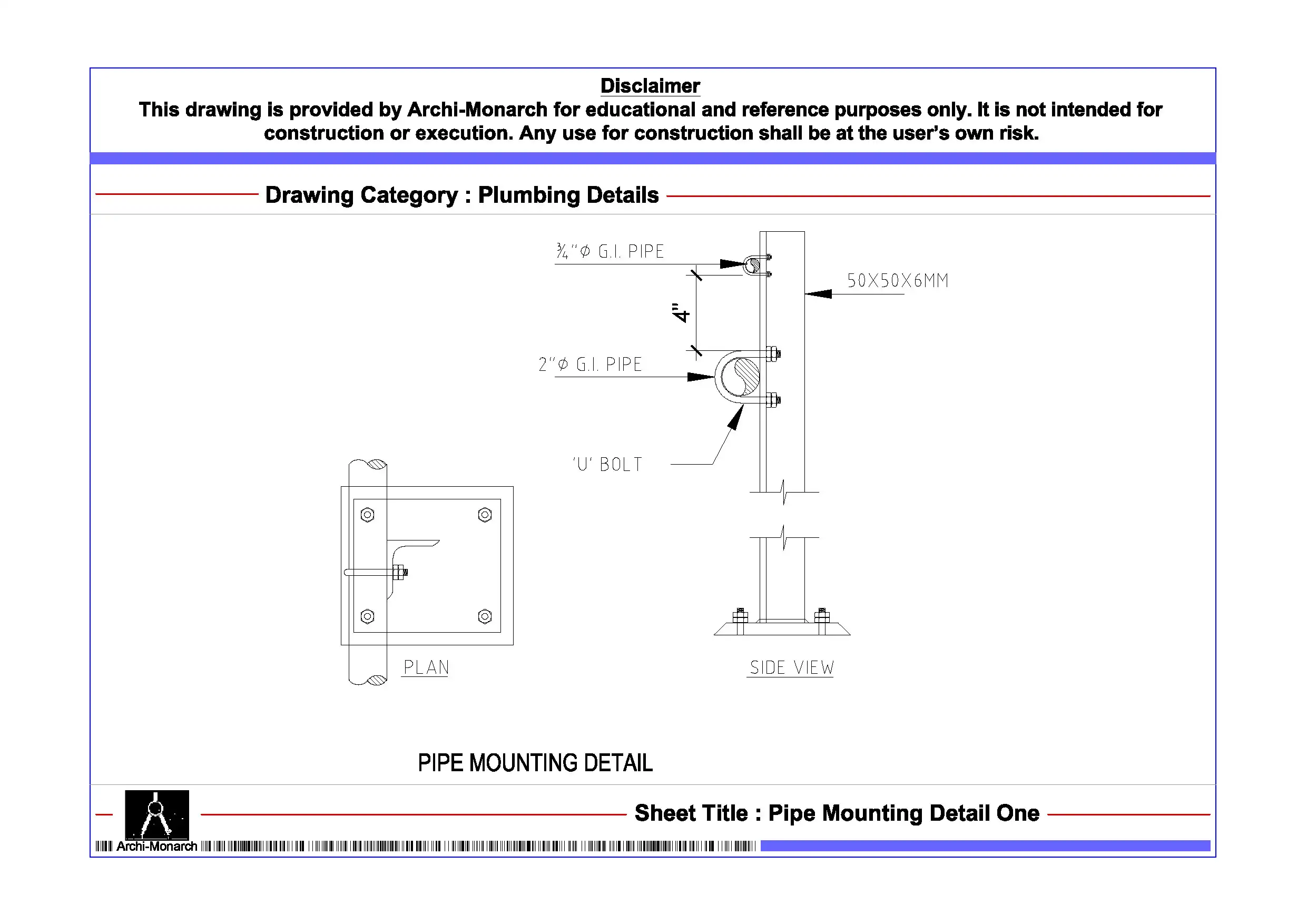

Pipe mounting detail drawing – 1
A pipe mounting detail drawing in construction is a technical illustration that shows how plumbing pipes are securely attached to building structures, such as walls, floors, or ceilings. It includes precise information about the types of supports, materials, and fastening methods used.
Key elements typically found in these drawings include:
- Pipe Supports: Hangers, brackets, clamps, or saddles that hold the pipe in place.
- Mounting Points: Locations where the supports are anchored to the building structure.
- Spacing and Alignment: Distances between supports, ensuring proper load distribution and preventing sagging.
- Insulation and Protection: Details about insulation materials, protective coatings, or sleeves to prevent heat loss, condensation, or corrosion.
- Allowance for Expansion and Contraction: Expansion joints or flexible couplings to account for thermal movement.
- Section Views and Dimensions: Cross-sectional views, pipe diameters, support sizes, and mounting heights from the finished floor or ceiling.
- Annotations and Specifications: Notes indicating material types, installation guidelines, and references to relevant plumbing codes or standards.
Our tips to help you improve your architectural Pipe mounting detailing.
