PERGOLA DETAIL TWO

A pergola is a garden feature consisting of an open-framed structure, usually made of wood or metal, that supports climbing plants. It can be used to define a space or walkway, or as a shaded area for outdoor living.

Pergolas can be freestanding or attached to a building, and they can be designed in a variety of styles to complement the architecture of the surrounding area.

Additional details that may be included in a pergola design include:

  • Roofing options: Some pergolas may have a solid roof made of materials such as shingles or metal, while others may have a lattice or partial roof for partial shade.
  • Lighting: Built-in lighting, such as lanterns or string lights, can be added to a pergola to create a more inviting atmosphere in the evening.
  • Seating: Built-in seating, such as benches or swings, can be incorporated into a pergola design to create a comfortable and functional outdoor living space.
  • Decorative accents: A pergola can be decorated with various elements such as trim, molding, or carvings to add visual interest and character.
  • Material options: Pergolas can be constructed using a variety of materials, including wood, metal, vinyl, and composite materials, each with its own unique aesthetic and maintenance requirements.

If you want to know about the interior detail or miscellaneous detail or water tank detail, please click the link.

Image of pergola detail and downloadable (in DWG) link below

PERGOLA DETAIL TWO

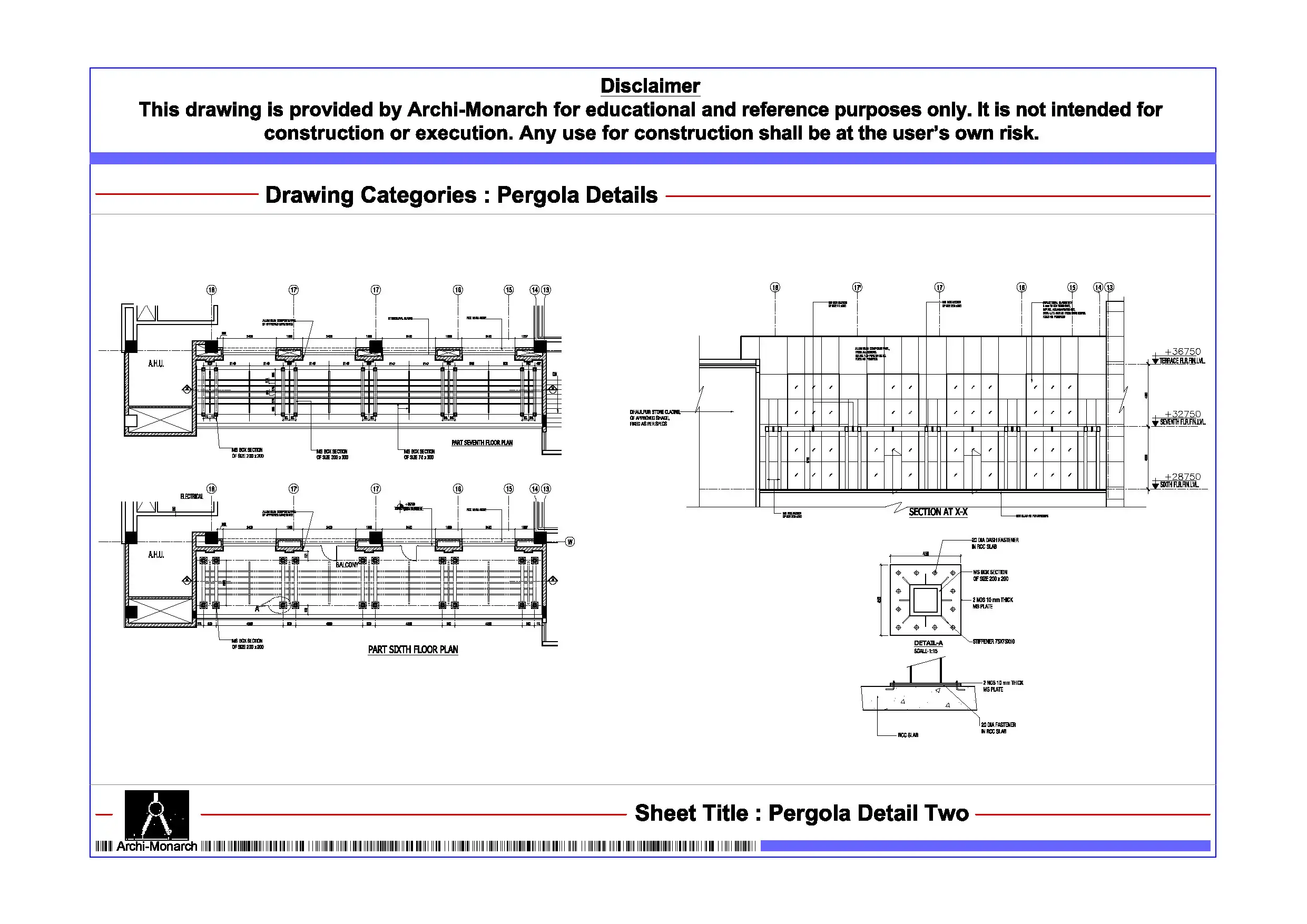

Pergolas detail drawing – 1

A pergolas detail drawing is a technical illustration that shows the specific construction details of a pergola, including the materials, dimensions, and connections.

It is used by builders, architects, and engineers to understand how the pergola is to be built and to ensure that all parts fit together correctly.

A typical pergolas detail drawing will include:

  • A detailed plan view, showing the overall layout of the pergola, including the location of posts, beams, rafters, and any other structural elements.
  • Elevation views, showing the height and shape of the pergola from different angles.
  • Cross-sections, which show how the different parts of the pergola fit together, including how the posts are anchored to the ground and how the beams and rafters are connected.
  • Details, such as how the rafters are attached to the beams and how the climbing plants will be trained on the structure.

It’s important that pergolas detail drawing shows all the necessary information for the construction, including the type of wood, size and spacing of the members, fasteners, etc.


Our tips to help you improve your architectural pergola detailing.



Purchase (Pergola detail) link below for download
