Gola Detail One

Description

The Gola Detail provides a professionally prepared architectural standard drawing set in DWG format for educational and reference purposes. A gola is a concave or rounded edge detail commonly used at junctions between walls, floors, ceilings, or waterproofing layers. It plays a crucial role in improving durability, preventing cracks, and enhancing the overall finish quality of surfaces. Designers must carefully plan gola detailing to ensure smooth transitions, proper finishing, and long-term performance. Therefore, architecture students and drafting professionals must understand gola detailing to create durable and visually refined construction joints.

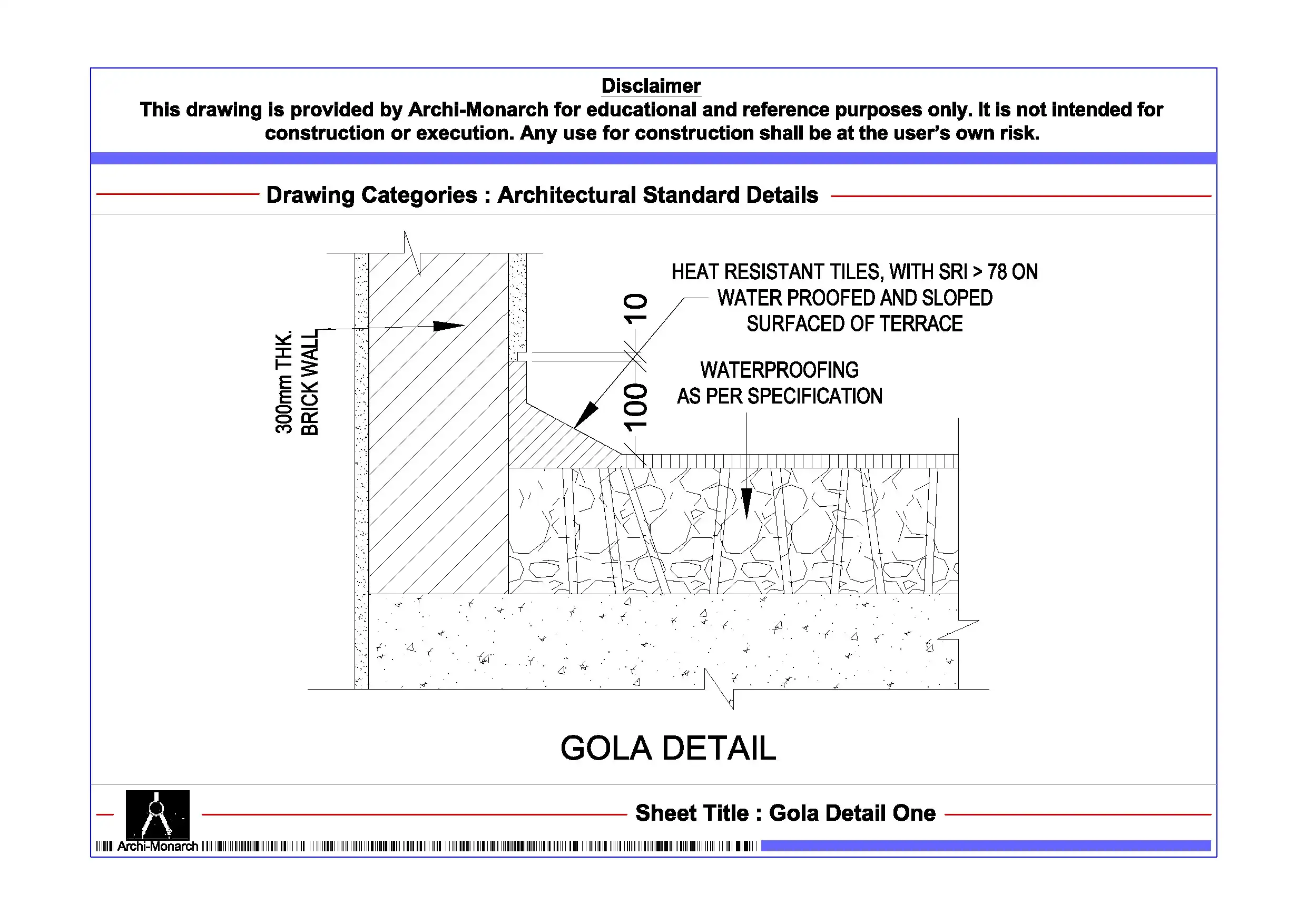

This architectural CAD package clearly presents gola design through detailed drawings. It includes sectional details and construction-specific information in a structured and coordinated format. The drawing set explains gola dimensions, radius formation, and positioning at junctions such as wall-to-floor, wall-to-wall, or wall-to-ceiling intersections. It also highlights key components such as base materials, plaster or mortar buildup, waterproofing layers (where applicable), and finishing treatments. In addition, it covers joint preparation, edge finishing, and material transitions that help prevent sharp corners, reduce stress concentration, and improve maintenance efficiency. As a result, users gain practical insight into designing gola profiles that enhance durability, hygiene, and aesthetic continuity.

Moreover, the drawings follow professional architectural and drafting standards. They use accurate dimensions, clear line hierarchy, and well-organized annotations. Consequently, students can easily interpret the drawings and apply similar detailing techniques in academic projects and CAD exercises. Users can edit the files freely to modify gola sizes, adjust radii, or refine detailing to suit different materials and design requirements.

The DWG format ensures seamless compatibility with AutoCAD and other commonly used CAD software. Therefore, users can directly integrate these drawings into project workflows, presentations, and documentation sets without additional conversion. In addition, the drawing set supports coordination between finishing systems, waterproofing layers, and structural elements, which improves drafting clarity and technical accuracy.

Key Highlights:

• Gola detail drawing in DWG format
• Intended strictly for educational and reference use
• Includes sectional and construction details
• Shows gola radius, junction formation, and edge finishing
• Covers plastering, waterproofing integration, and material transitions
• Prepared using professional architectural and drafting standards
• Fully editable and AutoCAD-compatible CAD files
• Suitable for architecture students and drafting learners

This drawing set does not serve as a construction-ready document. Always consult qualified architects and engineers before applying any detail in real projects.
