A conical manhole in architecture refers to a type of manhole structure that features a cone-shaped top section, designed to provide a gradual transition between the larger diameter of the manhole shaft and the smaller opening at the surface.
This design enhances structural stability by distributing loads more efficiently and reducing the potential for soil movement or collapse. Conical manholes are commonly used in sewer systems, drainage networks, and utility tunnels, offering easier access for maintenance while minimizing the surface footprint.
The sloped walls of the cone help direct water flow and can accommodate various pipe connections, making them a versatile and durable solution in infrastructure projects.
If you want to know about the interior detail or ramp detail or landscape detail, please click the link.
Image of Conical manhole detail and downloadable (in DWG) link below

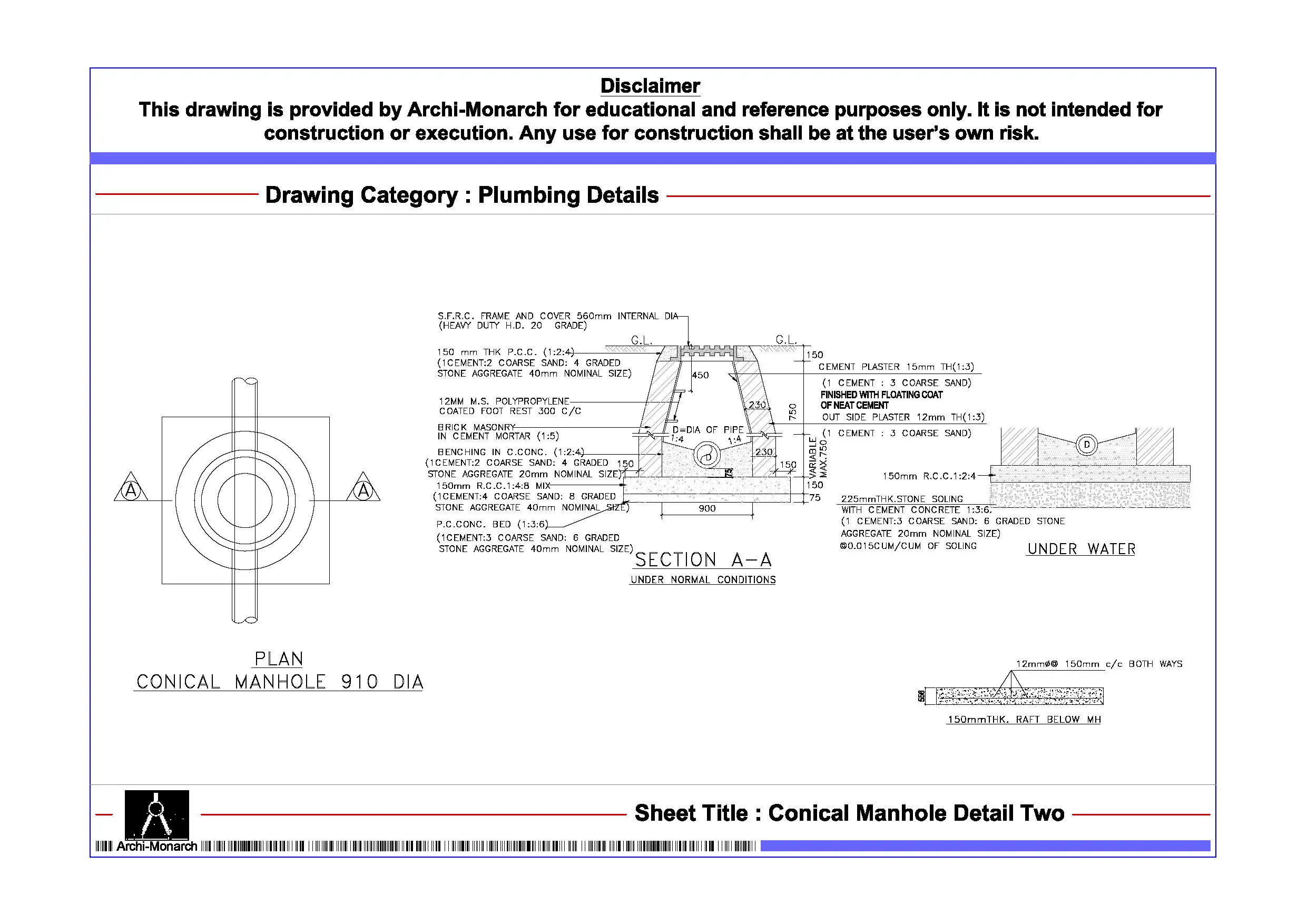

Conical manhole detail drawing – 2
A conical manhole in construction consists of several key components, each serving a specific purpose to ensure functionality and structural integrity. Starting from the bottom, the base slab provides a solid foundation, typically made of reinforced concrete to support the load.
Above this is the invert channel, which directs the flow of wastewater or stormwater and is carefully sloped to maintain proper drainage. The manhole shaft rises vertically from the base and is usually constructed with precast concrete rings or brickwork, forming the main body of the structure.
As the shaft approaches the surface, it transitions into the conical section — a sloped, tapering structure that reduces the diameter of the manhole to accommodate the access opening. This conical section provides structural stability by evenly distributing loads from above while narrowing the opening for safety and accessibility.
At the top, the corbel or reducing slab further supports the frame and cover, which seals the manhole, preventing unauthorized access and ensuring surface-level stability. Ventilation holes may be incorporated for airflow, depending on the system’s needs. Proper detailing ensures durability, ease of maintenance, and long-term performance.
Our tips to help you improve your architectural Conical manhole detailing.
