Column strengthening is a crucial technique in architecture and structural engineering, aimed at enhancing the load-bearing capacity and durability of existing columns. This process becomes necessary when structures are subjected to increased loads, seismic upgrades, or deterioration over time.
Various methods are employed, including jacketing (using concrete, steel, or fiber-reinforced polymers), section enlargement, and external post-tensioning. These methods help improve the column’s stiffness, ductility, and resistance to buckling or shear failure.
Strengthening ensures that buildings remain safe, functional, and compliant with updated building codes, extending their service life and preserving structural integrity.
If you want to know about the kitchen detail or miscellaneous detail or water tank detail, please click the link.
Image of Column strengthen detail and downloadable (in DWG) link below

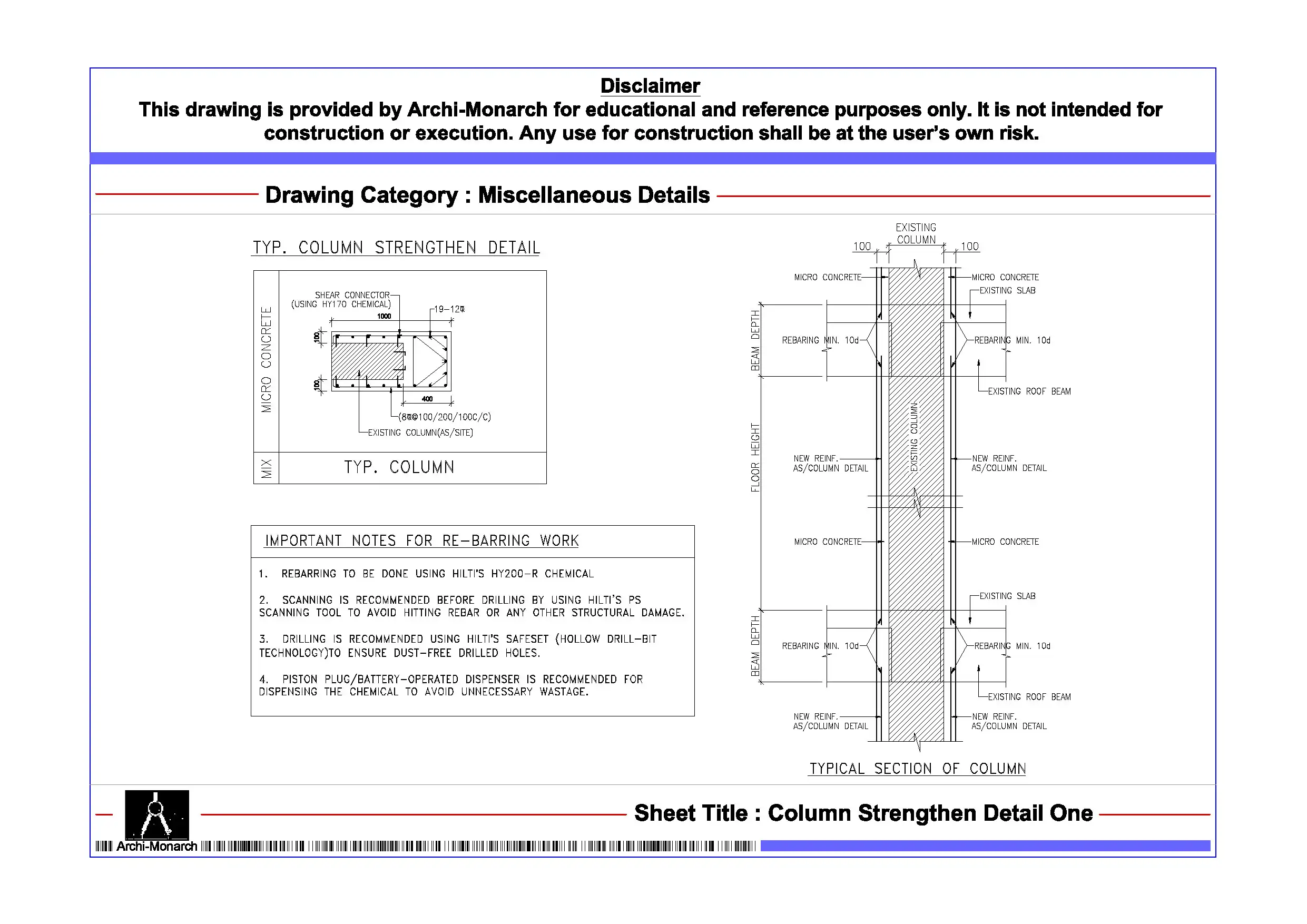

Column strengthen detail drawing – 1
In construction, column strengthening detail drawings are critical for accurately communicating how existing structural columns will be reinforced to meet updated load demands, seismic requirements, or to address material degradation.
These drawings are typically prepared by structural engineers and include comprehensive specifications such as the type of strengthening method, materials used, reinforcement bar sizes and spacing, anchorage details, and connection interfaces with beams, slabs, or foundations.
Common strengthening techniques featured in these drawings include concrete jacketing, where additional reinforced concrete is added around the column; steel jacketing, using steel plates or angles bolted or welded around the column; and fiber-reinforced polymer (FRP) wrapping, where high-strength composite materials are applied to improve confinement and shear capacity.
The drawings also highlight construction sequencing, such as surface preparation of the original column, installation of additional reinforcement, application of bonding agents, and curing processes.
Detailed sections and elevations show how the new materials integrate with the existing column, often including load transfer mechanisms, drilling for dowels, or post-installed anchors. Additionally, notes may specify tolerance limits, material properties, and inspection requirements.
These details are essential not only for proper on-site implementation but also for maintaining structural integrity, ensuring worker safety, and achieving compliance with modern building codes and standards. Well-prepared detail drawings minimize errors, streamline construction, and ensure the effectiveness of the strengthening solution.
Our tips to help you improve your architectural Column strengthen detailing.
