A basketball court in architecture is a designated space designed specifically for the sport of basketball, typically characterized by precise dimensions and clear zoning. Standard courts measure 28 by 15 meters for professional play and include key elements such as the playing area, free throw lanes, three-point lines, and center circle.
In architectural design, the court must also account for flooring materials—usually hardwood for indoor courts—adequate ceiling height, lighting, ventilation, and seating arrangements for spectators.
Modern basketball court architecture often integrates the space into multi-purpose sports complexes or community centers, blending functionality with aesthetic appeal to create an environment conducive to both athletic performance and audience engagement.
If you want to know about the submission drawing or miscellaneous detail or interior detail, please click the link.
Image of Basketball court detail and downloadable (in DWG) link below

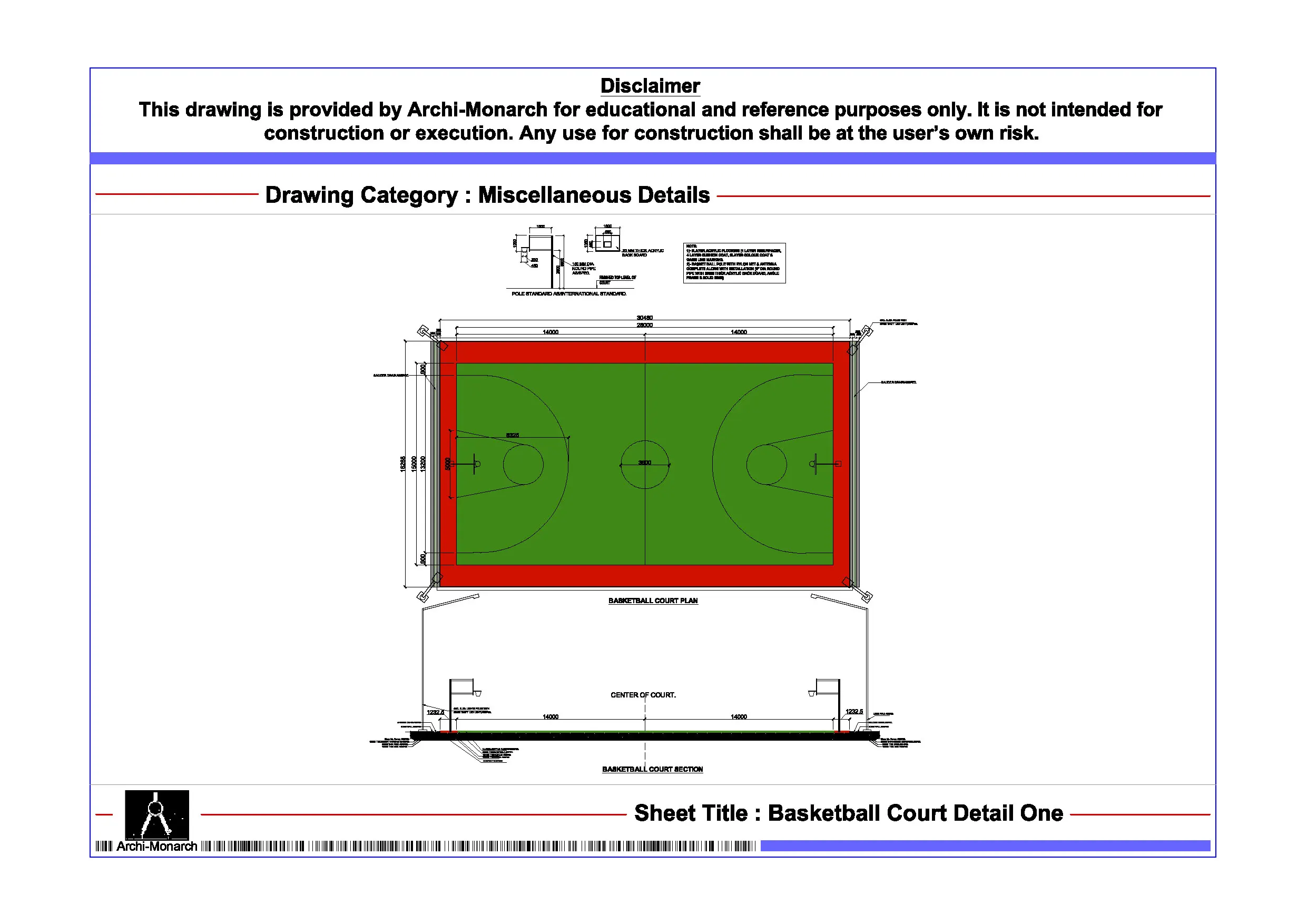

Basketball court detail drawing – 1
In construction, a basketball court detail drawing provides a precise and scaled representation of all the elements required to build a functional and regulation-compliant court.
These drawings typically include:
- Court Dimensions: Standard dimensions (28m x 15m for FIBA, 94ft x 50ft for NBA), clearly marked with boundary lines, center circle, three-point arc, free throw lane (key), and restricted area.
- Surface Layers: Cross-sections showing layers of flooring—from the sub-base (concrete or asphalt) to the finished surface (often hardwood, synthetic, or rubber).
- Markings and Striping: Detailed plans for painted lines with exact measurements and color specifications for boundaries, center circle, three-point lines, free-throw line, and team bench areas.
- Basketball Hoop and Backboard Details: Drawings showing mounting systems, pole placement, rim height (10 feet or 3.05 meters), backboard size, and anchoring systems.
- Lighting Layout: Positioning and height of light poles or ceiling-mounted lights for even illumination, especially in indoor courts.
- Drainage and Ventilation (for outdoor courts): Grading, slope, and drainage details to prevent water accumulation, and airflow considerations to maintain surface quality.
- Safety Zones: Buffer spaces around the court (typically 2m minimum) for player safety.
- Material Specifications: Notes on materials to be used for flooring, paints, hoops, etc.
These construction drawings are essential for ensuring the court is safe, functional, and meets international or local standards.
