A base plate is a steel plate used as the base of a column or post in a building structure. It is typically anchored to the foundation and connected to the column or post using bolts.
The base plate serves to distribute the load of the structure to the foundation, and also helps to align the column or post.
Base plate details usually include information on the size and thickness of the plate, the size and spacing of the anchor bolts, and the type of connection between the plate and the column or post.
Image of base plate detail and downloadable (in DWG) link below

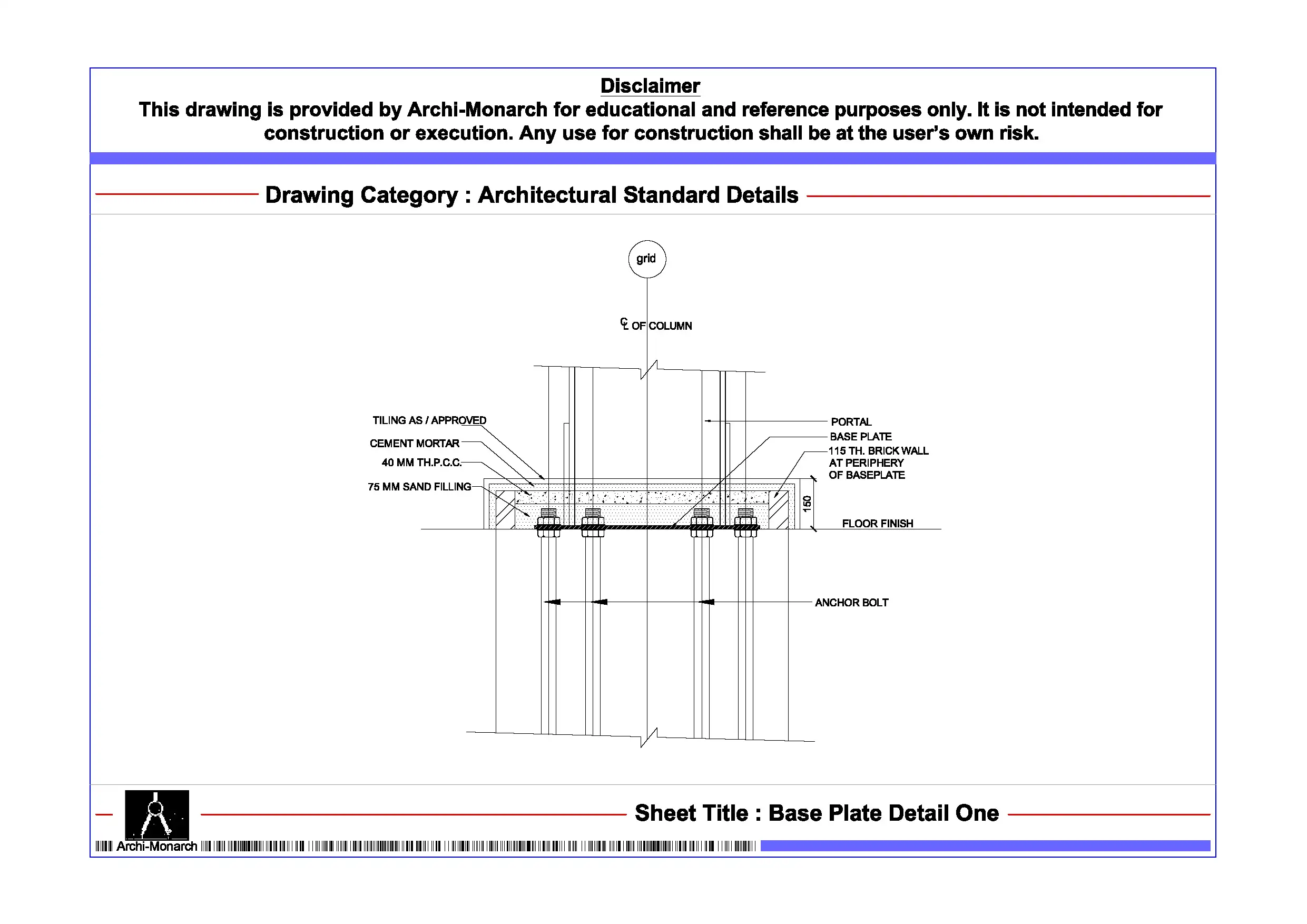

Baseplate detail drawing – 1
A baseplate detail drawing is a technical drawing that provides specific information on the design and construction of a baseplate. The drawing typically includes dimensions, materials, and other information necessary to properly fabricate and install the baseplate. It will often show the layout of the anchor bolts, including their size, spacing, and orientation.
It will also show the connection details between the baseplate and the column or post, including any required holes or slots. Additionally, the drawing may include information on the load capacity of the baseplate and the allowable tolerances for the installation.
Overall, the baseplate detail drawing is an important document that provides the necessary information for the engineer, fabricator, and construction team to construct the base plate correctly and safely.
Overall, the baseplate detail drawing is an important document that provides the necessary information to construct the base plate correctly and safely. It should be developed by a professional engineer and reviewed by all parties involved in the construction process to ensure that the base plate is built according to the design intent and the safety standards.
