In architecture, the AC sleeve and outdoor unit play crucial roles in the installation and functionality of air conditioning systems. The AC sleeve is a built-in wall opening, often reinforced with metal or plastic, designed to house a through-the-wall air conditioning unit.
It provides structural support, ensures proper ventilation, and prevents water infiltration, enhancing the system’s efficiency and longevity. On the other hand, the outdoor unit, commonly associated with split air conditioning systems, contains essential components such as the compressor, condenser coil, and fan.
It is placed outside the building to dissipate heat absorbed from indoor spaces. Proper placement and ventilation of the outdoor unit are vital for optimal cooling performance, energy efficiency, and noise reduction, making them key considerations in architectural design and planning.
If you want to know about the sump detail one or miscellaneous detail or water tank detail, please click the link.
Image of AC sleeve and outdoor unit detail and downloadable (in DWG) link below

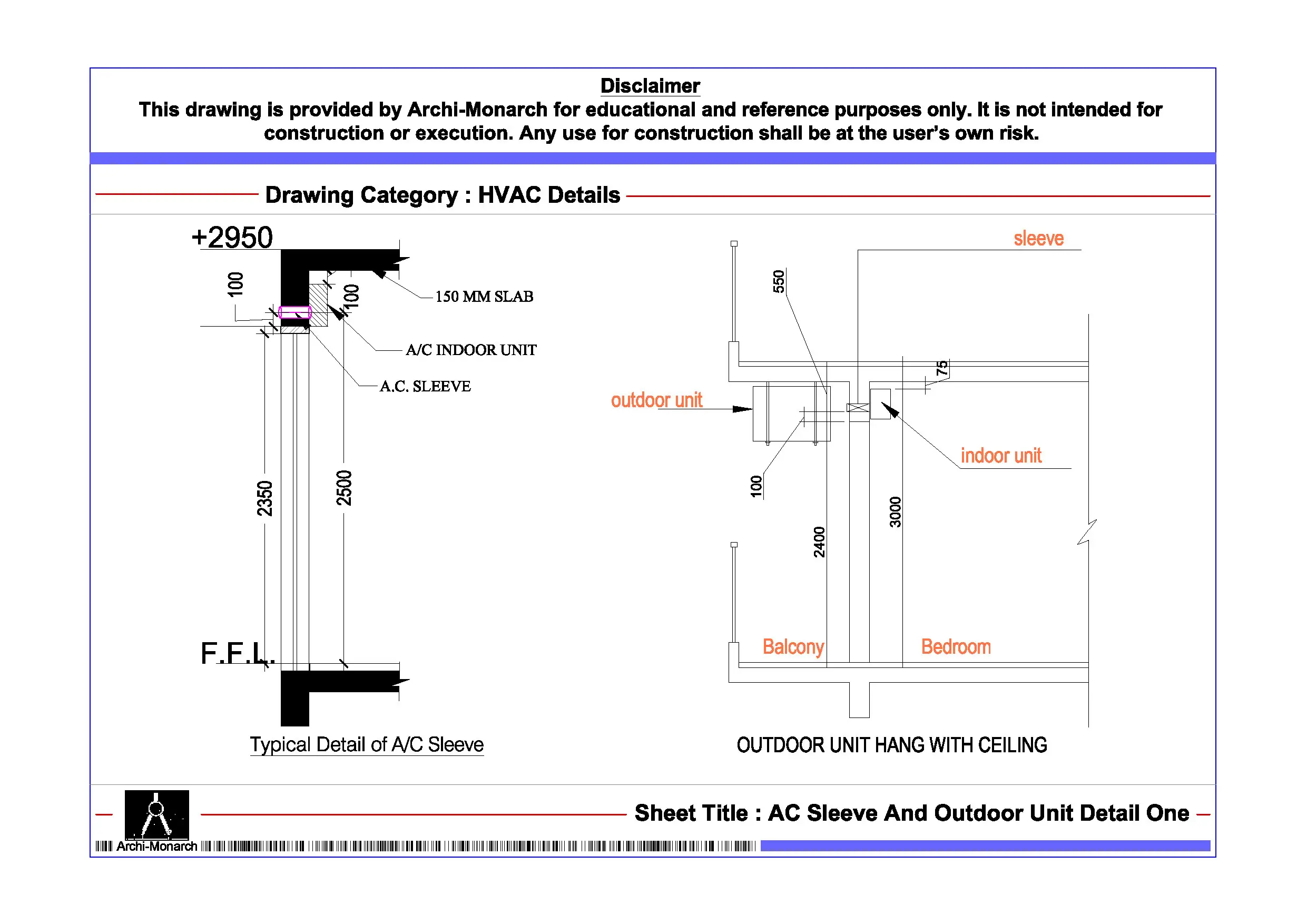

AC sleeve and outdoor unit detail drawing – 1
An AC sleeve and outdoor unit detail drawing in construction typically includes dimensions, materials, installation guidelines, ventilation clearances, drainage, and mounting details.
Here’s how each component is usually represented in architectural and MEP (Mechanical, Electrical, Plumbing) drawings:
AC Sleeve Detail Drawing
- Material: Often metal or reinforced plastic.
- Dimensions: Sized based on the AC unit, ensuring a snug fit.
- Wall Opening: Indicated with structural reinforcement details.
- Ventilation & Drainage: Includes air gaps or vents to prevent overheating and condensation drainage details.
- Fixing & Sealing: Caulking or flashing to prevent water infiltration.
Outdoor Unit Detail Drawing
- Placement & Mounting: Wall-mounted brackets, ground pads, or rooftop installation with vibration isolators.
- Clearances: Proper airflow space (e.g., 12–24 inches from walls and at least 6 feet clearance above).
- Drainage: Condensate drain pipe routing.
- Electrical & Refrigerant Line Routing: Conduit pathways for power and refrigerant lines to the indoor unit.
- Weather Protection: Screens, louvers, or shading for efficiency.
Our tips to help you improve your architectural AC sleeve and outdoor unit detailing.
