Window grill design in architecture serves both functional and aesthetic purposes, enhancing security while contributing to the overall visual appeal of a building. Traditionally made from materials such as wrought iron, steel, or aluminum, window grills are designed to prevent unauthorized access without obstructing ventilation or natural light.
Over time, the designs have evolved from simple bars to intricate patterns inspired by cultural motifs, geometric shapes, or modern minimalist styles. In addition to providing safety, window grills can reflect the character of the architecture, whether it’s the ornate detailing of classical homes or the sleek lines of contemporary structures.
With advancements in technology and materials, today’s window grill designs offer a balance of durability, beauty, and customization to suit various architectural themes.
If you want to know about the staircase detail or toilet detail or miscellaneous detail, please click the link.
Image of Window grill design detail and downloadable (in DWG) link below

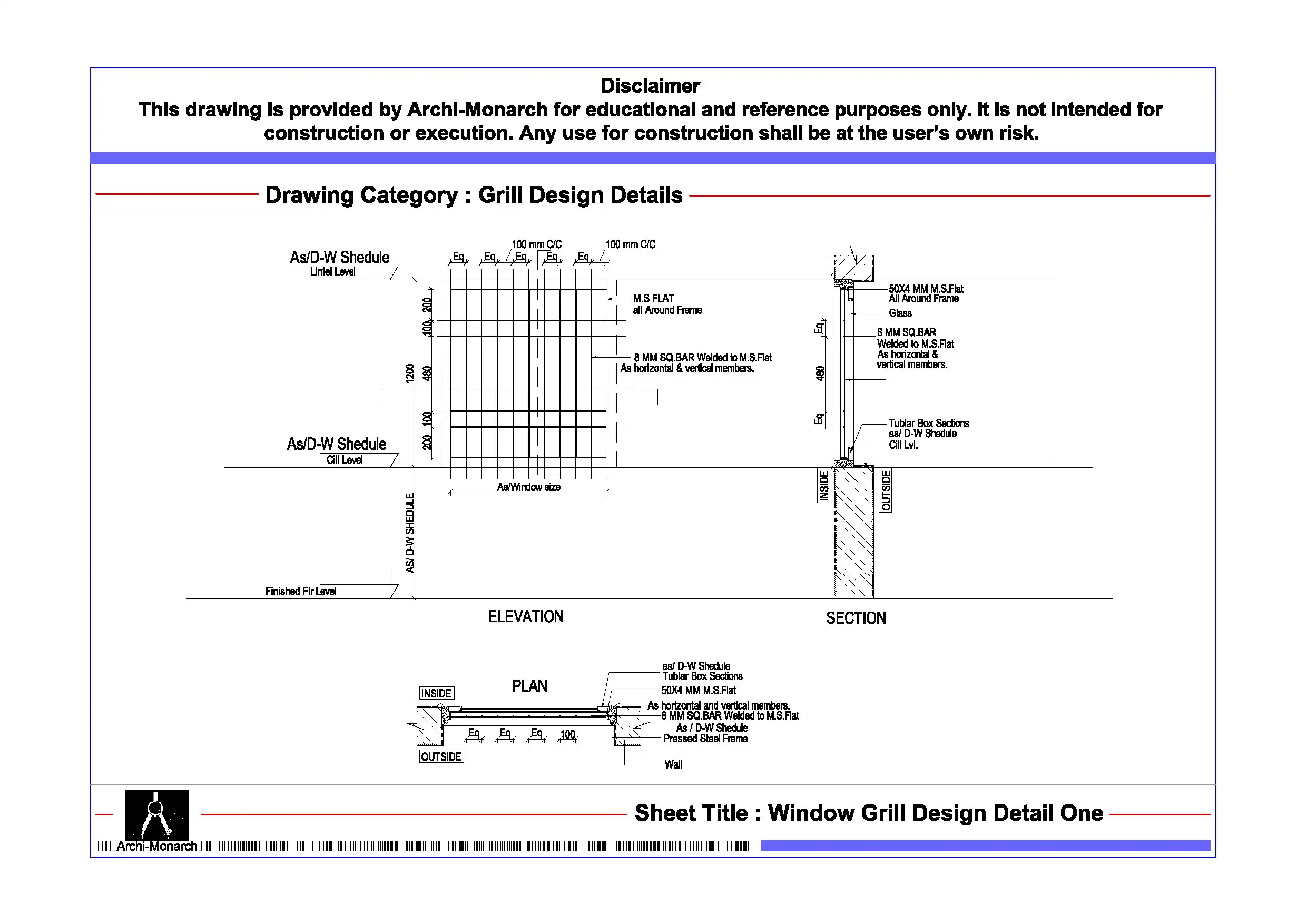

Window grill design detail drawing – 1
In construction, a window grill design detail drawing is a precise technical representation that illustrates the specifications and installation method of the window grill. These drawings are part of the architectural or structural detailing set and are essential for fabricators, contractors, and installers.
A typical window grill detail drawing includes dimensions, material specifications (such as mild steel, stainless steel, or aluminum), bar thickness, spacing between bars, welding or fixing methods, and anchoring details to the window frame or wall.
It may also show front, side, and sectional views to convey how the grill is integrated into the building envelope. Additionally, the drawing may include aesthetic details such as ornamental patterns or motifs, especially for decorative grills.
Accurate window grill detail drawings help ensure structural integrity, safety, and alignment with the architectural intent, while also aiding in cost estimation and quality control during construction.
Our tips to help you improve your architectural Window grill design detailing.
