Wall sprinkler mounting in architecture refers to the installation of fire sprinkler heads directly onto or within walls, rather than on ceilings. This method is often used in spaces with aesthetic or structural constraints that limit ceiling installations, such as exposed beam ceilings, decorative soffits, or low-clearance areas.
Wall-mounted sprinklers are designed to discharge water in a specific horizontal or angled spray pattern to ensure effective coverage of the protected area.
Proper placement and orientation are crucial to maintain compliance with fire safety codes and to ensure optimal performance.
Architects and engineers must coordinate closely with fire protection specialists to integrate wall-mounted sprinkler systems seamlessly into the building’s design, balancing safety, functionality, and visual impact.
If you want to know about the submission drawing or miscellaneous detail or interior detail, please click the link.
Image of Wall sprinkler mounting detail and downloadable (in DWG) link below

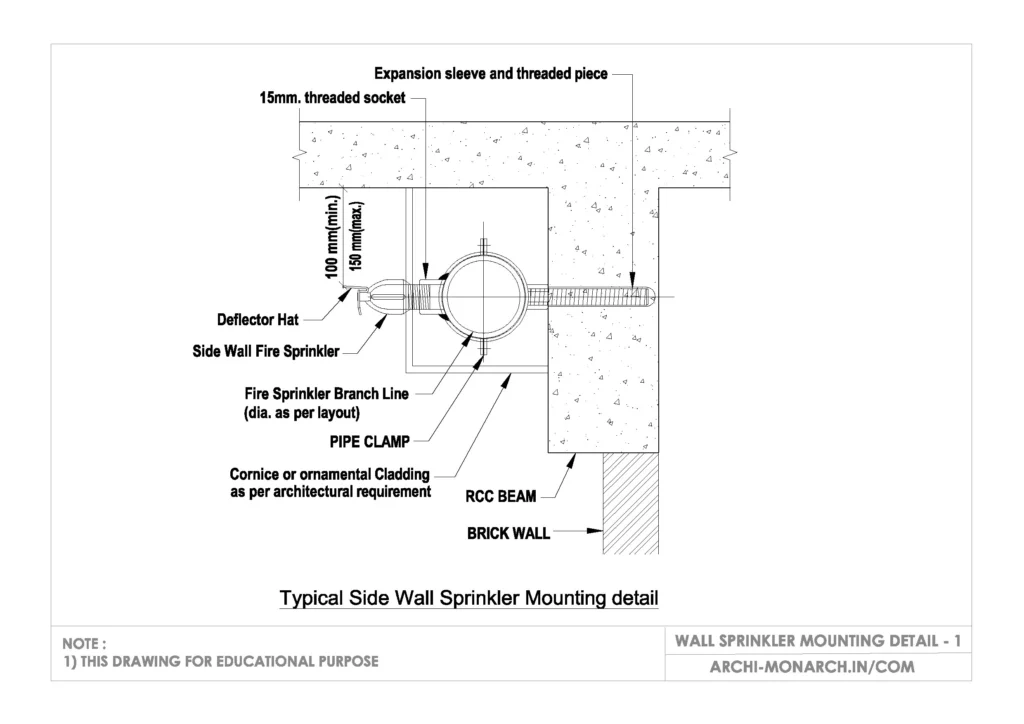

Wall sprinkler mounting detail drawing – 1
In construction, a wall sprinkler mounting detail drawing provides precise technical information on how a wall-mounted fire sprinkler is installed within a building. This drawing is an essential part of the fire protection design and is typically included in architectural and MEP (Mechanical, Electrical, and Plumbing) plans.
The detail drawing usually includes:
- Mounting Height: Indicates the correct vertical placement of the sprinkler head on the wall, often based on NFPA (National Fire Protection Association) standards.
- Clearance Requirements: Shows required distances from ceilings, walls, and obstructions like beams or light fixtures.
- Wall Penetration Detail: Depicts how the pipe enters the wall, including insulation, firestop systems, and any required sleeves or escutcheons.
- Sprinkler Head Type: Specifies whether the head is concealed, semi-recessed, or exposed, and the direction of discharge.
- Pipe Connection: Details the connection between the branch line and the sprinkler head, often including elbow joints or drop nipples.
- Mounting Bracket: Shows how the sprinkler is secured to the structure, including types of brackets or supports used behind the wall.
- Finishing Detail: Indicates how the sprinkler aligns with the finished wall surface, including trim and cover plate alignment.
These drawings ensure correct installation, fire code compliance, and coordination with architectural finishes.
