Architectural fencing refers to the design and construction of fences for aesthetic and functional purposes in the architecture of a building or landscape.
The details of an architectural fence will depend on the specific design and purpose of the fence. Some common elements of an architectural fence include the materials used, the height and width of the fence, any gates or openings, and any decorative features or finishes.
It is important to carefully consider all of these elements when designing an architectural fence to ensure that it meets the needs of the project and complements the surrounding architecture.
Image of fencing detail and downloadable (in DWG) link below

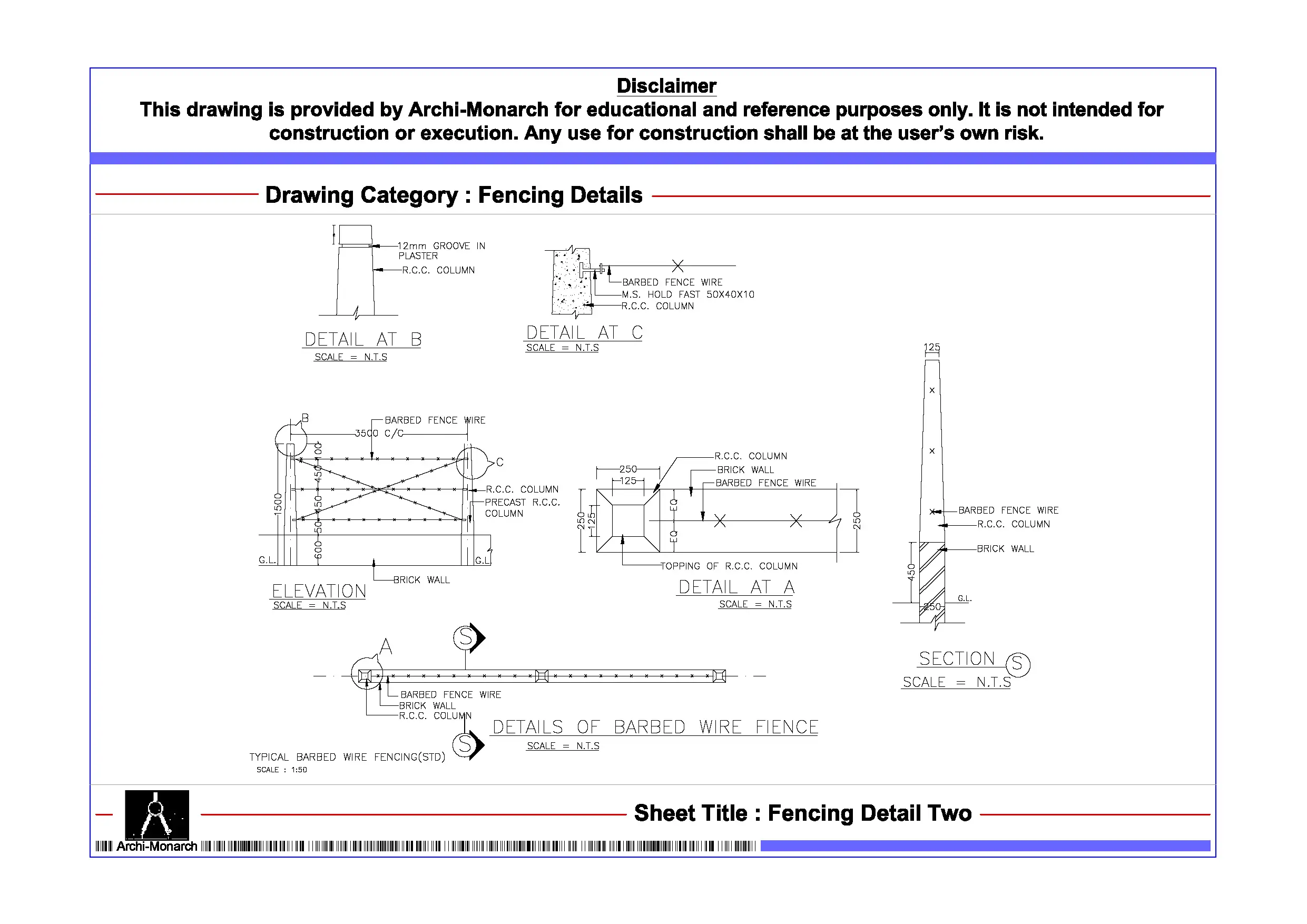

Fencing detail drawing – 2
A fencing detail drawing is a technical drawing that provides detailed information about the construction of a fence. It typically includes a plan view of the fence, as well as elevations and sections that show the different components of the fence in detail.
The drawing may also include details about the materials used, the dimensions of the various parts of the fence, and any special features or finishes. Fencing detail drawings are used by contractors and other construction professionals to build the fence according to the specified design.
They are an important part of the construction process, as they provide clear and accurate information about how the fence should be built.
Here are a few more things that might be included in a fencing detail drawing:
- Anchoring and foundation details: information about how the fence is anchored to the ground and what type of foundation is used
- Connection details: details about how the different parts of the fence are connected together
- Fastening details: information about how the fence is secured to the posts and other parts of the fence
- Finish details: details about any special finishes or coatings applied to the fence, such as paint or stain
- Gate details: information about any gates included in the fence, including their size, construction, and operation
- Accessory details: details about any additional features or accessories that are part of the fence, such as lighting or signage
- Drainage details: information about how water is managed around the fence to prevent damage or erosion
It’s important to include as much detail as possible in the fencing detail drawing to ensure that the fence is built correctly and meets the design intent.
Our tips to help you improve your architectural fencing detailing.
