Connecting Canopy Detail One

Description

The Connecting Canopy Detail is a professionally drafted architectural drawing provided in DWG format for educational and reference purposes. Canopies often connect building blocks, entrances, or circulation spaces. Therefore, understanding their structural connection and architectural detailing is essential for students and early-stage designers.

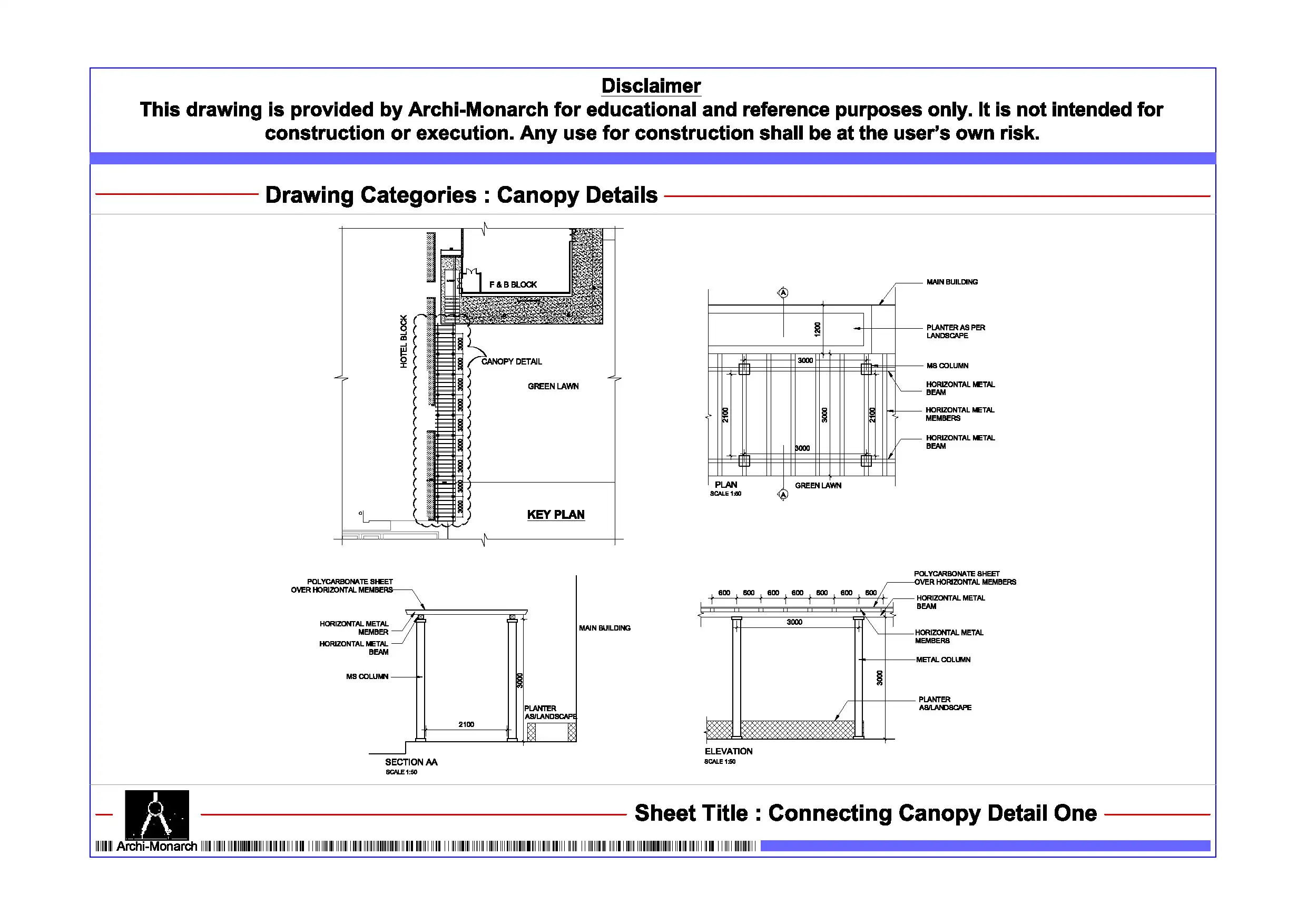

This architectural drawing clearly illustrates how a canopy connects to a main structure. It shows key elements such as canopy framing members, support brackets, anchor bolts, slabs or beams, and junction points with the building façade. In addition, the detail explains alignment, slope, and load transfer logic, which helps learners understand functional and safety considerations. As a result, users gain practical insight into canopy connection design rather than relying only on theoretical references.

Moreover, the drawing follows standard architectural drafting conventions. It uses clean line weights, accurate dimensions, and clearly labeled annotations to improve clarity. Consequently, students can easily interpret the drawing and use it as a reference while preparing academic submissions or design studio work. Because the file remains fully editable, users can adjust dimensions, materials, or fixing methods to explore different design options.

The DWG format ensures compatibility with AutoCAD and other commonly used CAD software. Therefore, users can seamlessly integrate this drawing into their digital workflow. In addition, the detail supports coordination between architectural design, façade treatment, and construction logic, which strengthens technical understanding.

Key Highlights:

• Architectural connecting canopy drawing in DWG format
• Intended strictly for educational and reference use
• Shows canopy-to-building connection and fixing details
• Prepared using professional architectural drafting standards
• Fully editable and AutoCAD-compatible CAD file
• Suitable for architecture students and beginner designers
• Useful for entrance canopy and façade connection studies

This drawing does not represent a construction-ready document. Always consult qualified professionals before implementing any canopy design on site.

Overall, this digital drawing serves as a valuable learning resource. It improves understanding of canopy connection detailing while enhancing architectural drafting and documentation skills.
